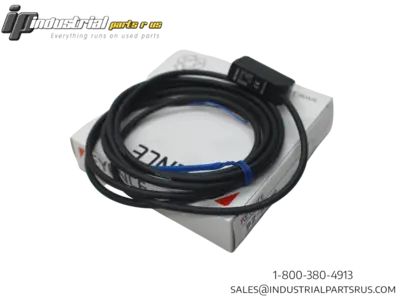

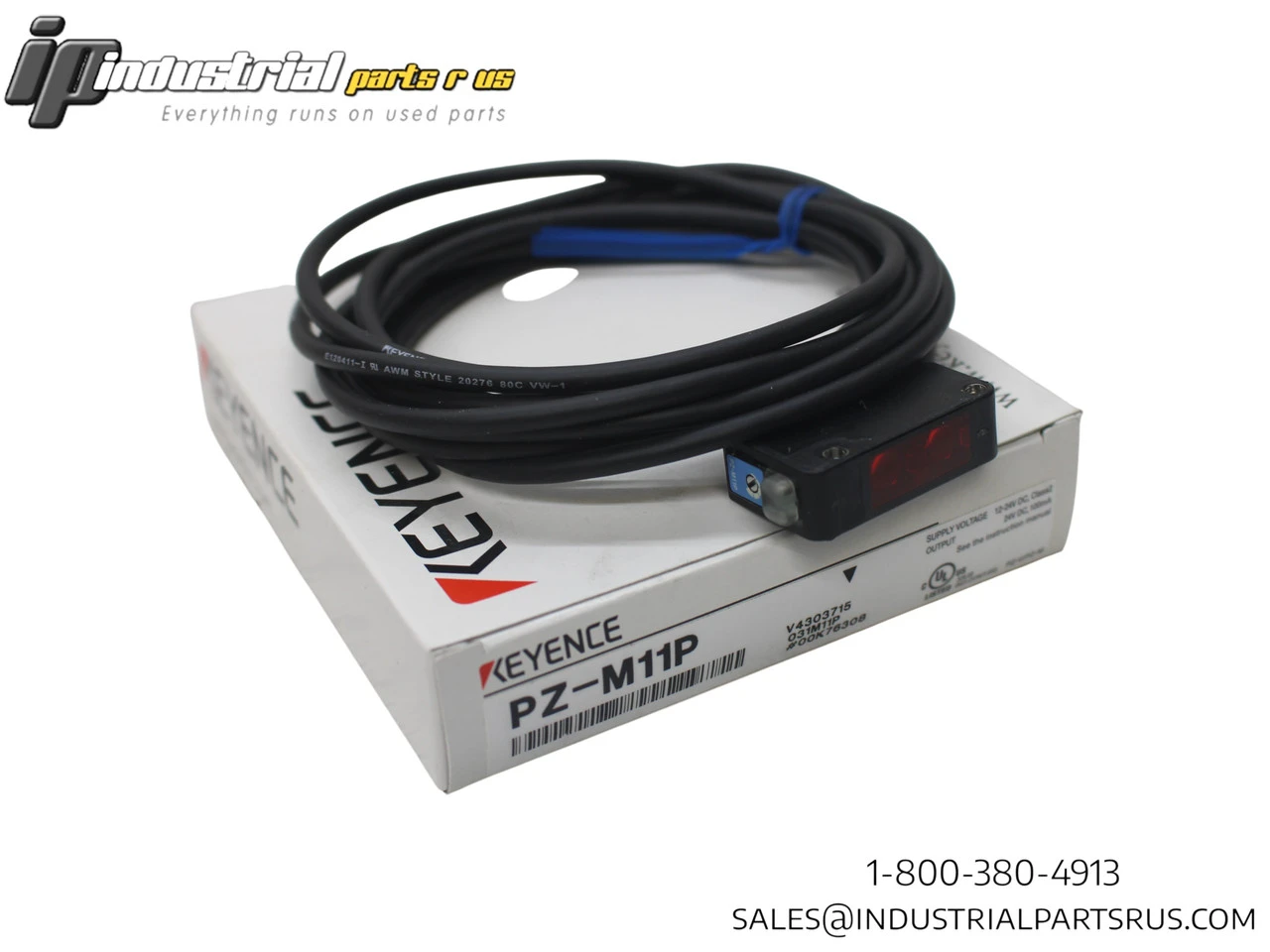

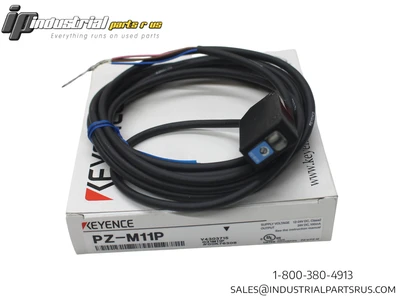

NEW KEYENCE PZ-M11P

The Keyence PZ-M11P is an intelligent reflective photoelectric sensor from the PZ-V/M series featuring Position Sensitive Detector (P.S.D.) technology and Automatic Power Reinforcement circuit (A.P.R.) for stable detection regardless of target color, surface finish, or angle. This square-shaped sensor offers adjustable field background suppression with visible red LED light source and programmable light/dark operation modes.
Specification
Value
Brand
Keyence
Model/Part Number
pz-m11p
Type
Intelligent Reflective
Sensing Distance
5-100mm (0.20"-3.94")
Setting Distance
30-100mm (1.18"-3.94")
Operating Voltage
12-24VDC ±10%
Output Type
PNP
Output Current
100mA (24V) max
Power Consumption
30mA max
Response Time
1ms max
Light Source
Red LED
Operation Mode
Light-ON/Dark-ON (switch-selectable)
Body Shape
Rectangular
Dimensions (LxWxH)
20 x 10.8 x 34.8mm (0.787" x 0.425" x 1.37")
Cable Length
2m (6.6ft)
Operating Temperature
-20°C to +55°C (-4°F to 131°F)
Operating Humidity
35-85% RH (No condensation)
IP Rating
IP67
Weight
Approx. 55g (including cable)
Series
PZ-V/M
We warranty all items for 30 days from date of purchase.

SKU: AI0212
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
Series: PZ-V/M
GTIN: 679523686161
Output Type: PNP
Sensor Type: Photoelectric
Operating Distance: 5-100mm
Manufacturer: Keyence
Part Number: PZ-M11P
Shelf: K-44
Model: PZ-M11P
MPN: PZ-M11P
Type: Photoelectric Sensor
