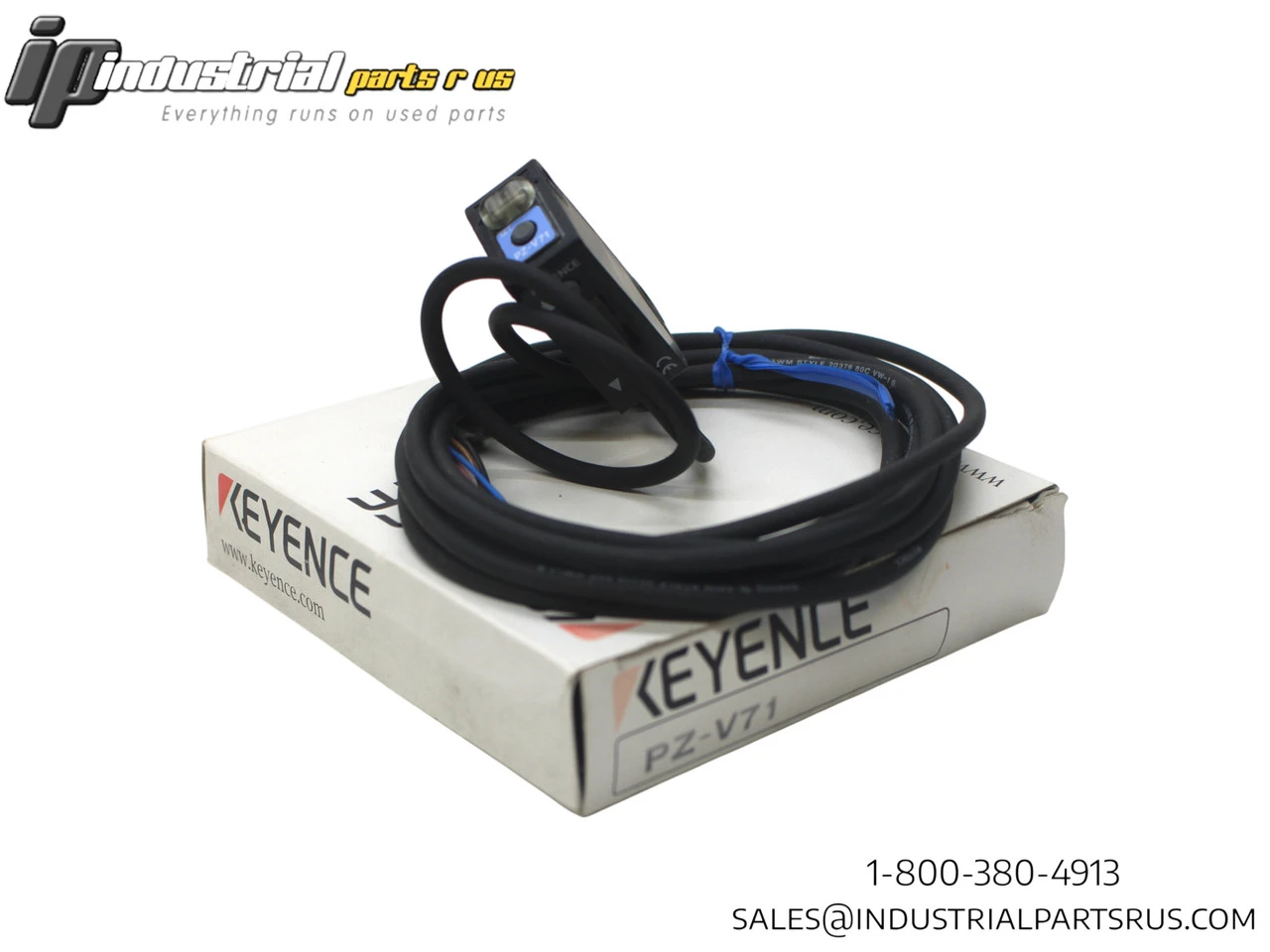

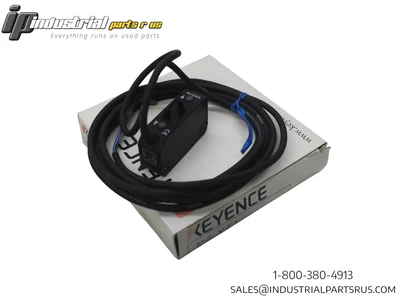

NEW KEYENCE PZ-V71

The Keyence PZ-V71 is an intelligent diffuse reflective photoelectric sensor featuring Position Sensitive Detector (P.S.D.) and Automatic Power Reinforcement circuit (A.P.R.) technology for stable detection regardless of color, surface finish, or angle. This square reflective cable type sensor is part of the PZ-V/M series and includes a built-in amplifier for reliable industrial sensing applications. The sensor maintains an IP-67 waterproof enclosure rating making it suitable for demanding industrial environments.
Specification
Value
Brand
Keyence
Model/Part Number
PZ-V71
Type
Photoelectric Sensor
Sensing Technology
Square Reflective (Diffuse)
Series
PZ-V/M
Output Type
NPN
Voltage
12-24VDC
Current Type
DC
Connection Type
2m Cable
Operating Distance
900mm (35.43 inch)
Response Time
1ms max
Operating Temperature
-20°C to 55°C (-4°F to 131°F)
Beam Type
Infrared LED
Operation Mode
Light-ON/Dark-ON (selectable)
Control Output
100mA (24V) max
Body Shape
Rectangular
Height
46.4-46.8mm (1.83-1.84 inch)
Length
27mm (1.06 inch)
Width
15mm (0.5906 inch)
Enclosure Rating
IP67
We warranty all items for 30 days from date of purchase.

SKU: AI0217
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
Series: PZ V/M
GTIN: 679523686161
Output Type: NPN
Sensor Type: Diffuse Reflective
Operating Distance: 900mm
Manufacturer: Keyence
Enclosure Type: IP67
Part Number: PZ-V71
Shelf: K-44
Model: PZ-V71
MPN: PZ-V71
Type: Photoelectric Sensor
