USED 2018 DOOSAN DNM 5700

Equipped With

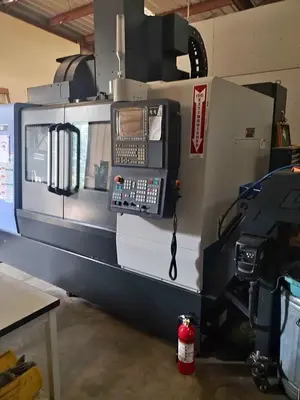

DOOSAN DNM 5700 VERTICAL MACHINING CENTER
New: 2018 (Very Low Cutting Hours)
Specifications:
Axis Configuration:  3-Axis
X-Axis Travel:  41.3 in
Y-Axis Travel:  22.4 in
Z-Axis Travel:  20.1 in
Table Size:  51.2 in × 22.4 in
Maximum Table Load:  2,205 lbs
Spindle Taper:  CAT-40
Spindle Speed:  8,000 RPM
Spindle Motor:  15 HP
Rapid Traverse:  1,417 IPM
Cutting Feed Rate:  590 IPM
Tool Changer Capacity:  30 Station Side-Mounted
Maximum Tool Weight:  17.6 lbs
Maximum Tool Diameter:  3.1 in (4.9 in without adjacent tools)
Maximum Tool Length:  11.81 in
Tool Change Time:  1.2 Seconds
Overall Dimensions:  122.4 in × 95 in × 117.5 in
Machine Weight:  14,330 lbs
Equipped with:
Fanuc Series CNC Control
Chip Conveyor
30 Position Tool Changer
Table Vises
