USED 2012 SOUTHWESTERN INDUSTRIES TRAK TRL 1845SX

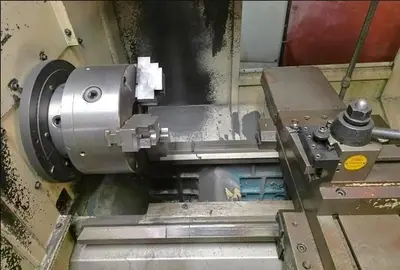

8" 3 Jaw Manual Chuck

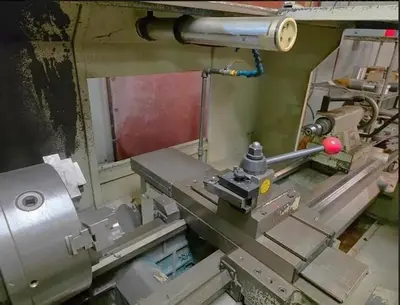

Dorian Tool Post
Tailstock
Electronic Handwheels and Joystick
AC Spindle Drive
Constant Surface Speeds
10.4" Color Active Matrix Screen
Networking Interface
RS232 Port Interface
Coolant System with Pump
Wired 220V 3 Phase Electrics

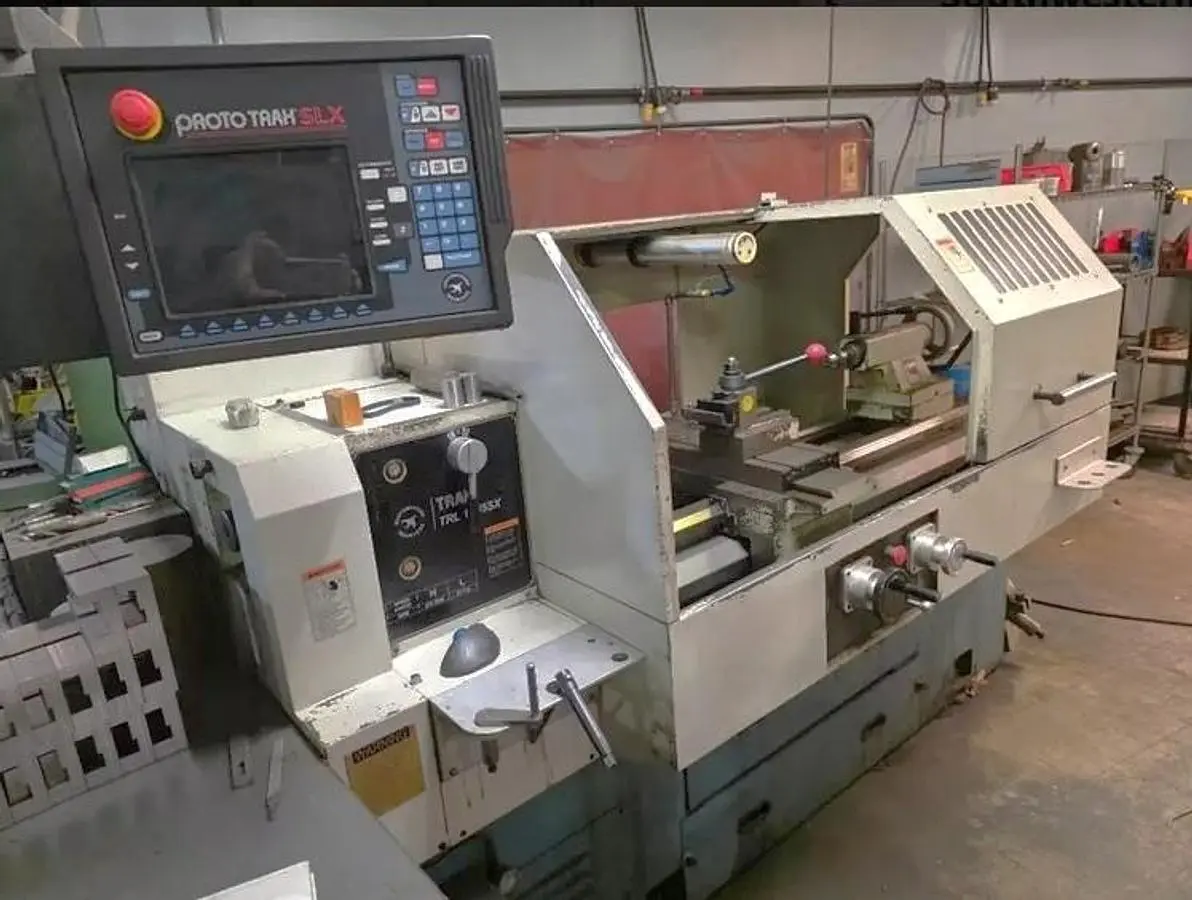

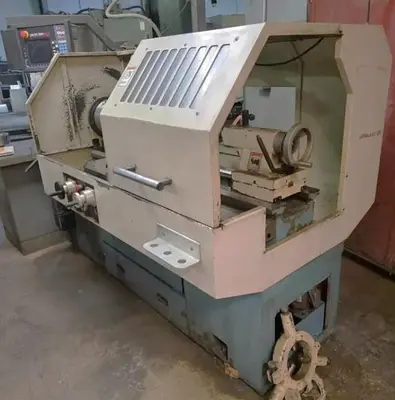

The 2012 Southwestern Industries TRAK TRL 1845SX is a reliable CNC lathe designed for precision and efficiency in machining tasks. It features a Prototrak SLX control system, ensuring ease of operation and accuracy. This lathe boasts an 18.1-inch maximum swing over the bed and a 9-inch maximum swing over the cross slide, accommodating a variety of workpieces. It has a 45-inch distance between centers, ideal for longer projects.

Equipped with an 8-inch 3-jaw manual chuck and a powerful 10 HP spindle motor, the TRAK TRL 1845SX offers spindle speeds ranging from 80 to 850 RPM and 250 to 2,500 RPM, catering to different cutting requirements. The spindle nose is D1-6 with a spindle bore of 2.36 inches, providing stability and versatility. The machine's quick-change tool post enhances efficiency by allowing seamless transitions between tooling.

Additional features include a robust tailstock with a #5MT taper, a quill diameter of 2.96 inches, and 7.125 inches of quill travel. The machine also offers rapid traverse rates of 100 IPM on the X-axis and 150 IPM on the Z-axis. With dimensions of 94"x53"x73" and a weight of 4,000 lbs, the TRAK TRL 1845SX requires 220V, 3-Phase, 60Hz power, making it a sturdy and dependable choice for various machining tasks.

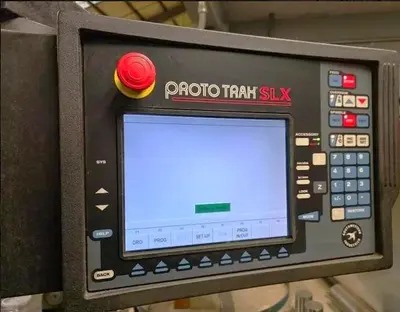

Machine Control: Prototrak SLX
Chuck Size: 8" 3-Jaw Manual
Maximum Swing over Bed: 18.1"
Maximum Swing Over Cross Slide: 9"
Distance Between Centers: 45"
Spindle Nose / Spindle Bore: D1-6 / 2.36"

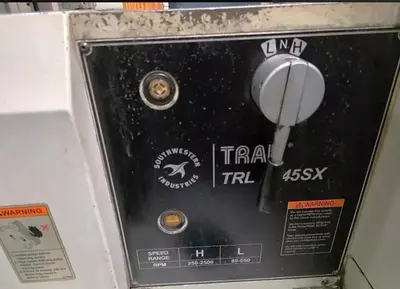

Spindle Speeds: 80-850 RPM / 250-2,500 RPM
Number of Tool Positions: 1 Tool Post Quick Change
Spindle Motor: 10 HP
Rapid Traverse Rates X/Z: 100 IPM / 150 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 2.96" / 7.125" / #5MT
Power Requirements: 220V / 3 Phase / 60Hz
Machine Dimensions LxWxH: 94"x53"x73"
Machine Weight: 4,000 lbs
