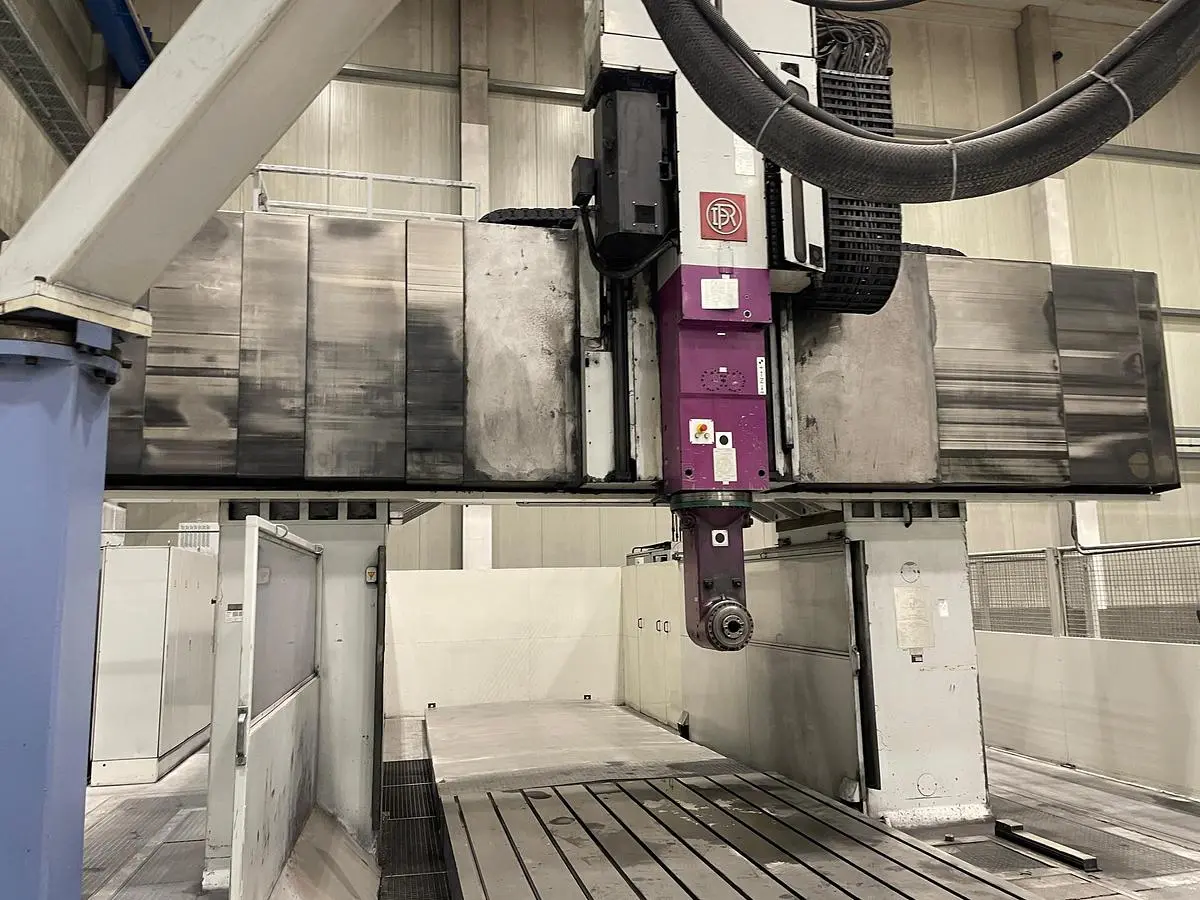

USED 1992 DROOP + REIN FPV 2500 SL50-15N
Overview
Description

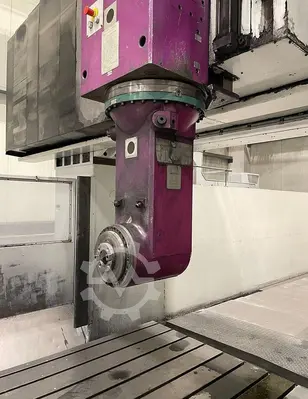

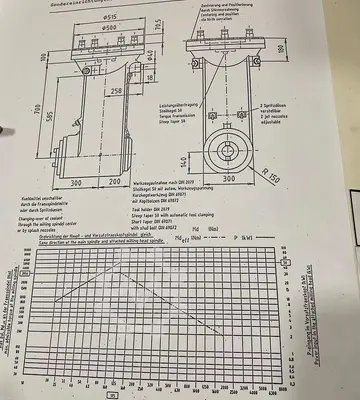

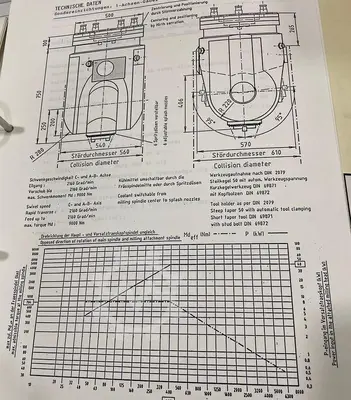

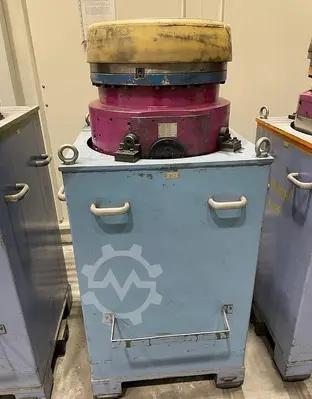

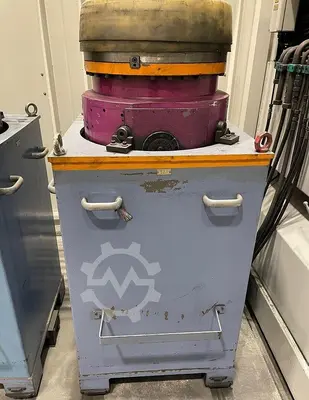

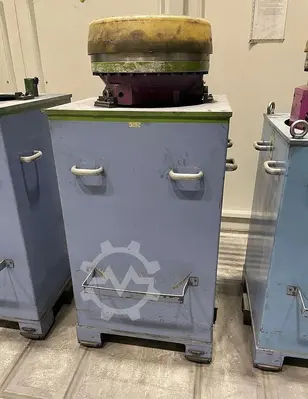

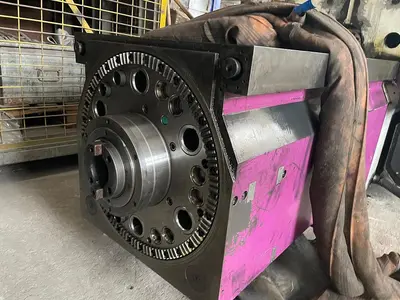

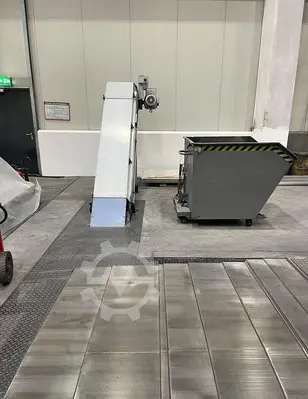

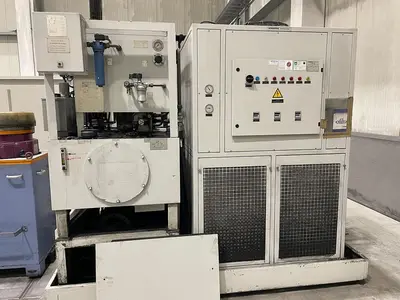

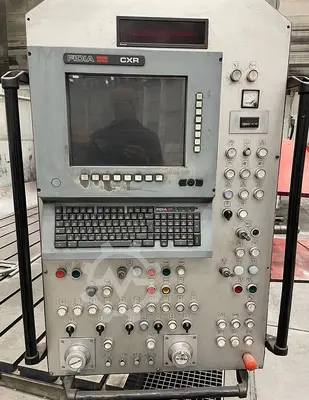

FIDIA System C20 CNC Control, new in 2002New Electrics in 2018CNC biaxial continuous milling headUniversal Milling Head with Auto IndexingRight Angle Head with Auto IndexingStraight Milling HeadWagons for Head Change and Tool Pick-up ChangeHydrostatic BearingsCoolant SystemFull Length Chip Conveyors both sideWay CoversFixed Crossrail MachineThree Phase Current Input
Specifications
Manufacturer: Droop + Rein
Model: FPV 2500 SL50-15N
Year: 1992
Condition: Used
Stock Number: 5654304
Spindle quill diameter: 250 mm
Between columns: 3,300 mm
Spindle speeds: 4,000 rpm
Distance table to spindle nose: 2,110 mm
X axis travel: 6,800 mm
Y axis travel: 3,700 mm
Z axis travel: 1,500 mm
Table size: 6,000 x 2,500 x 1,100 mm
Table capacity: 50,000 kg
Spindle motor power: 50 kW
Spindle taper: ISO #50
Vertical passage: 2,000 mm
Feed rate X/Y: 15 m/min
Feed rate Z: 10 m/min
Rapid traverse X/Y: 15 m/min
Rapid traverse Z: 10 m/min
Machine weight: 110,000 kg

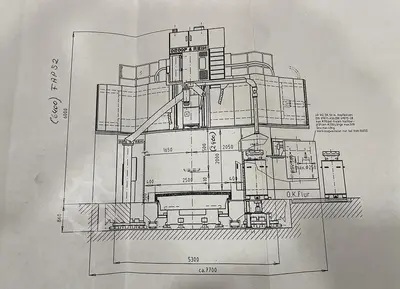

Machine dimensions: 15 x 7.5 x 7 m
