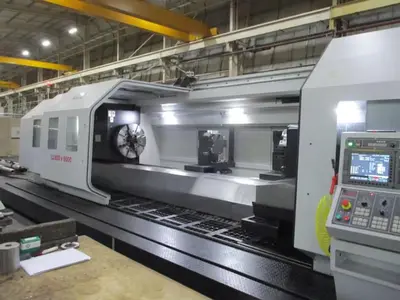

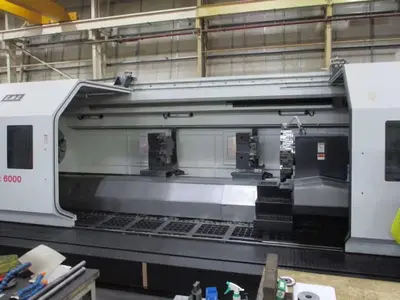

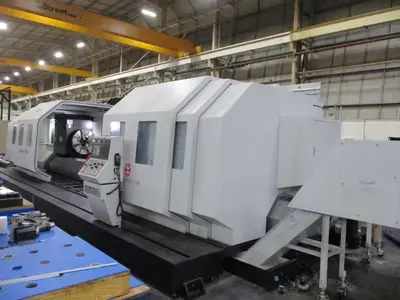

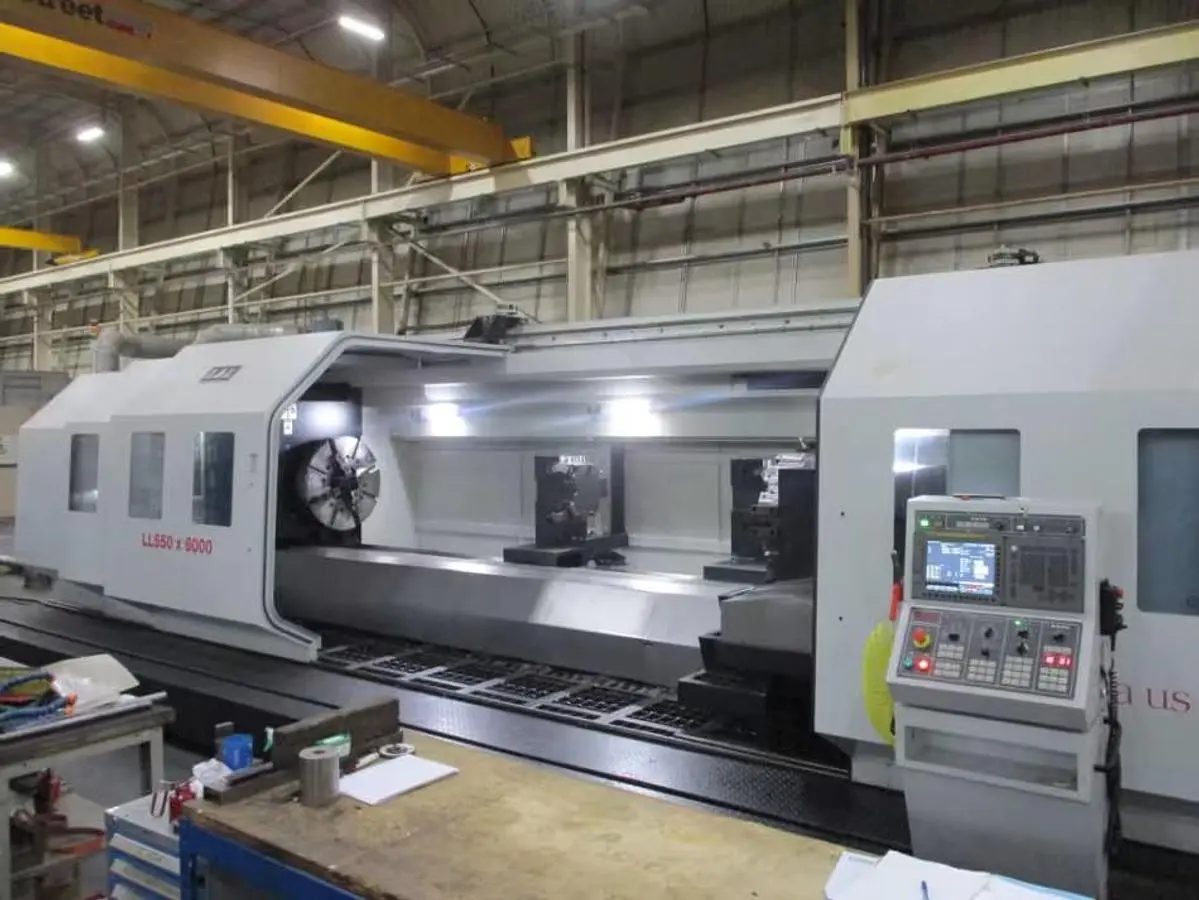

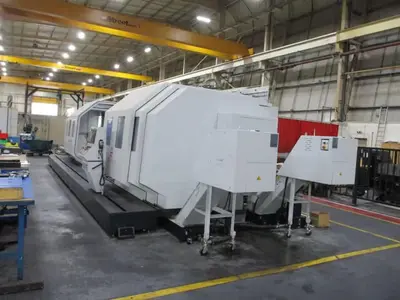

USED 2024 L&L MACHINERY TUSCAN LL550 X 6000
Overview
Running Time 314 Hours

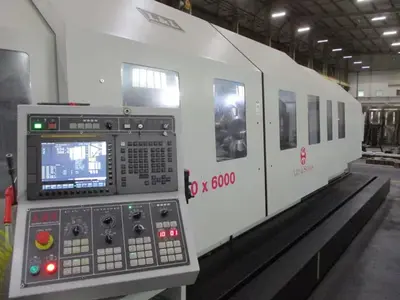

Fanuc 0I-TF PLUS CNC Control
5-Bedway
Carriage Type Box (2 Box Way)

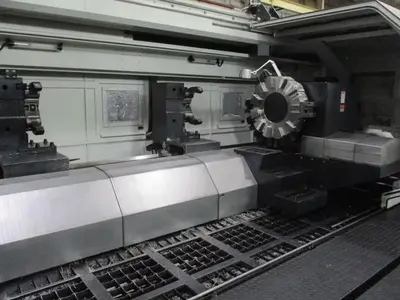

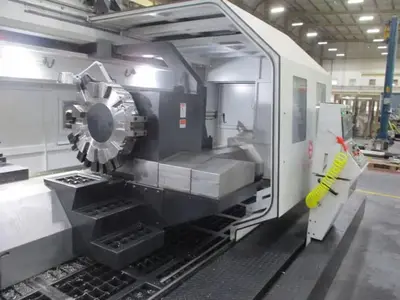

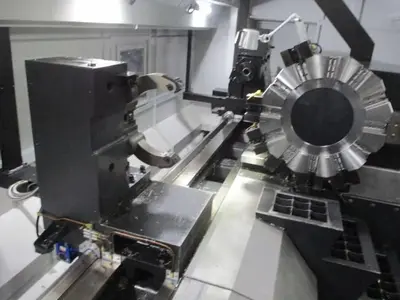

V12-200 Hydraulic 12 Station Turret - 32mm Tool Size - Ø50mm Boring Bar Holder Dimension
Motorized Tailstock Body Movement - Quill Ø165mm - Quill Travel 250mm - MT 6
Automatic Doors & Full Cover Guard
(2) 'FCG-32C' Ø800mm x Ø320mm
Through Bore 4-Jaw Manual Chucks (Front & Back of Spindle)

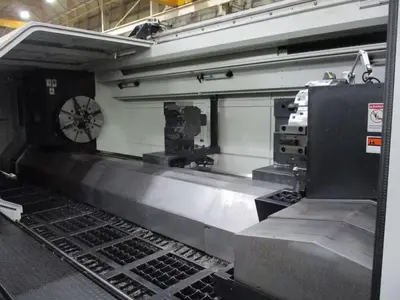

(2) SMW Autoblok 'K4 ZSW' Programmable Steadies - Range Ø52mm - 280mm
Headstock Spindle Nose A2-20
Spindle 'X' Axis Servo Motor 3kW
'Z' Axis Servo Motor 7kW
Motorized Fondex Front & Rear Chip Conveyors
Auto Lubrication & 15-Bar Coolant System

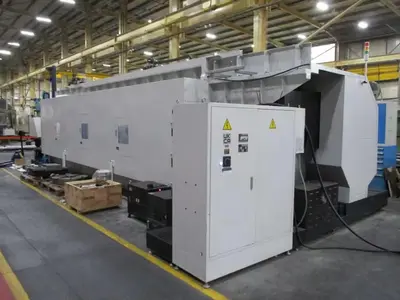

Air Conditioned Electric Cabinet
Halogen Work Lights
Unimag DS-2030-30 Disc Type Oil Skimmer
Yong Teng E04-AL60 kVA Transformer
(2) Steel Cabinets:
(1) 500mm x 500mm x 800mm With 6 Drawers
(1) 1,000mm x 700mm x 1,000mm With 6 Drawers
Full Range Of Machine Manuals
Ø800mm 4-Jaw Manual Chuck with Backing Plate & Spare Jaws
Morse Taper 6

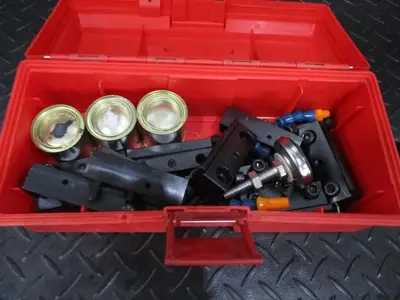

(11) Assorted C6 Capto Adaptors Including Boring Bar Holders
Tool Blocks & Facing Tool Holder
Boring Bar Attachment (To Hold up to 150mm)
Uniquely designed with a 5-guide one-piece box-way bed structure and box-way cross slide
where the carriages can run along the full Z-axis length of bed "in front" of the workpiece without
any interference from the steady rest, boring saddle or tailstock.
Specs
Manufacturer: L&L Machinery
Model: TUSCAN LL550 x 6000
Year: 2024
Condition: Used
Stock Number: 5654306
Between centers: 6,000 mm
Tailstock quill diameter: 165 mm
Quill travel: 250 mm
Swing over bed: 950 mm
Chuck speed: 7 - 400 rpm
Motor power: 37 / 37 kW
Center height: 575 mm
X axis travel: 480 mm
Z axis travel: 6,000 mm
Carriage width: 955 mm
Cross slide with: 450 mm
Bed width: 990 mm
Spindle bore diameter: 305
Feed rate X/Z: 0 - 3,000 mm/min
Machine dimensions: 8,470 x 3,050 mm
Machine height: 2,370 mm
Machine weight: 20,500 kg
