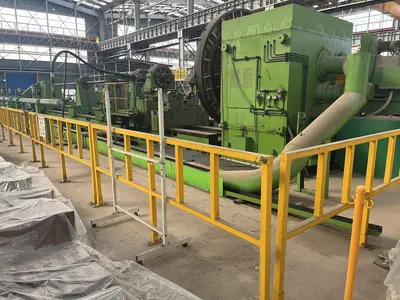

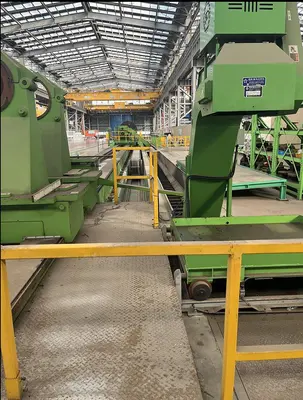

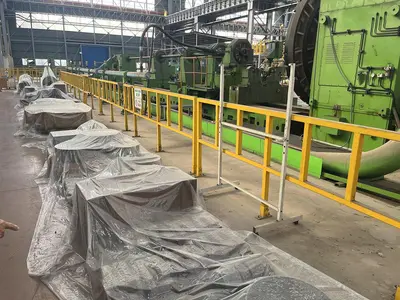

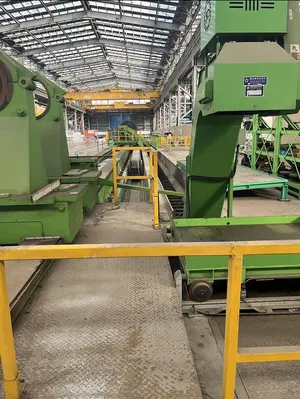

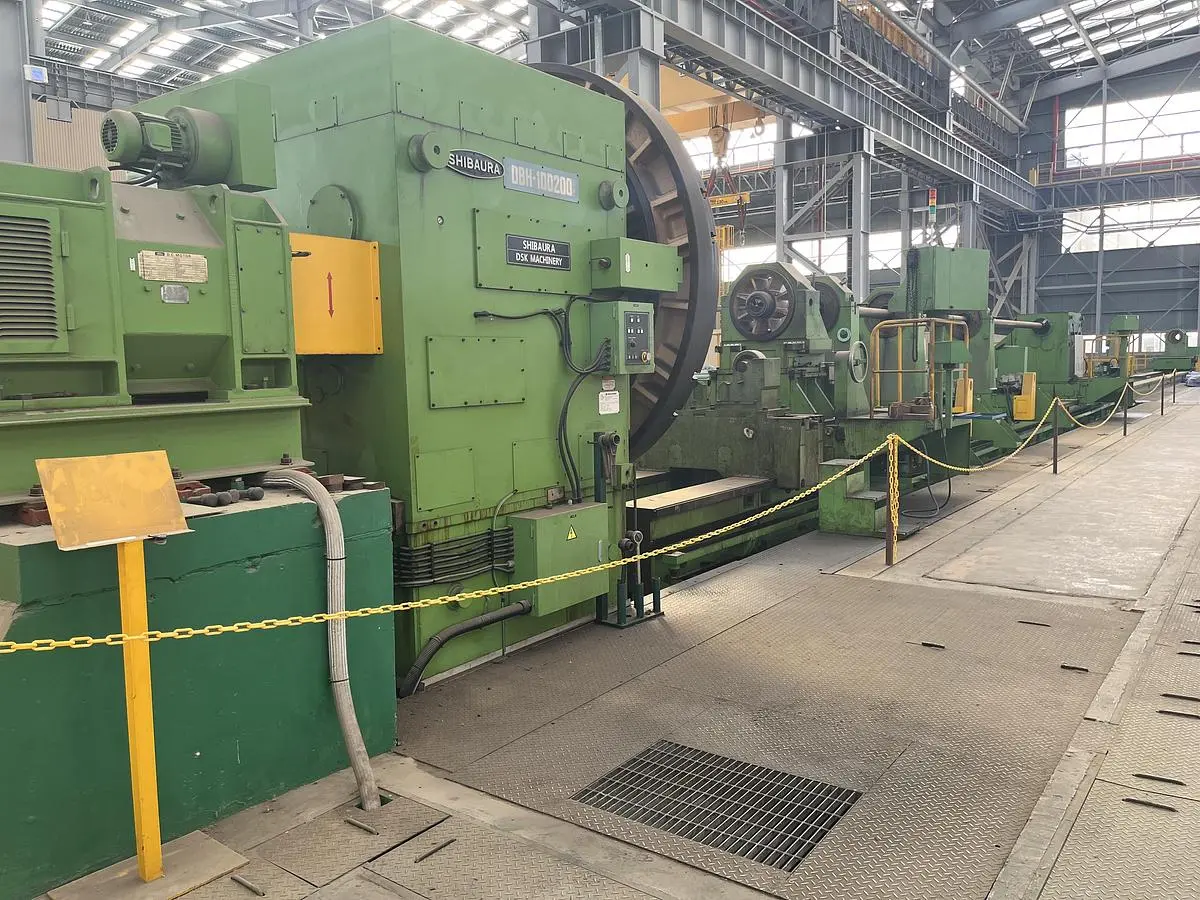

USED 1978 TOSHIBA SHIBAURA DBH-100200
Overview
Rebuilt & Retrofitted in 2014
Fanuc 31i TD CNC Control
Max Workpiece weight - 200 Ton
Max Workpiece Weight with two work rests (2 point) - 100 Ton
Max Workpiece Weight with two work rests (3 point) - 20 Ton
Max. Workpiece Diameter - 3,200 mm (Swing above bed)
When one three-point steady test is used: Min. 1,500mm
When one two-point steady test is used: Min. 1,700mm

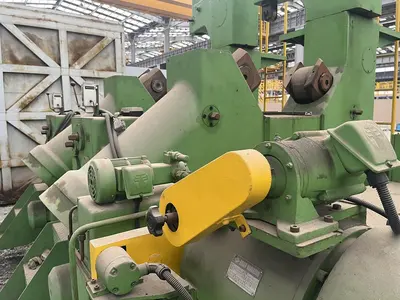

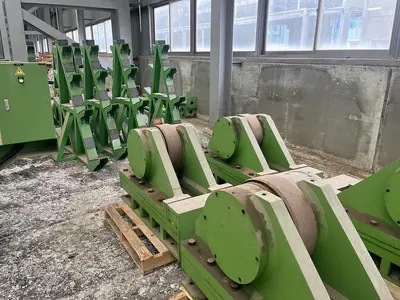

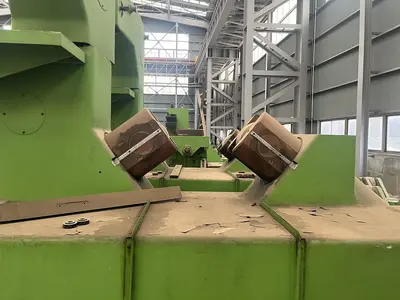

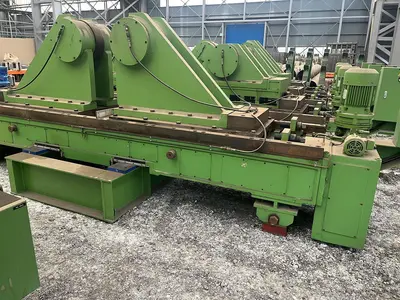

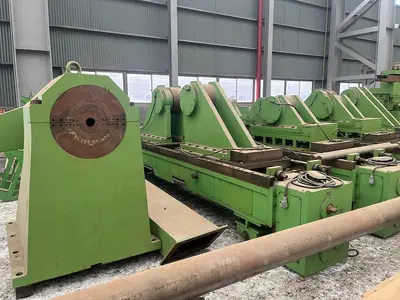

Number of steady Rest (work holding device): 6 sets (3point and 2point)
Specs
Manufacturer: Toshiba Shibaura
Model: DBH-100200
Year: 1978
Condition: Used
Stock Number: 5654309
Max drilling & core boring depth: 20,000 mm
Max workpiece weight: 200 Ton
Swing over bed: 3,200 mm
Range of drilling diameter: 70 - 500 mm
Range of core boring diameter: Counter boring: 70 - 560 mm
Range of counter boring diameter: Special counter boring: 560 - 1,000 mm
Faceplate Diameter: 2,900 mm
Range of Chucking Diameter, Max: 2,500 mm
Bed length: 50 m
Max spindle speed: 15 - 230 rom (Low speed 15 - 75 rpm)
Number of Spindle Speed Ranges: 2
Spindle motor: DC 150 kW - 440V - 385A
Drilling & Boring Spindle Speed, 8-Step Gear Change: 100 - 500 rpm
Drilling & Boring Spindle Motor: AC 55 kW
Boring Feed: 3 - 2,000 mm/min
Rapid Traverse of Boring Carriage: 2,000 mm/min
Floor Space Required: 9 x 57 meter
Machine weight, approximate: 300 Ton
