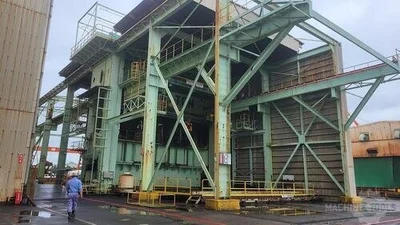

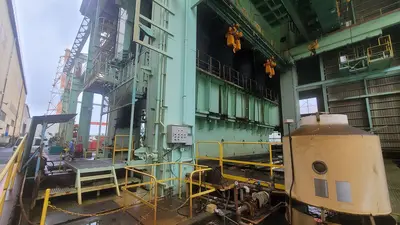

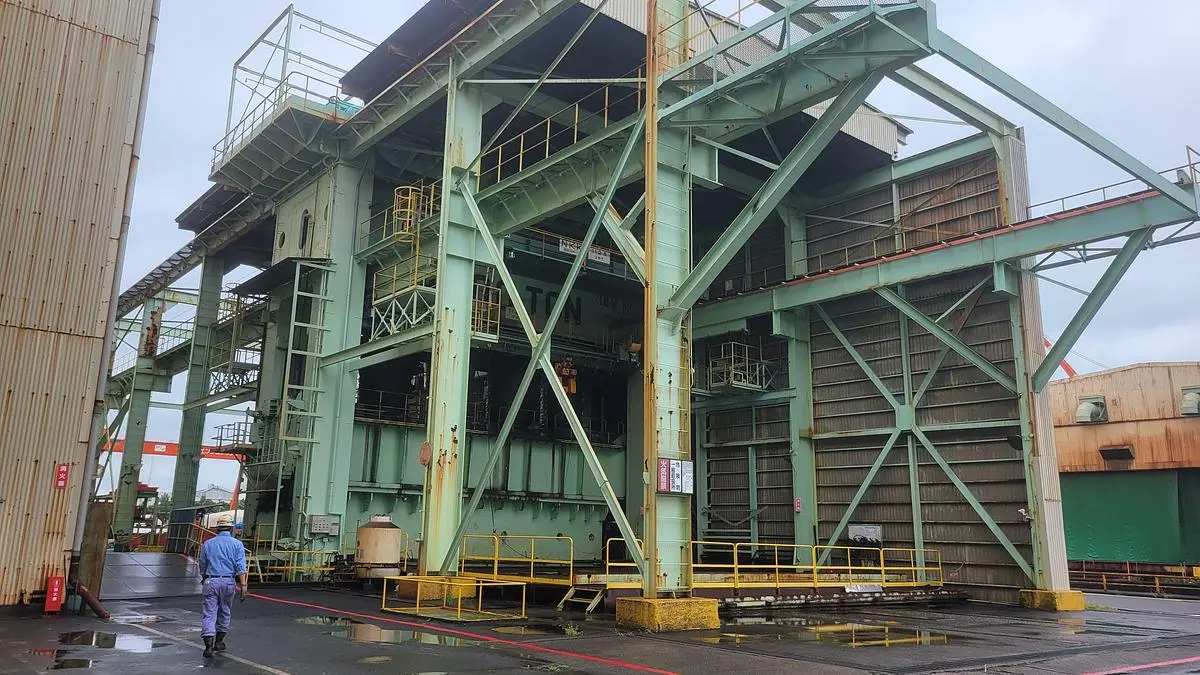

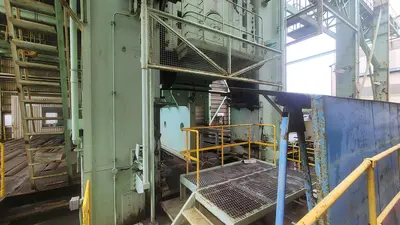

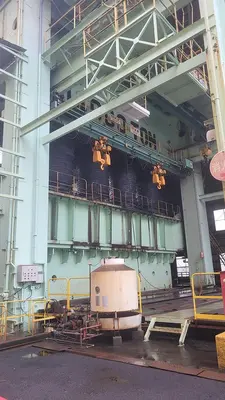

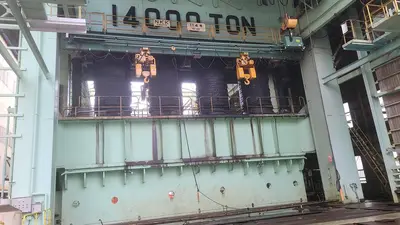

USED 1980 NKK (JFE STEEL) 12,000 T

Work: Work size: 13,000mm x 3,000 mm Material：SS，SM, HT, Etc. ø700A bending（at 45mm thickness) ø2000A bending ( at 130mm thickness)Slide Work Speed:None-load down speed: max. 65 mm/sec (variable speed at below) Down speed: 30 mm/sec (variable speed at below) Pressing speed: 3.3 mm/sec (at maximum force) Rising speed: 65 mm/sec (variable speed at below) Slow rising speed: 30 mm/sec (variable speed at below) Normal pressure: 280 kg/cm2 Maximum work pressure: 315 kg/cm2 Main motor: 220KW, 6P, 6000V, 50Hz, 2 units End bending speed: 15m/min, 200 kgf/mMain cylinder size: diameter 1,170 mm x 4 unitsLifting cylinder diameter: (470-220) mm x 2unitsMain Pump:Type: axle plunger type x 2unitsMaximum work pressure: 315 kg/cm2Discharge volume: 450L/min(at 280kg/cm2)Regulator: electric-hydraulic SERVO typeMotor: 220KW x 2units , 6000V, 50Hz(Pilot pump)2units70kg/cm2, 50kg/cm2400V, 50Hz18.5KW, 15KW(Circulation pump)5kg/cm2, 200L/min(Roll drive device)Oil motor (axle piston, 210kg/cm2) x 2 unitsSpeed: 3m/min(Spacer drawing device)Oil motor (axle piston, 140kg/cm2) x 4 unitsRoller Table Device:Front-BackLoad capacity: 30ton/1 sideTable: 9810 x 5509mm/ 1sideSpeed: 6m/min(Auxiliary hydraulic device)Axle piston typeMaximum pressure: 350kg/cm2Discharge volume: 51L/min(at 210kg/cm2)Motor 22KW , 400V, 50Hz

Manufacturer: NKK (JFE Steel)
Model: 12,000 T
Year: 1980
Condition: Used
Stock Number: 5654310
Nominal Force: 14,000 Ton
Capacity: 12,000 Ton
Stroke: 2,600 mm
Daylight: 5,700 mm
Slide Area: 12,500 x 1,800 mm

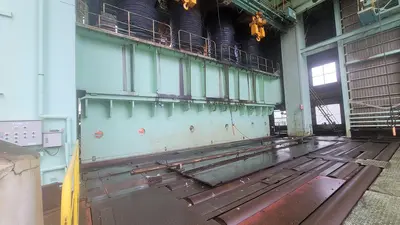

Table Area: 15,500 x 2,000 mm
Work Size: 13,000 x 3,000 mm
Non-Load Descending Speed: 65 mm/sec
Descending Speed: 30 mm/sec
Maximum Work Pressure: 315 kg/cm²
Lifting Capacity: 440 Ton
Main motor: 220 kW, 6P, 6000 V, 50 Hz, 2 Units
End Bending Speed: 15 m/min, 200 kgf/m

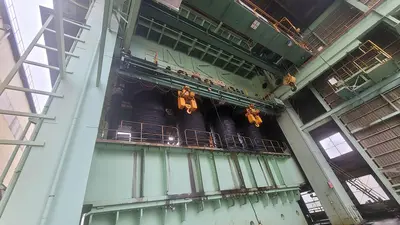

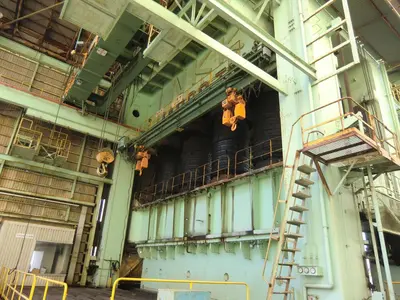

Cylinder Size: Diameter 1,170 mm x 4 Units
