USED BROWN & BOGGS 60

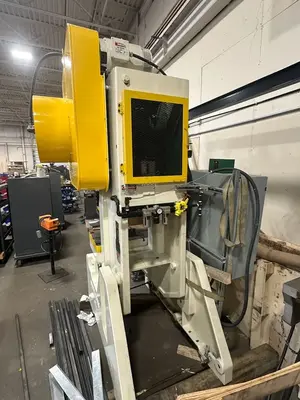

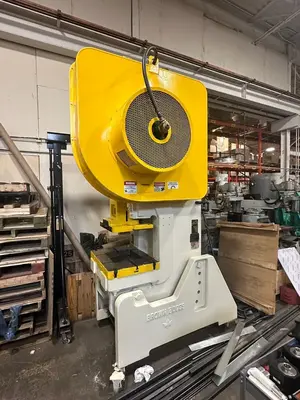

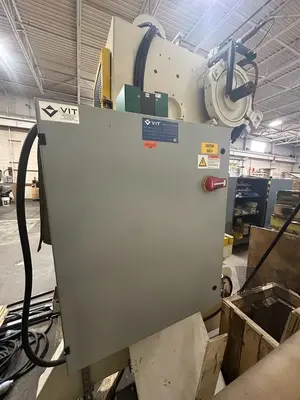

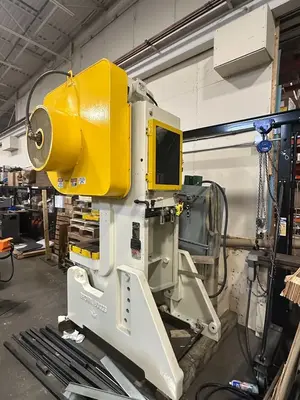

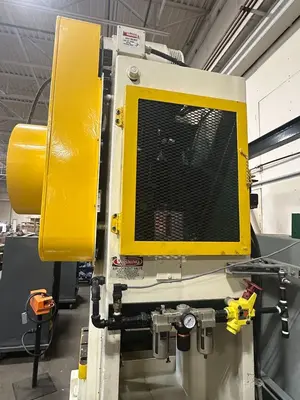

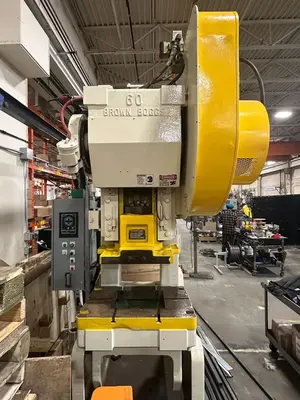

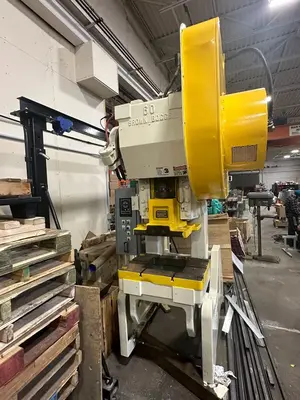

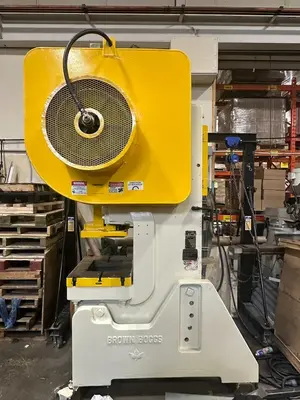

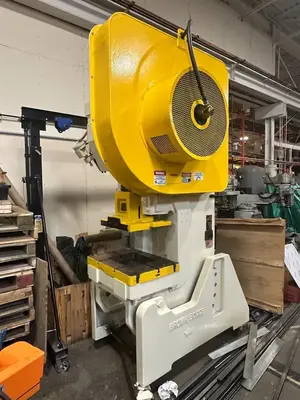

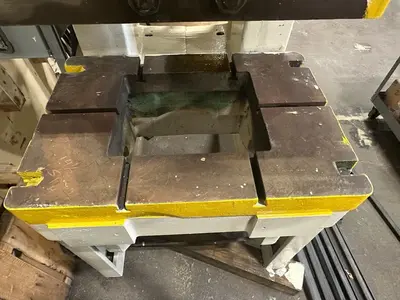

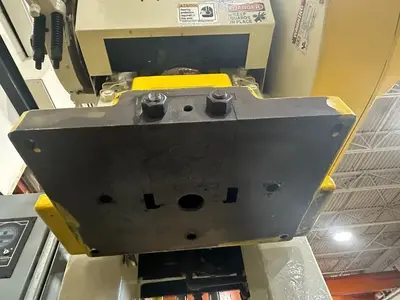

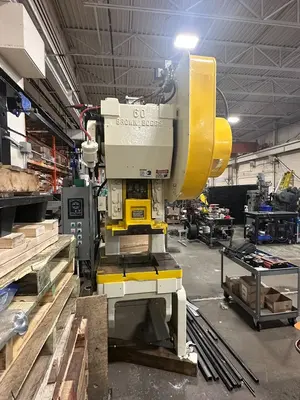

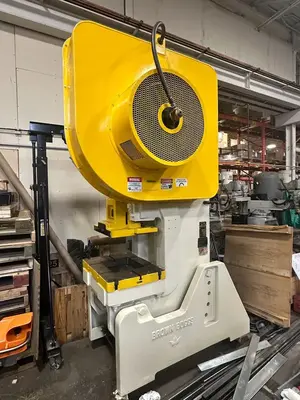

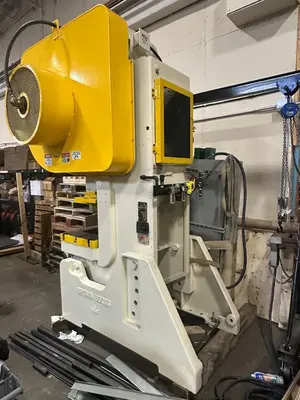

THIS IS A BROWN & BOGGS 60 TON PRESS, MODEL 60, EQUIPPED WITH A WINTRISS WPC 2000 CLUTCH/BRAKE CONTROL. THE PRESS OPERATES ON 575V 60HZ 3PH POWER WITH A TOTAL HP OF 5 HP, DELIVERING 60T OF TONNAGE. KEY DIMENSIONS INCLUDE A 5-INCH STROKE, A 9.5-INCH SHUT HEIGHT, AND 3 INCHES OF ADJUSTMENT. THE BED AREA MEASURES 32 INCHES L-R BY 22.5 INCHES F-B, WHILE THE RAM AREA IS 21 INCHES L-R BY 16 INCHES F-B. THE MACHINE CAN ACHIEVE 90 STROKES PER MINUTE, REQUIRING 80 PSI FOR BOTH BRAKE AIR PRESSURE AND CLUTCH AIR PRESSURE. THE WINTRISS WPC 2000 CONTROL UNIT OPERATES WITH A SUPPLY VOLTAGE OF 600 VAC 60HZ 3PH, A CONTROL VOLTAGE OF 110VAC/24VDC, A SHORT CIRCUIT RATING OF 5KA, AND FULL LOAD AMPS OF 7.5A. THE MACHINE WEIGHS 12,500 LBS AND HAS OVERALL DIMENSIONS OF 61 INCHES X 86 INCHES X 130 INCHES.
