USED 2004 DARBERT TF-900S

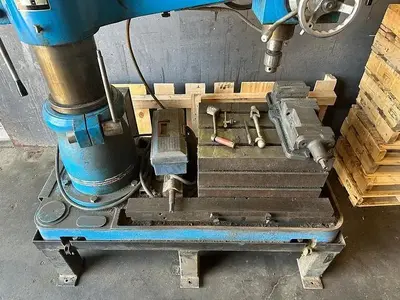

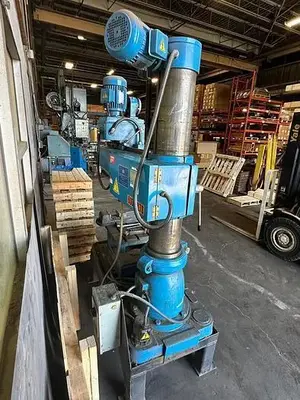

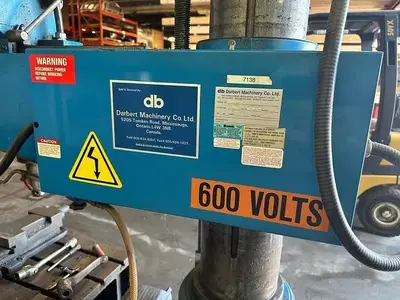

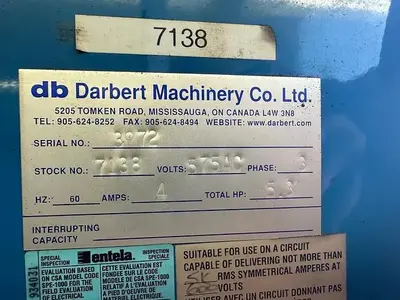

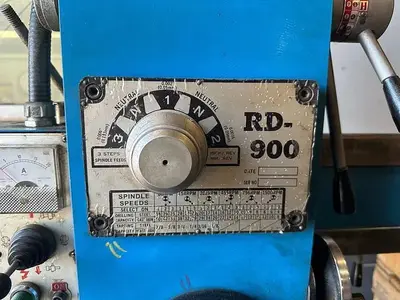

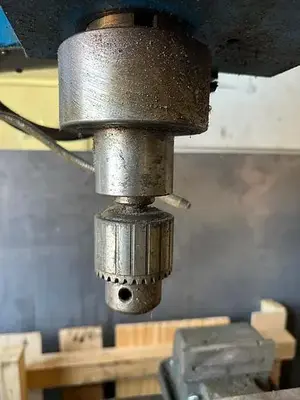

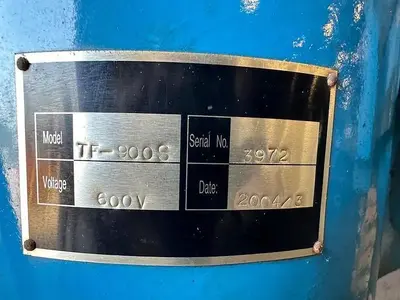

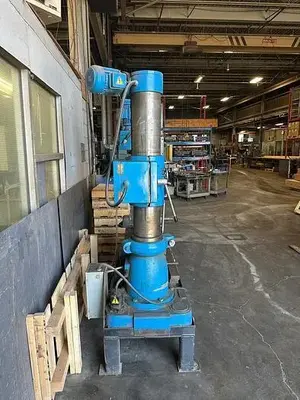

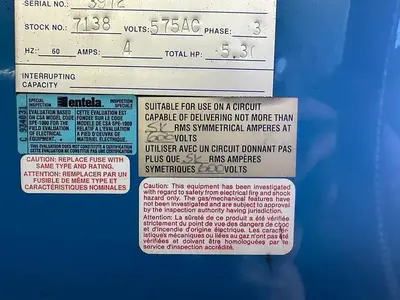

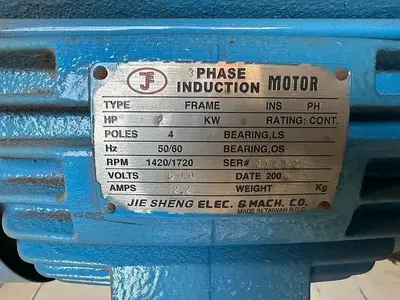

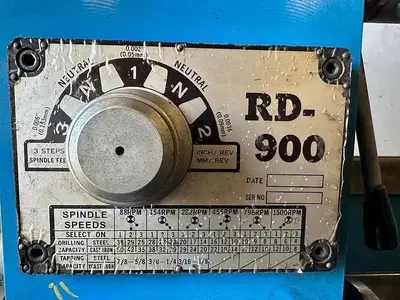

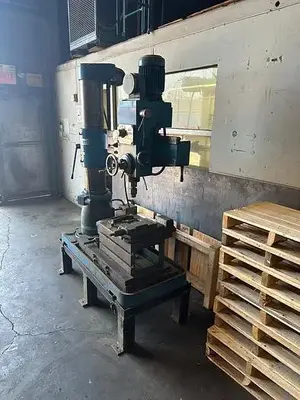

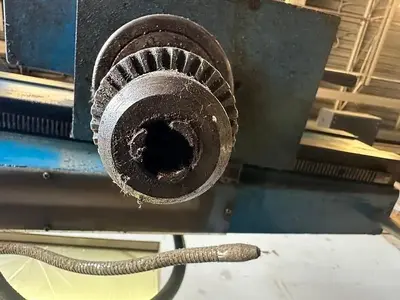

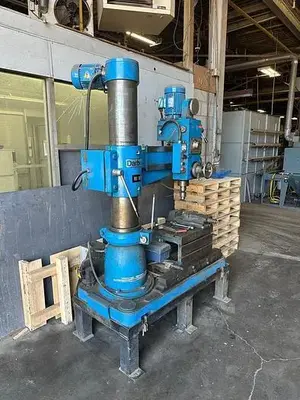

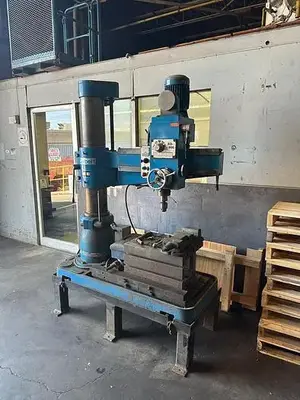

The 2004 Darbert TF-900S RD-900 radial drilling machine is powered by a 5.3HP motor operating at 600V, 4A, 60Hz, 3ph. It features a 2004 Jie Sheng 3 phase induction motor (2HP, 1420/1720RPM, 600V, 2.2A, 4 poles, 50/60Hz, 3ph). The machine has a drilling capacity in steel of 38 mm and uses an MT4 spindle taper. Spindle travel (stroke) ranges from 200–210 mm, with spindle speeds available in 6 steps, from 88–1500 RPM. The column diameter measures 210 mm. Headstock horizontal travel (arm travel) is 545 mm. Reach from the column surface to the spindle center ranges from a minimum of 290 mm to a maximum of 920 mm. The distance from the base to the spindle ranges from a minimum of 282 mm to a maximum of 1,110 mm. The effective area of the table size is 550 × 405 × 315 mm.
