USED ARTOS 5K-20

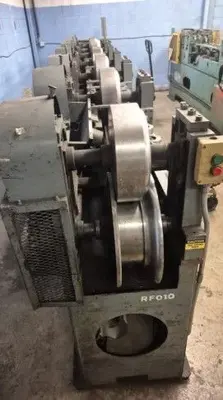

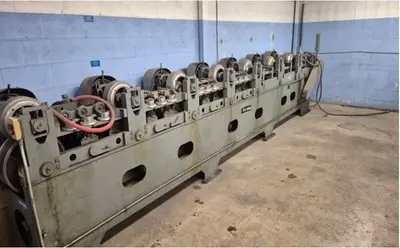

THE ARTOS 5K-20 ROLL FORMER IS A CONTINUOUS COIL FEED MACHINE DESIGNED TO PRODUCE 5'' K-STYLE EAVESTROUGH PROFILES. IT OPERATES ON 208V, 60HZ, 3PH POWER AND FEATURES AN ELECTRIC MOTOR WITH A MECHANICAL DRIVE AND FIXED SPEED CONTROL IN THE 5 HP RANGE. THE MACHINE HAS A PRODUCTION SPEED OF APPROXIMATELY 165 FEET PER MINUTE AND A THICKNESS CAPACITY OF UP TO ~24 GAUGE FOR COMMON MATERIALS SUCH AS GALVANIZED STEEL, ALUMINUM, AND COPPER. ITS CONSTRUCTION INCLUDES A HEAVY WELDED STEEL BOX FRAME, MULTIPLE FORMING STANDS, AND A HARDENED GEAR TRAIN FOR DURABILITY. THE TOTAL WEIGHT OF THE ROLL FORMER IS 4,000 LBS, WITH MACHINE DIMENSIONS MEASURING 185'' X 40''X 60''IN.
