USED PA INDUSTRIES ULTRA ADVANTAGE

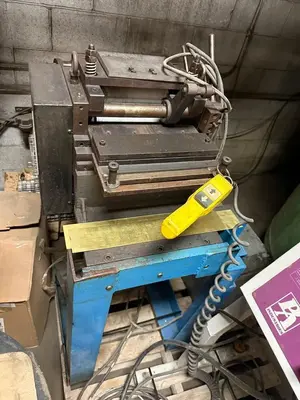

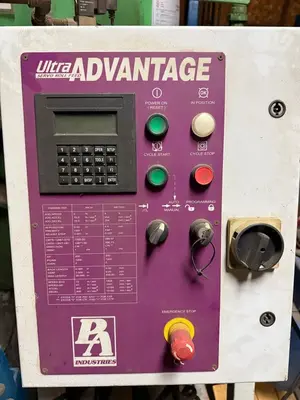

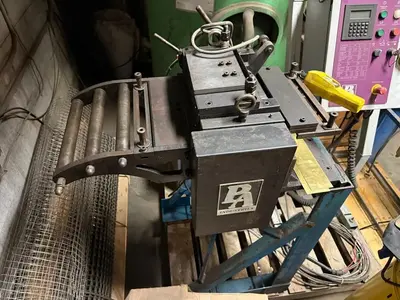

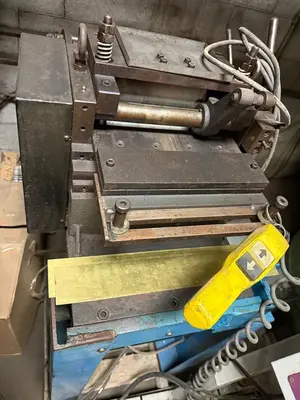

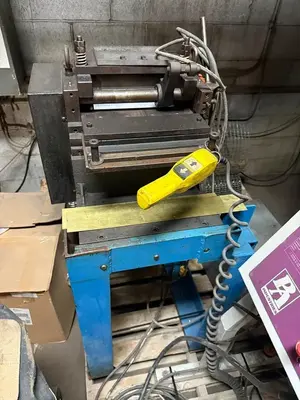

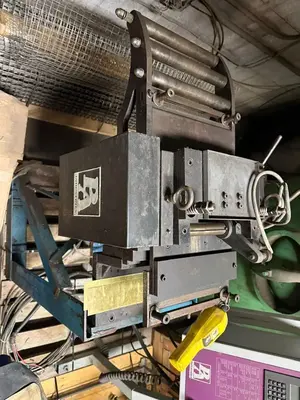

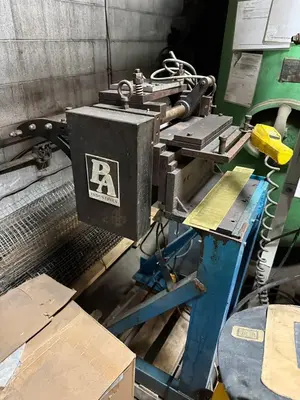

THE PA ULTRA ADVANTAGE SERVO ROLL FEED SYSTEM, MANUFACTURED BY PA INDUSTRIES, IS AN ULTRA ADVANTAGE MODEL OPERATING ON 220V, 60HZ, SINGLE-PHASE POWER. FEED SYSTEM SPECIFICATIONS INCLUDE JOG/MOTION PARAMETERS WITH A JOG SPEED OF 10.0 IN/S (254 MM/S), JOG ACCELERATION OF 100 IN/S² (2540 MM/S²), AND JOG DECELERATION OF 10 IN/S² (254 MM/S²). POSITIONING AND ENCODER SETTINGS FEATURE AN IN POSITION WINDOW OF 0.002 IN (0.05 MM) AND A PROPORTIONAL ADJUST STEP OF 0.0001 IN (0.0025 MM). STANDARD COUNTS/UNIT IS 12795.00, WHILE HI-RES COUNTS/UNIT IS 25471.00, WITH BOTH CCW AND CW DIRECTION AVAILABLE. PID & MOTION CONTROL SETTINGS SHOW A P-GAIN OF 200 (IN BOTH INCH AND METRIC), I-GAIN OF 1200 (INCH) AND 12000 (METRIC), AND D-GAIN OF 200 (IN BOTH INCH AND METRIC). FEED LENGTH SETTINGS ACCOMMODATE A BACK LENGTH RANGE OF 0.000 – 999.999 IN (0.00 – 9999.99 MM) AND A MAX FEED LENGTH OF 999.999 IN (9999.99 MM). SPEED/ACCELERATION SPECIFICATIONS INCLUDE A STANDARD SPEED OF 120 IN/S (3048 MM/S), STANDARD ACCELERATION OF 200 IN/S² (5080 MM/S²), AND STANDARD DECELERATION OF 400 IN/S² (10160 MM/S²).
