USED 2013 TROTEC SPEEDY 400

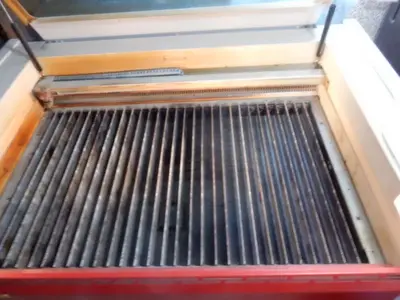

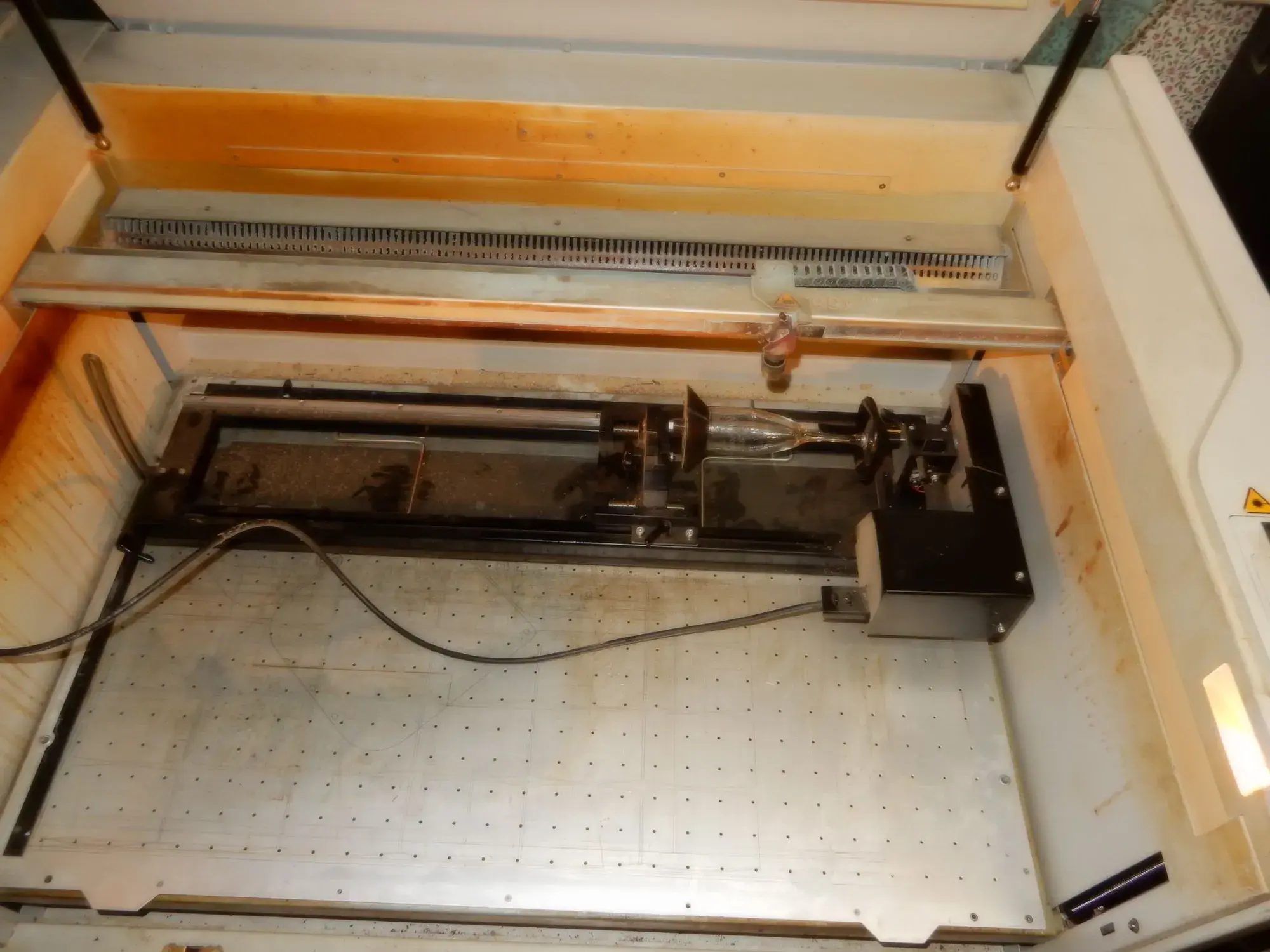

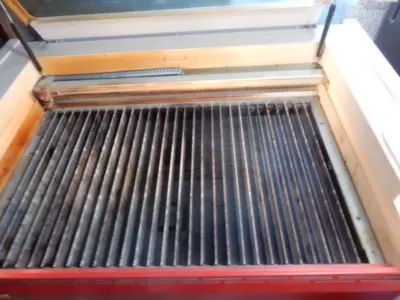

The Trotec Speedy 400 CO₂ laser engraver/cutter is a high-performance system, with this specific unit manufactured in March 2013. It features an 80-watt sealed-off CO₂ laser source operating at a 10.6 Μm wavelength and is powered by 115V, 50/60Hz electricity. The standard working area measures 1016 x 610 mm (40 x 24 inches), with a maximum workpiece height of 305 mm (12 inches). It utilizes brushless DC servo motors to achieve a maximum processing speed of 4.32 m/s (170 IPS) and acceleration of 50 m/s² (1969 IPS²). The machine incorporates a multifunctional table concept, including a cutting grid bed, flat bed, and lamella bar bed, to optimize processing for diverse materials such as solid woods, thin films, and acrylics. Optics supplied include 2-inch and 4-inch lenses, and the system is equipped with a rotary engraving attachment for processing cylindrical objects. The machine's overall dimensions are approximately 67 inches wide by 45 inches deep by 42 inches high, with a total weight of approximately 900 lbs.
