USED 1971 MAS VR-4

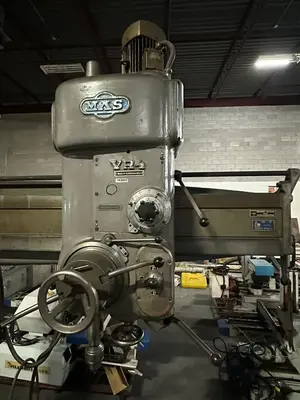

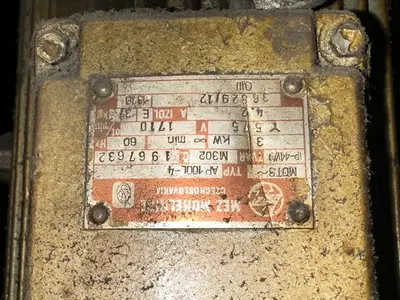

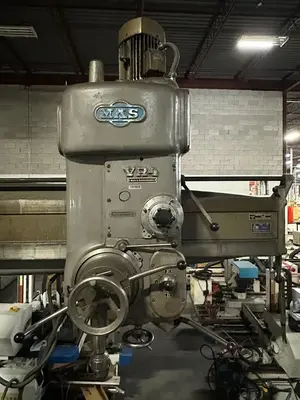

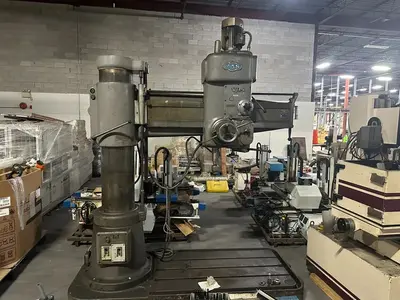

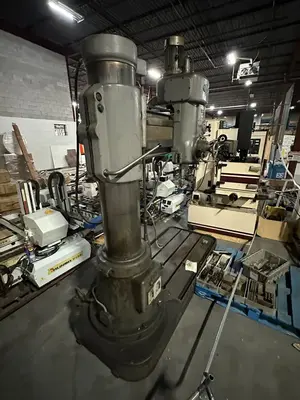

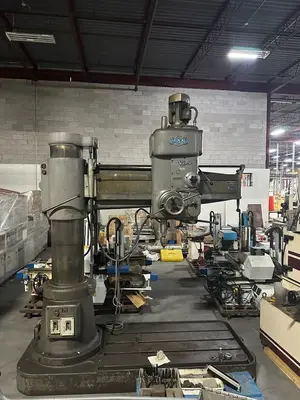

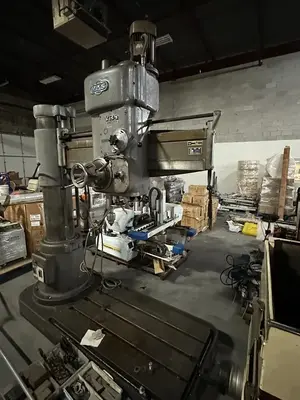

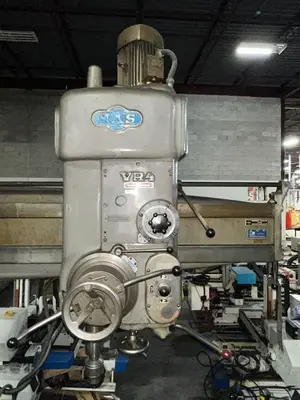

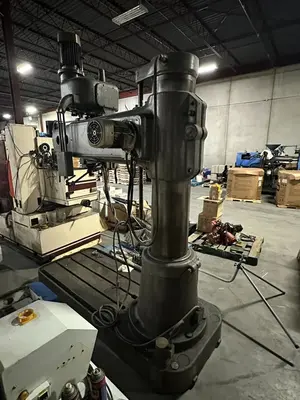

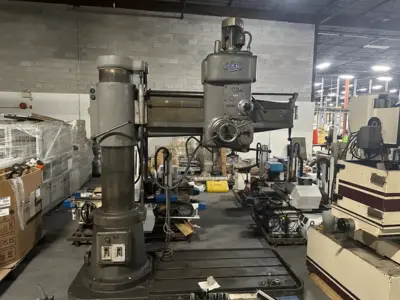

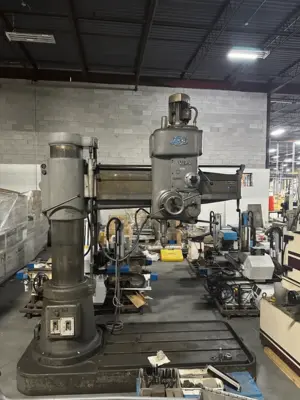

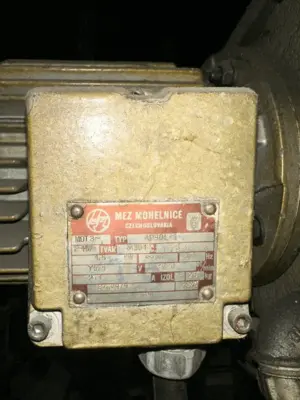

This is a 1971 Mas VR4 radial drilling machine with a drilling capacity of 50mm and an arm length of 1470mm (78" total radial arm length). It features a 75 mm spindle diameter with an MT4 taper and spindle speeds up to 2000 RPM. Spindle feed travel is 310 mm, with a feed rate of 1.58 mm/rev. The vertical travel of the arm is 675 mm. Power requirements are 575V, 60Hz, 3ph, drawing 1.5kW and 2.1A. The machine includes a clamping type that is manual, and the tilting angle of the table ranges from 0 to 90 degrees. The t-slot floor dimensions are 55" x 35". The overall machine dimensions are 36" x 88" x 116".
