USED GROVER 2307 A

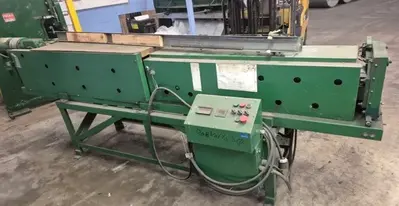

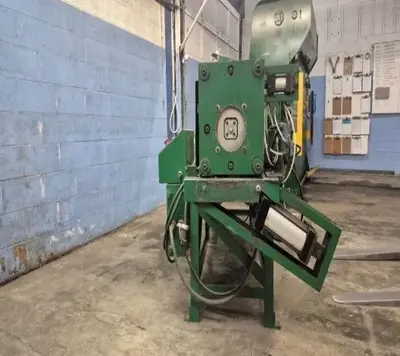

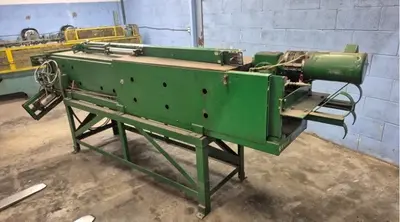

THE GROVER 2307A ROLL FORMER IS A MULTI-STAND MACHINE CONSTRUCTED WITH A HEAVY WELDED STEEL FRAME FOR HORIZONTAL STRIP FEED FORMING. THE POWER REQUIREMENTS ARE 208/230/480V, 60HZ, 3-PHASE. IT INCORPORATES A BALDOR INDUSTRIAL ELECTRIC MOTOR RATED AT 3 HP, OPERATING AT 1,725 RPM, WITH A 145TC FRAME AND A DP (DRIP PROOF) ENCLOSURE. FULL LOAD AMPS ARE 8.5 A AT 208 V AND 230 V, AND 4.0 A AT 460 V. THE MOTOR FEATURES A 1.15 SERVICE FACTOR, CLASS B INSULATION, AND 82.5% NEMA NOMINAL EFFICIENCY. THE DRIVE SYSTEM UTILIZES THIS MOTOR CONNECTED TO A PEERLESS-WINSMITH TYPE SPEED REDUCER WITH A 30:1 GEAR RATIO. THE GEAR REDUCER HAS AN 1,800 RPM INPUT SPEED, AN INPUT HORSEPOWER RATING OF 1.69 HP, AND DELIVERS AN OUTPUT TORQUE OF 1,297 IN-LB. IT OPERATES WITH OIL, AGMA #3 LUBRICANT AND IS RATED FOR 51–110 °F. THE ROLL SHAFTS ARE STEEL WITH BEARING SUPPORT, AND THE ROLL TOOLING CONSISTS OF HARDENED STEEL FORMING ROLLS. THE MACHINE WEIGHS 3,000 LBS AND HAS DIMENSIONS OF 144'' X 36'' X 60''IN.
