USED 2021 SHI HENG MACHINERY SH-1060SE

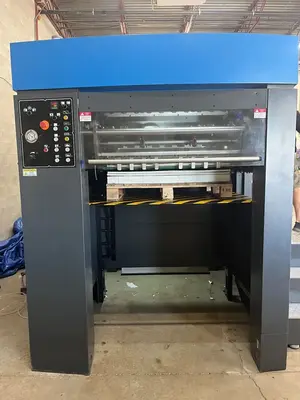

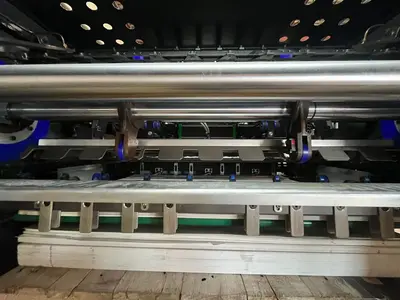

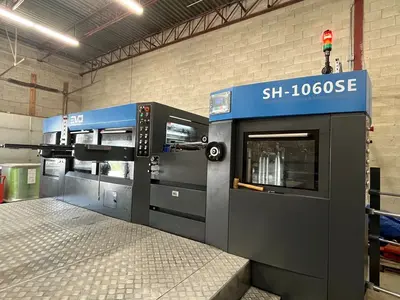

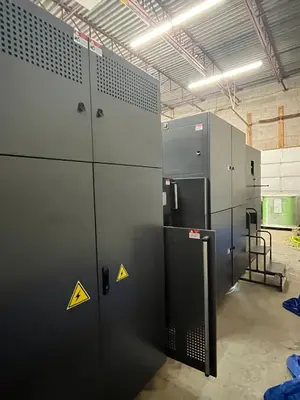

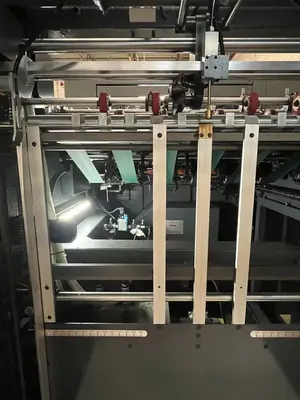

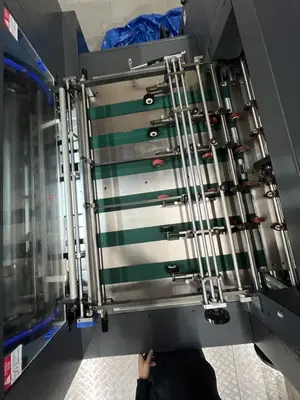

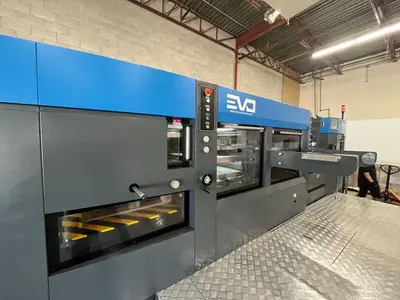

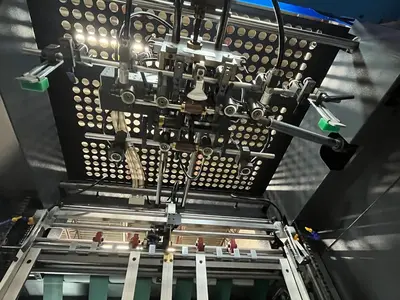

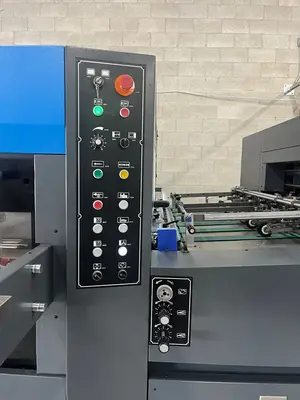

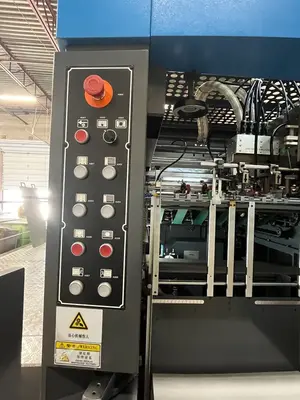

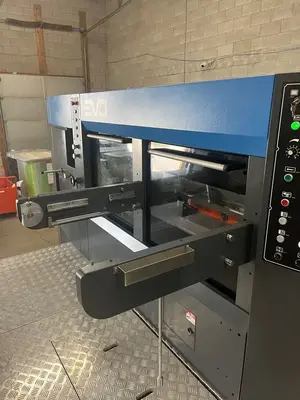

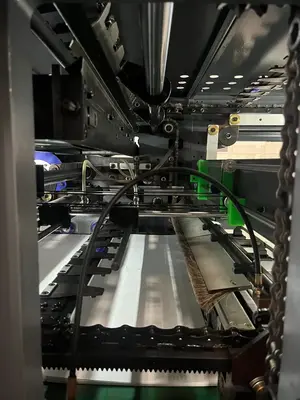

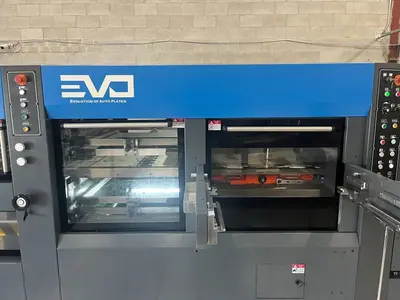

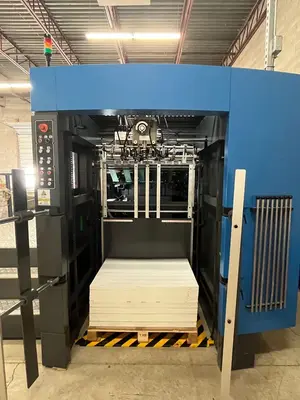

This is a 2021 Shm SH-1060SE automatic die cutting and stripping machine manufactured by Shi Heng Machinery. The machine operates on 380V/50Hz (3 phase) power at 24kW. It can handle a maximum paper size of 1060 × 750 mm and a minimum paper size of 400 × 360 mm, with a maximum die cutting size of 1050 × 730 mm. It is suitable for paper ranging from 80-2000 gsm cardboard and corrugated cardboard up to 4 mm thick, using a minimum blade size of 8mm. The maximum die cutting speed is 8000 revolutions per hour, with a precision of ±0.075mm and a maximum working pressure of 300t. The machine features a maximum feeding pile height of 1700mm including the pallet. Stripping functions include 4 side stripping with gripper side waste, utilizing 3 stripping chases (upper/lower frames pull out) and a second stripping channel for gripper-margin waste, supporting pins or tools. It includes a non-stop feeder with a pre-loading platform and non-stop delivery with brush push-down, jogger device, and auxiliary belt table. Components include Mitsubishi/Toshiba inverters, Mitsubishi/Panasonic PLC, Mosler/Eaton switches and breakers, and Teco motors with a Becker vacuum pump, managed via a full-color HMI touchscreen. The machine dimensions are 240'' x 101'' x 110'' with a weight of 17000 lbs.
