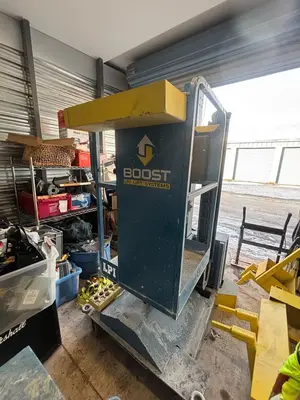

USED 2022 LPI LSO110S1

THE 2022 LPI BOOST LSO110S1 PERSONAL LIFT/VERTICAL WORK PLATFORM IS A SELF-PROPELLED, DRIVABLE, AND STEERABLE SINGLE-OPERATOR LIFT. THIS SPECIFIC UNIT, MANUFACTURED IN 2022, IS POWERED BY A BATTERY-POWERED ELECTRIC DRIVE, THOUGH THE BOOST SERIES IS COMMONLY PNEUMATIC, DESIGNED FOR USE IN HAZARDOUS ENVIRONMENTS SUCH AS PAINT BOOTHS. THE LIFT'S MAXIMUM PLATFORM HEIGHT IS 3 METERS (10 FEET), WHICH PROVIDES A WORKING HEIGHT UP TO 16 FEET, WITH VERTICAL PLATFORM TRAVEL FROM 25 INCHES (LOWERED) UP TO 10 FEET (RAISED). ITS MAXIMUM RATED WORK LOAD, INCLUDING THE SINGLE OCCUPANT, IS 140 KG (300 LBS). THE MACHINE WEIGHS APPROXIMATELY 1,000 LBS AND HAS DIMENSIONS OF 50 IN × 28 IN × 73 IN. WHEN CONFIGURED PNEUMATICALLY, IT REQUIRES A COMPRESSED AIR SOURCE OF 40 SCFM AT 90 PSI, OFFERING A 30-FOOT OPERATIONAL TRAVEL DISTANCE AND A ZERO-TURN RADIUS. TRAVEL SPEEDS ARE RATED AT 40 FEET PER MINUTE ON THE X-AXIS AND 22 FEET PER MINUTE ON THE Z-AXIS. CONTROLS INCLUDE HAND CONTROLS FOR HORIZONTAL AND VERTICAL TRAVEL, PLATFORM CONTROLS FOR UP/DOWN - DRIVE/STEER WITH AN EMERGENCY STOP, AND A BASE CONTROL FOR EMERGENCY DESCENT. THE UNIT IS A SLAB-TYPE MACHINE INTENDED FOR OPERATION ON A HARD, FLAT, AND LEVEL SURFACE, FEATURING A ROBUST, DIRECT-LINKED LIFT MECHANISM.
