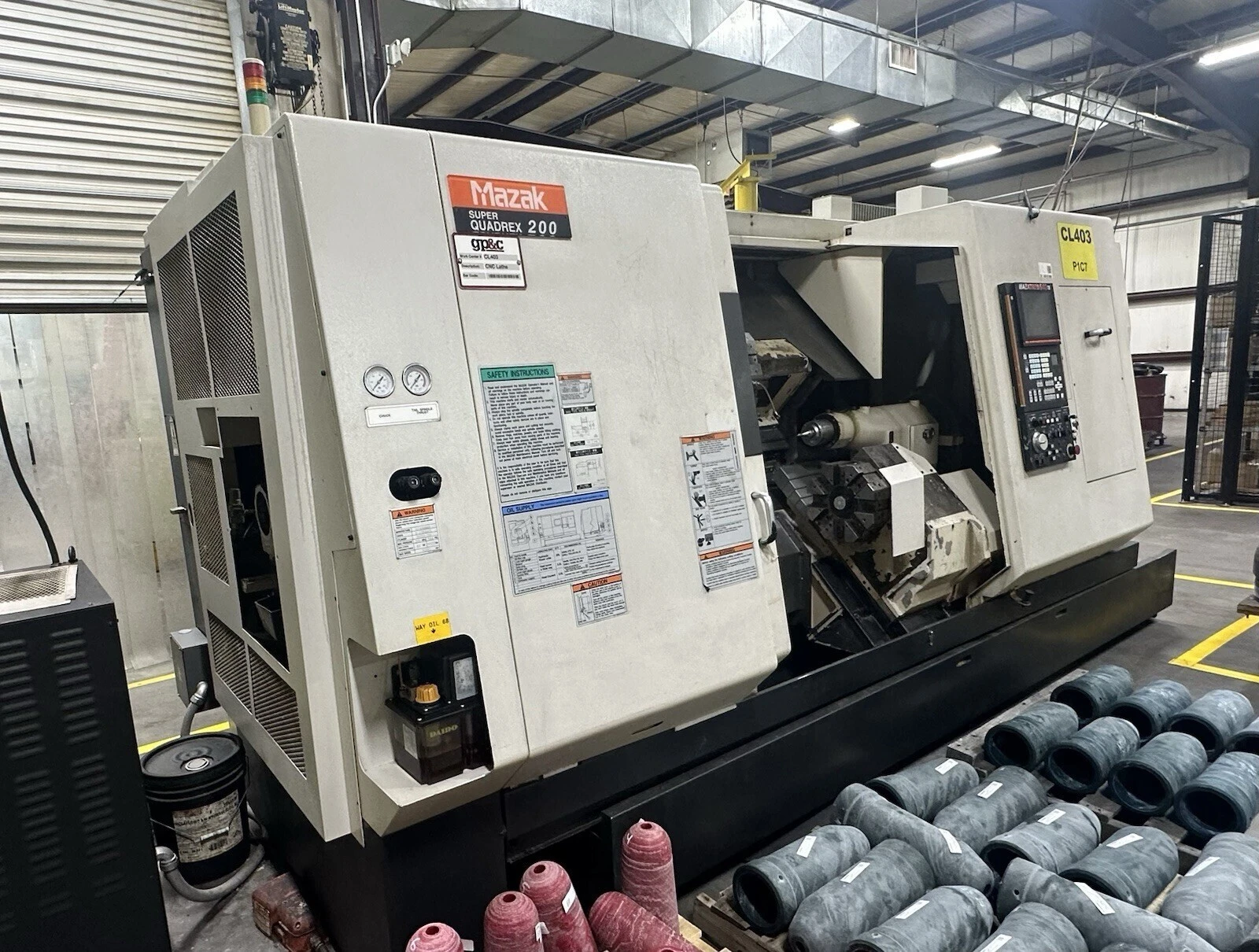

USED 2010 MAZAK SUPER QUADREX 200

Used CNC Lathe. Featuring a 20.5" swing, 21" machining length, and 30 hp power. Includes MAZATROL 640T. Ideal for precision tasks up to 4,000 RPM.

MAZATROL PC-FUSION-CNC 640TE CONTROL
EIA/ISO CODE INPUT FUNCTION
10.4" COLOR LCD
PCMCIA INTERFACE(2-SLOT)
IC MEMORY CARD INTERFACE
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN & MODEM)
MAIN SPINDLE MOTOR AC 22KW(30HP)
SPINDLE SPEED 5000 RPM
UPPER 12D/LOWER 8D TURRET
STANDARD TOOLING PACKAGE
8" THRU-HOLE CHUCK B-208A615
S1552 CYL DRAWTUBE I.D.= 2.04"
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
TOOL EYE (AUTOMATIC)
MAZAK STANDARD COLOR (BLACKGRAY)
PROGRAMMABLE
TAILSTOCK(BUILT-IN MT4)
MULTITAP TRANSFORMER
RELOCATION DEVICE
WINDOWS 2000 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
TURRET AIR BLAST (UPPER & LOWER)
HIGH POWER COOLANT (1.1KW X 2)
ENG# 39190 - A6-16C COLLET CHUCK DPT#13
CHIP CONVEYOR,SIDE 1000U(40")
UNIV HINGE TYPE DPT #43
SIGNAL TOWER (3 COLORS LIGHTS,KOD)
RE-THREADING
DISTANCE BETWEEN CENTERS AND Z-AXIS TRAVEL HAVE TO BE VERIFIED
