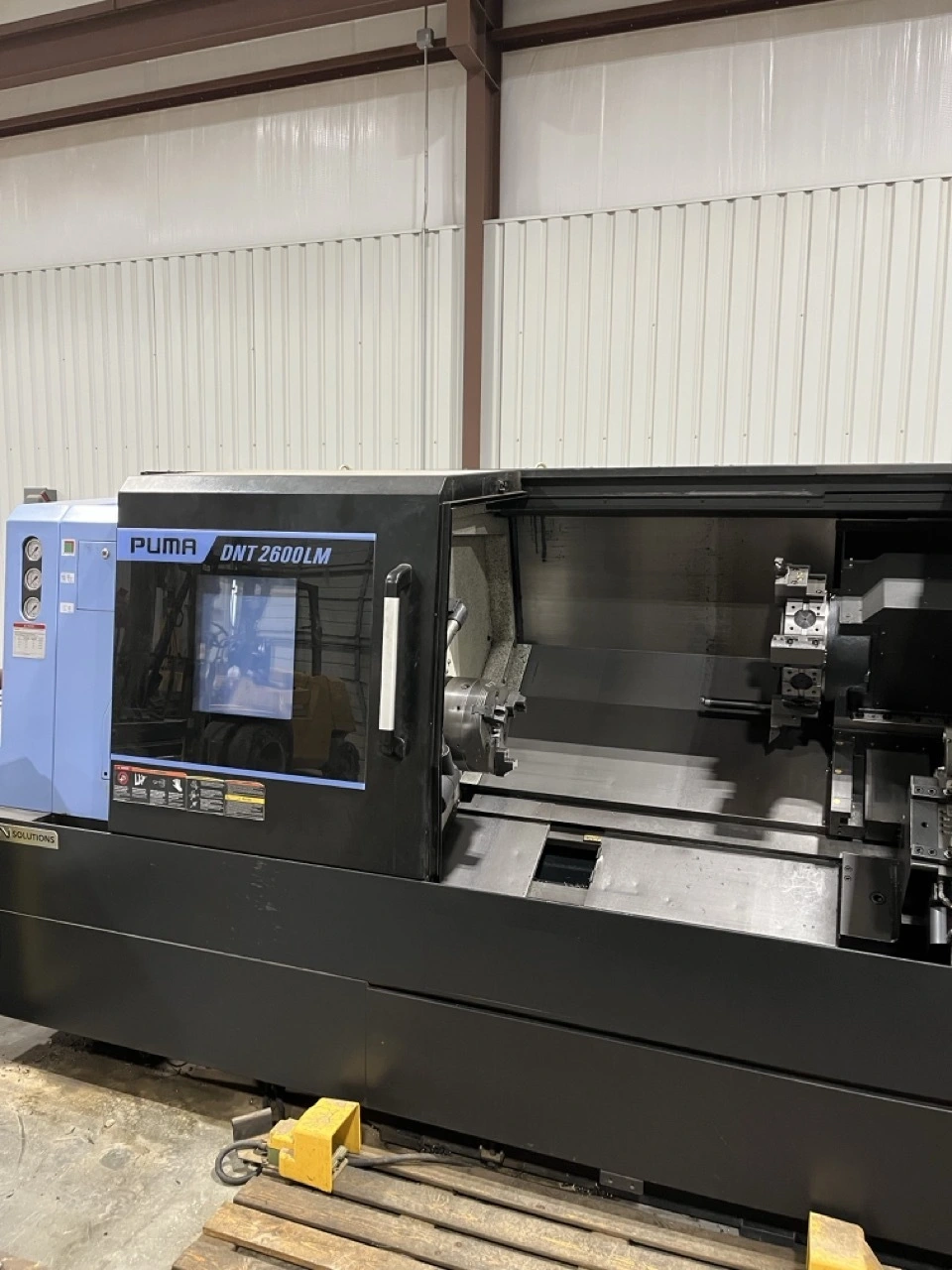

CNC Lathe, used, featuring a 44" machining length, 10" chuck, and 35 hp power. Equipped with Fanuc 0i-Plus Control, chip conveyor, and more. Cutting hours: 585.
| Machining Length | 44" | 1,117.6 mm |
| Chuck Size | 10" | 254 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 15" | 381 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 150″x70″x72″ | 150″x70″x72″ |
| Weight | 10,913 lbs | 10,913 lbs |
Max. Turning Diameter: 15″
Max. Turning Length: 44″
Spindle Bore: 3.23″
Chuck Size: 10″
X-Axis: 10.2″
Z-Axis: 43.3″
Max. Spindle Speed: 3,500 RPM
Spindle Motor: 35 HP
Turret Capacity: 12
Machine Weight: 10,913 lbs
Dimensions: 150″x70″x72″
Cutting Hours: 585
Fanuc 0i-Plus Control w/iHMi Touch Screen
Turbo Side Discharge Chip Conveyor w/Variable Speed
Eppinger Z-Axis Milling Head
Schunk ROTA THW3 265-81 Power Chuck
Automatic Steady Rest (0.78″-6.50″)
Hydraulic Valve Package
