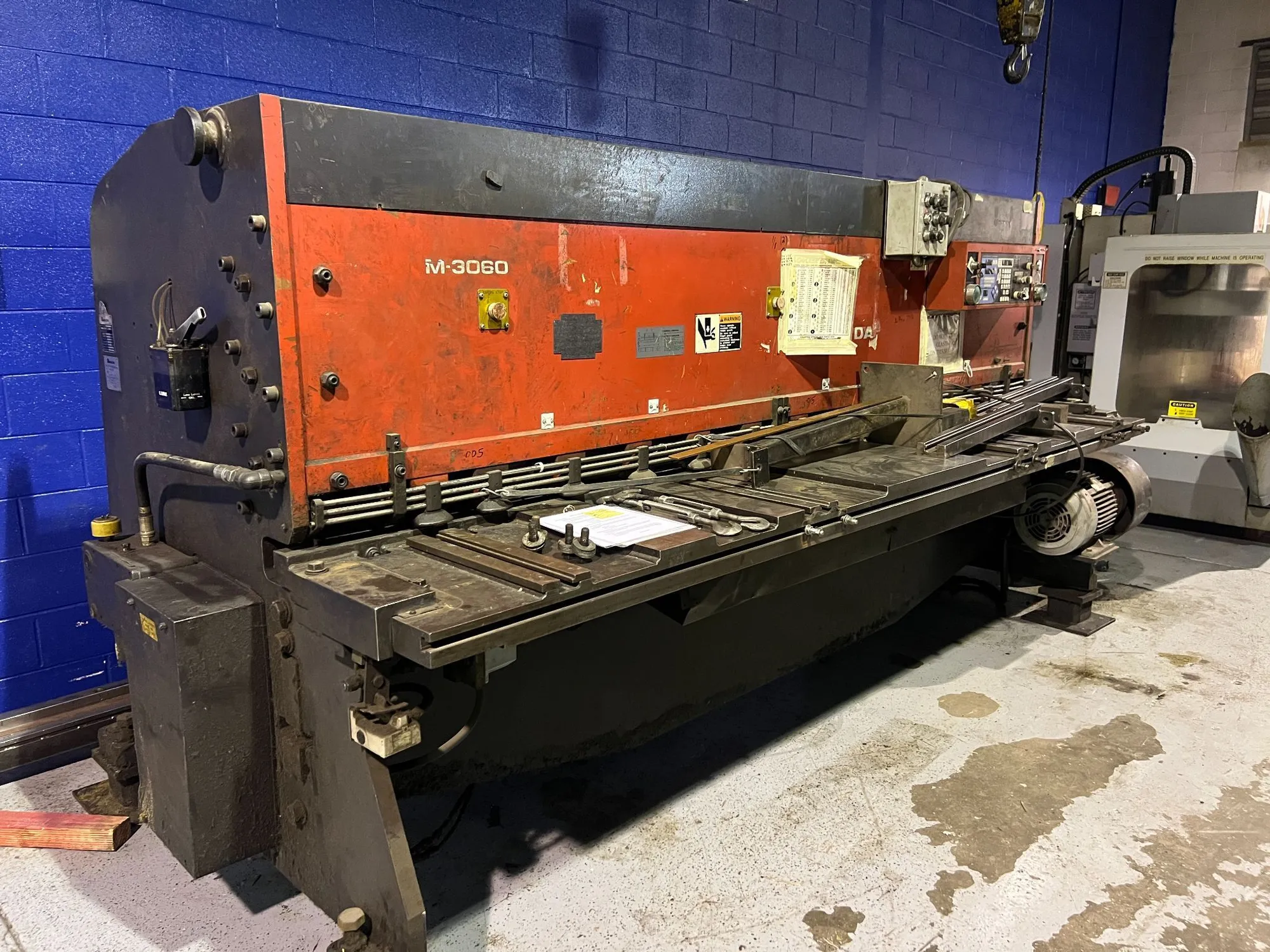

USED 1998 AMADA M-3060

Used 1998 Amada Model M-3060 Shear. Features: 10-ft bed, 0.25" capacity, FOPBG, 7.5 HP motor, and more. Equipped with squaring arm, extension arms, and rear part conveyor. Heavy-duty at 18,522 lbs. Ideal for precise metal cutting tasks.

s/n: 30601111

Max Thickness Capacity: 0.235”
Max Cutting Length: 120.8”
Blade Length: 133”
Distance Between Housings: 124”
Gap Depth: 11.81”
Rake Angle: 1º28’
Strokes Per Minute: 60 SPM

Equipped With
Front squaring arm
(2) 32” front extension arms
(13) Hold downs
39" Front Operated Powered Programmable Back Gage
Rear Part Conveyor
Main Motor: 7.5 HP
Lift Table

Machine Weight: 18,522# (Catalog Spec)
