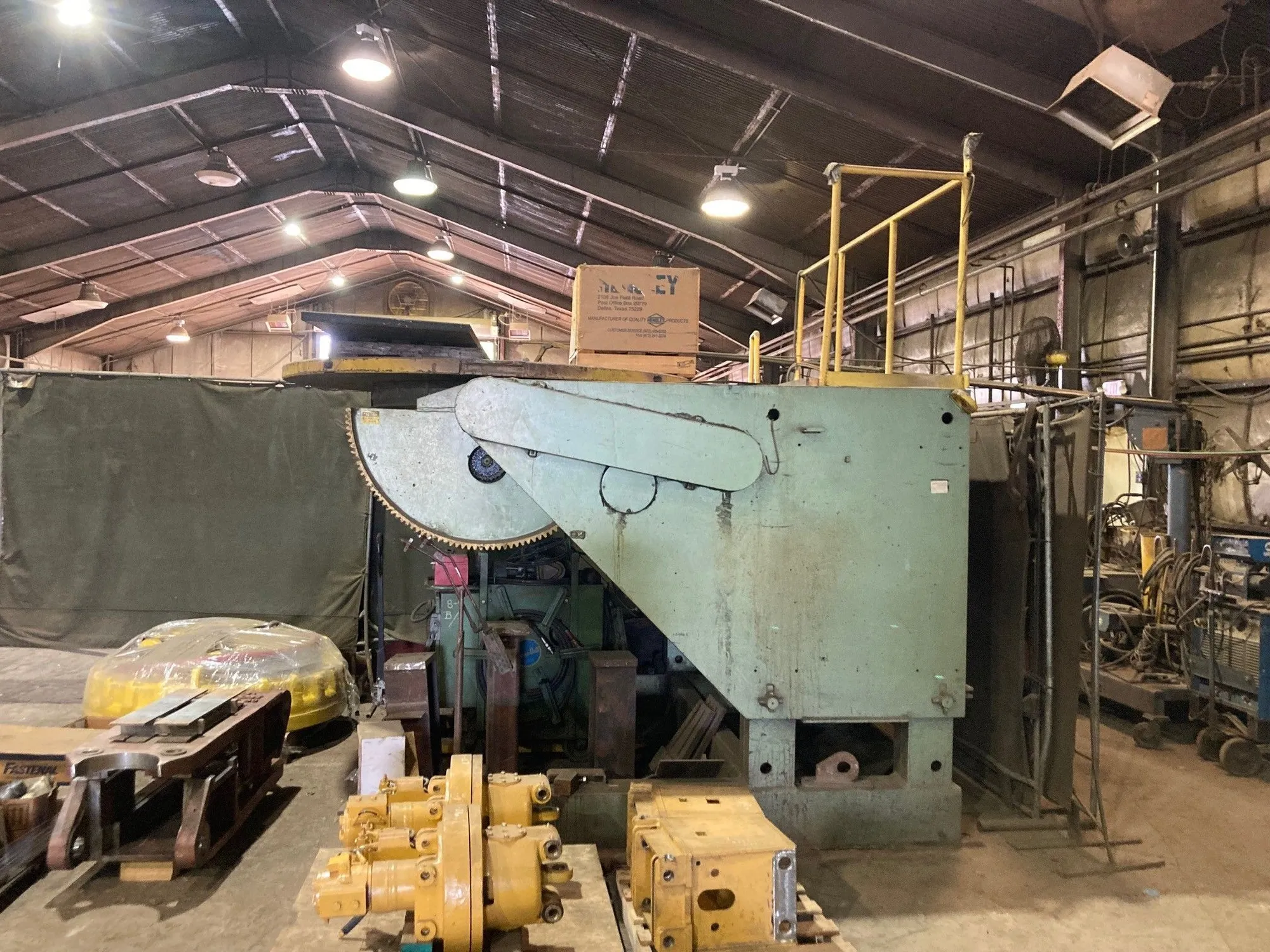

USED ARONSON HD400A

40,000 LB ARONSON WELDING POSITIONER
Serial No. 7960, Model HD400A

EQUIPPED WITH:
360-Degree Variable-Speed Power Rotation
135-Degree Power Tilt
84” Table
Manual Adjustable Table Elevation (Peg-Type)
Pendant Control (w/Vari-Speed Dial)

CATALOG SPECIFICATIONS:
Table Dimensions 84"
Table Weight at 12" Eccentricity 40000 LBS
Table Weight at 18" Eccentricity 31000 LBS
Table Weight at 24" Eccentricity 25000 LBS
Table Weight at 30" Eccentricity 21500 LBS
Table Weight at 36" Eccentricity 18500 LBS
Table Weight at 42" Eccentricity 16400 LBS
Table Weight at 48" Eccentricity 14600 LBS
Table Weight at 54" Eccentricity 13200 LBS
Table Weight at 60" Eccentricity 12000 LBS
Rotation Torque, Inch Pounds 480,000 LBS
Tilt Torque, Inch Pounds 830,000 LBS
Table Rotation Speed, Variable .012 to .50 RPM
Table Rotation, Degrees 360-DEGREES
Table Tilt, Degrees 135-DEGREES
Vertical Table Height, Maximum 119"
Vertical Table Height, Minimum 71"
Overall Dimensions, L x W 124” x 100”

IN PLANT UNDER POWER OHIO LOCATION
