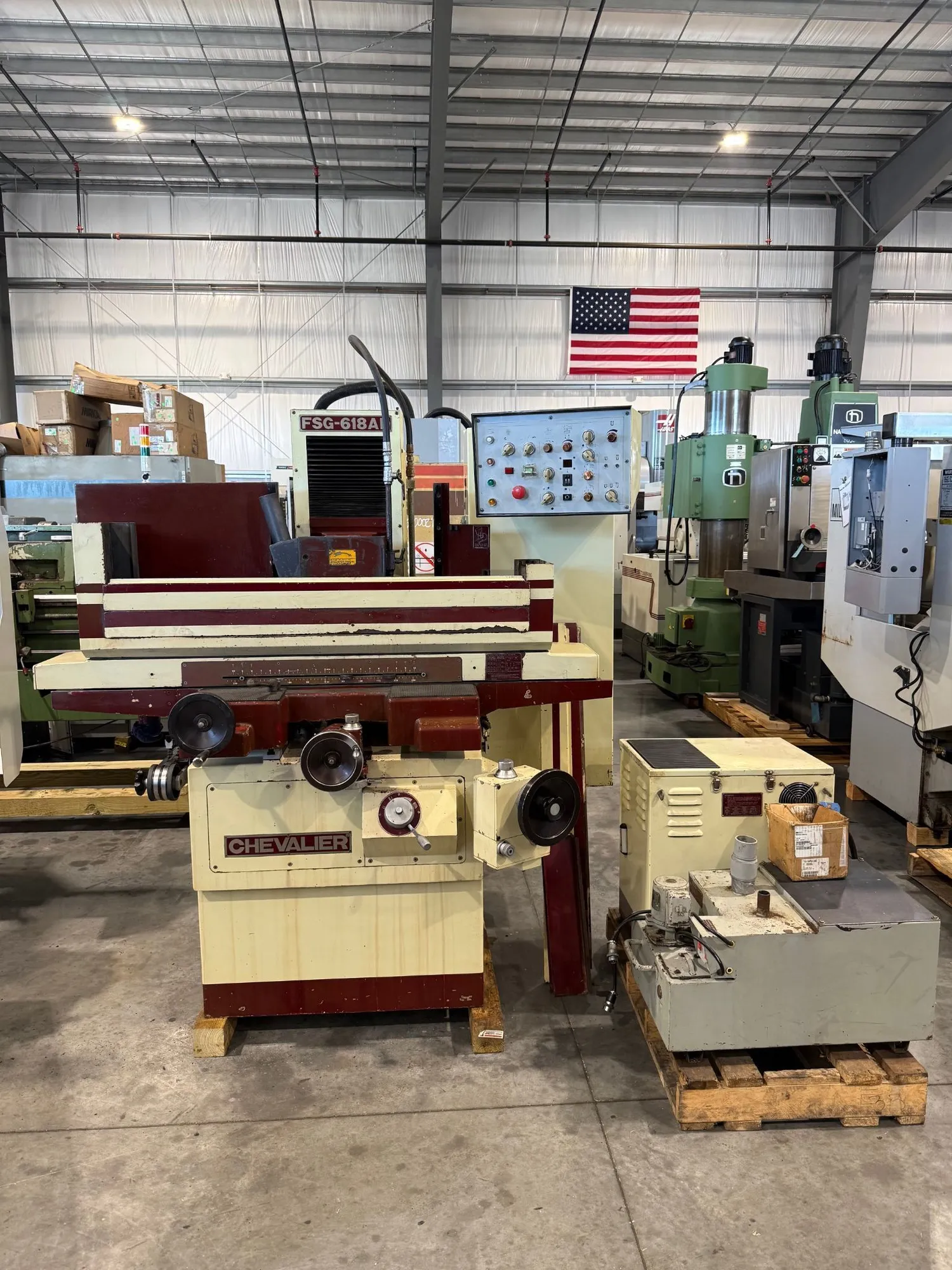

USED CHEVALIER FSG-618AD

CHEVALIER FSG-618AD 6” x 18” 3 Axis Automatic Surface Grinder #8152
Reference # 8152
Model # FSG-618
Serial # 02A-0012
Table size- 6’’ x 18’’
Max grinding length- 18”
Max grinding width- 6”
Max distance from table surface to spindle centerline- 17”
Hydraulic table travel- 19-3/4”
Manual table travel- 21”
Table speed variable- 16 – 82 F.P.M.
Crosswise rapid travel- 48 I.P.M.
Crosswise auto increment- 0.02 – 0.24”
Crosswise max auto travel- 9”
Crosswise max manual travel- 9-1/2”
Spindle speed- 3,450 R.P.M. (60 H.Z.)
Grinding wheel diameter- 8”
Grinding wheel width- ½”
Grinding wheel bore- 1-1/4”
