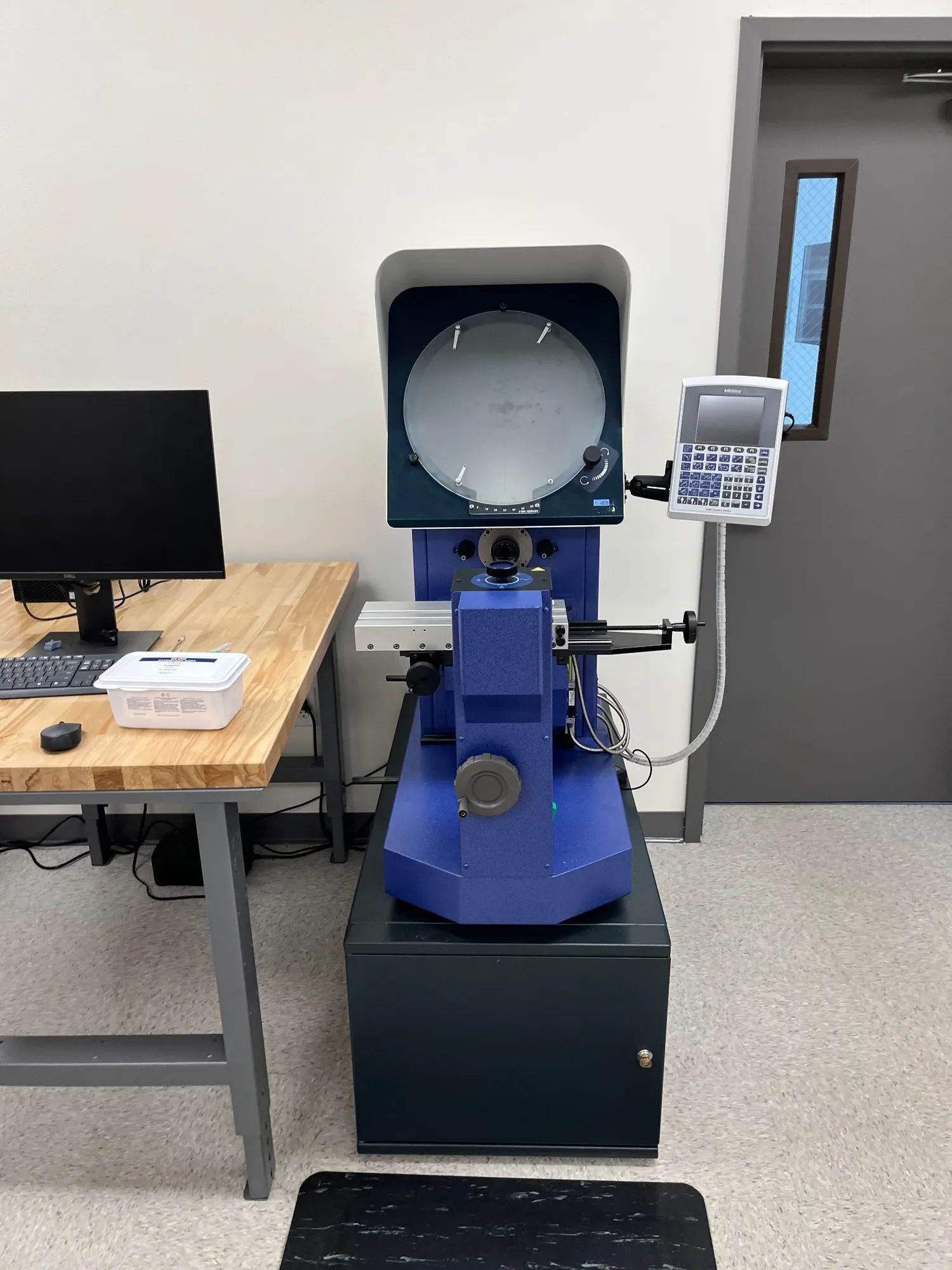

Mitutoyo PH-A14 Horizontal Profile Projector
| Dia. of Screen | 14" | 355.6 mm |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Table Size: 16" x 6"
X-Axis Travel: 8"
Y-Axis Travel: 4"
Workpiece Load: 100 lbs
Resolution: .00005"
Projected Image: Inverted
Screen Diameter: 14"
Screen Material: Fine Ground Glass
Reference Line: Cross Hair
Screen Rotation: +360 Degrees, Fine Feed and Clamp
Angle Display: Vernier Reading, Resolution: 2'
Projection Lens: 10x
Magnification Accuracy (Contour Illumination): +0.1% or Less
Magnification Accuracy (Surface Illumination): +0.15% or Less
Light Source: Halogen (24V 150W)
Optical System: Telecentric System
Functions: Heat Absorbing Filter & Cooling Fan
Power supply: 120VAC, 50/60Hz
Dimension: (W x D x H) 24.1” x 48.8” x 45.6” (612 x 1240 x 1158mm)
Weight: 308lbs (140Kg)

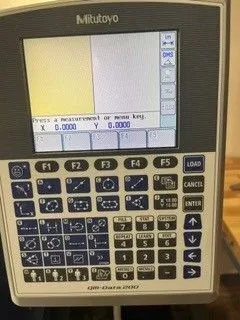

With DRO
