| size | 15" Chuck | 15" Chuck |
| Swing | 40" | 1,016 mm |
| Machining Length | 40" | 1,016 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

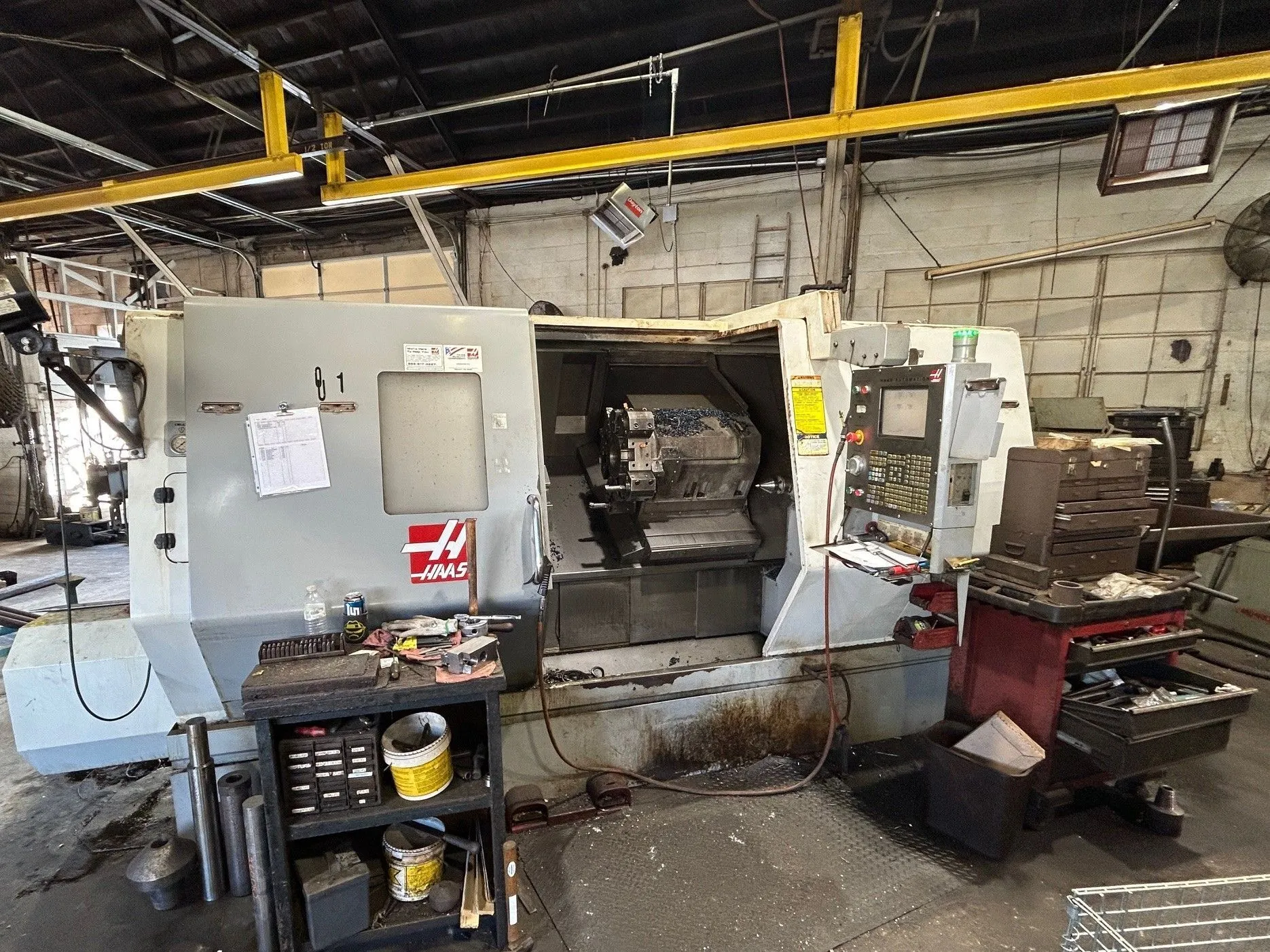

Haas SL40 T 2 Axis Slant Bed CNC Lathe (2005)
Max Turning Diameter : 25.5″
Max Swing Over Bed : 40.0″
Max Turning Length: 44.0″
Max Bar Capacity : 4.0″
Travels:
X Axis Travel : 17.0″
Z1 Axis Travel : 44.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 325 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 40 HP
Turret Capacity: 10 Stations
Turret Index Time: 1 Second
Tool Holders Type: BMT
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
Tailstock Travel: 42″
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 150″ x 102″ x 104″ High Approx.
Machine Weight: 25,000 lbs Approx.
Haas CNC control system
15" Chuck
Chip conveyor
Tool presetter
Hydraulic tailstock
Coolant system
All drives have been replaced in the last 5 years, the transmission and spindle motor have been replaced along with actuator for the chuck and all belts as needed. It will hold .005 or better. All service has been performed by our Haas dealer
