JET Large Spindle Bore Lathes are built for big bore turning and heavy-duty work where control, safety, and rigidity matter most. Designed to help shops do more with large diameter material, these machines combine true large spindle capacity, fast stopping, guarded operation, and UL 987 Certified safety.
| Lathe Type | Large Spindle Bore | Large Spindle Bore |
| Swing Over Bed | 16" | 406.4 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Spindle Bore | 3.15" | 80.01 mm |
| Spindle Nose | D1-8 | D1-8 |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | 26-1500 RPM | 26-1500 RPM |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Voltage | 230v | 230v |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts/ Labor

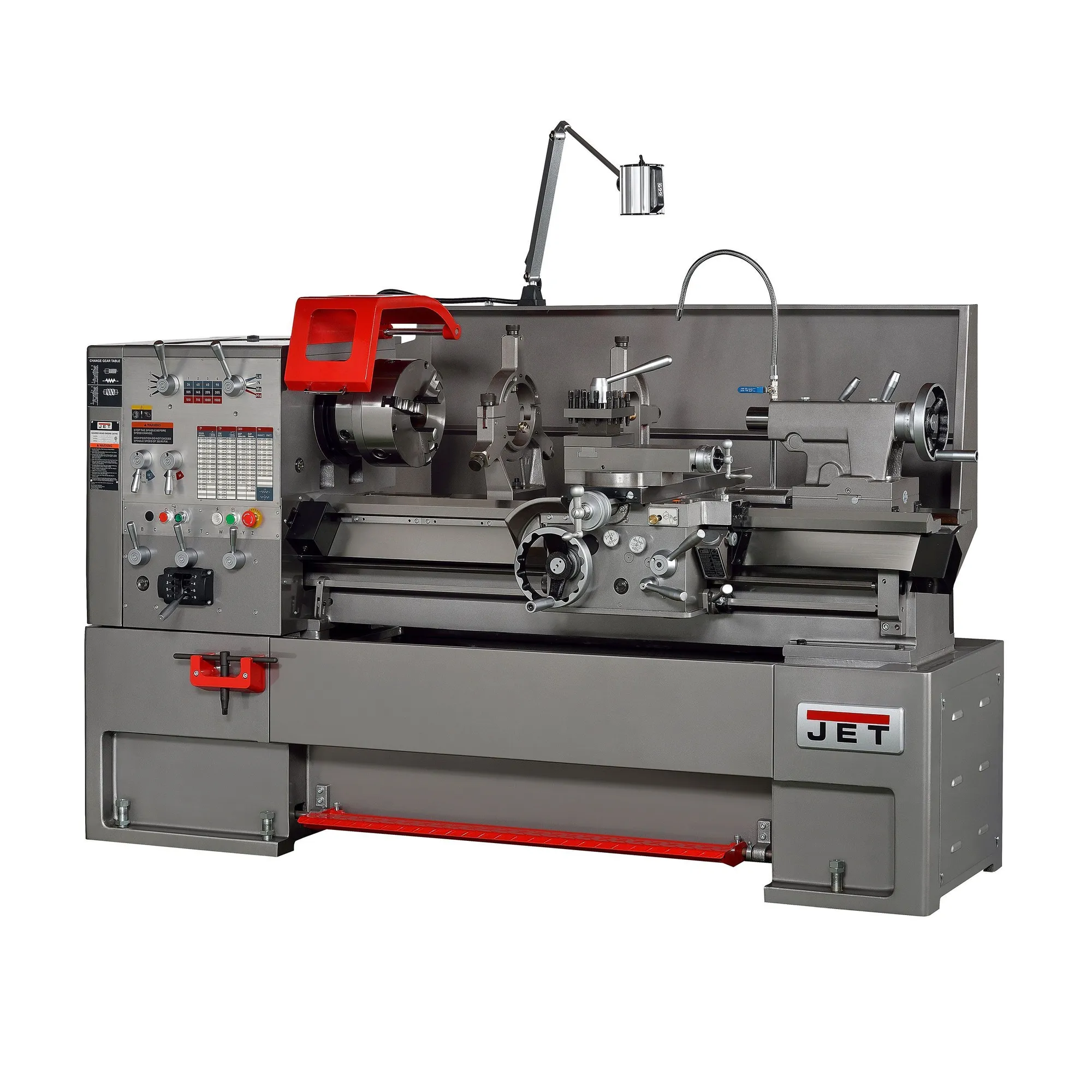

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Collet Closer
Taper Attachment
2-Axis DRO
