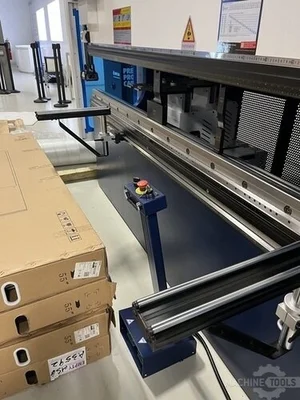

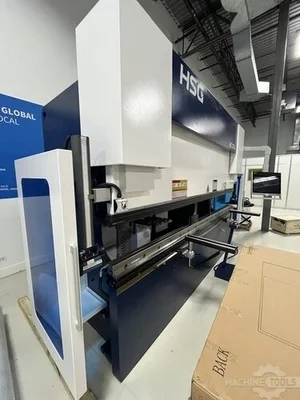

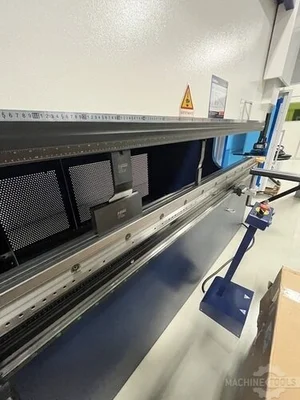

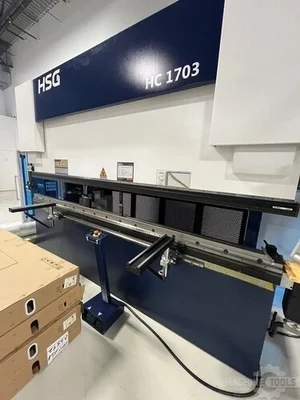

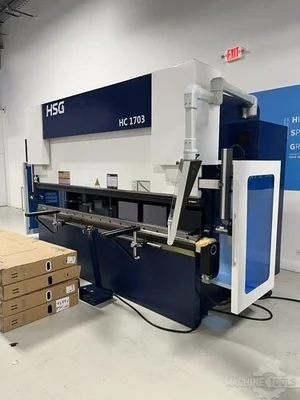

USED HSG HC1703

Brand – HSG Model – HC1703 Type – Press Brakes New – In Stock

Tonnage: 170 T
Type: HYD
Overall Length: 10.5′
Between Housings: 8.85′
Stroke: 7.87″
# Axis: 8
Dimensions: 173″ L x 67″ W x 96.5″ H
Weight: 23,500 lbs
Control: CNC (DELEM DA69S)
Bending Force: 170 metric tons / 187 US tons Bending Length: 3200 mm / 126″ Height of Working Table: 900 mm / 35.4″ Distance Between Columns: 2700 mm / 106.3″ Throat Depth: 400 mm / 15.7″ Slider Stroke: 200 mm / 7.87″ Maximum Opening Height: 530 mm / 20.9″ Rapid Descent Speed: 180 mm/sec / 7.09 in/sec Return Speed: 150 mm/sec / 5.91 in/sec Working Speed: 10 mm/sec / 0.39 in/sec X-Axis Back Gauge Travel: 0–600 mm / 0–23.6″ Maximum Operating Speed of X Axis: 400 mm/sec / 15.75 in/sec Y Axis Positioning Accuracy: ≤ ±0.02 mm / ±0.0008″ Y Axis Repetition Accuracy: ≤ ±0.01 mm / ±0.0004″ R Axis Stroke: 150 mm / 5.91″ Maximum Running Speed of R Axis: 100 mm/sec / 3.94 in/sec Working Accuracy – Straight Line: ±0.2 mm/m / ±0.0024″ per foot Angle Accuracy: ±0.5° Controlled Axis: 8 + 1 Power of Main Motor: 18 kW Fuel Tank Capacity: 200 L / 52.8 gallons Dimensions (L × W × H): 4400 × 1700 × 2450 mm / 173.2″ × 66.9″ × 96.5″ Total Weight: 10,500 kg / 23,150 lbs

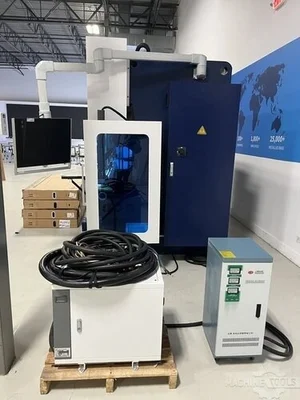

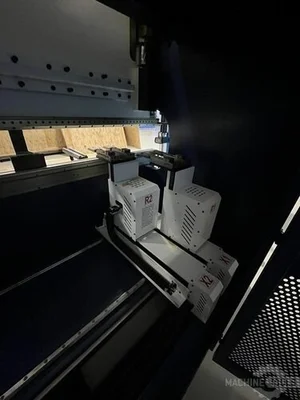

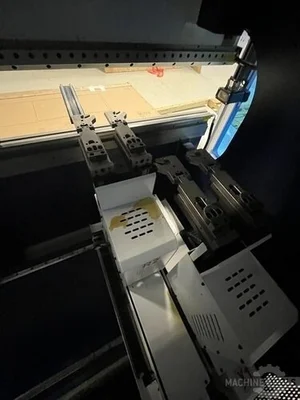

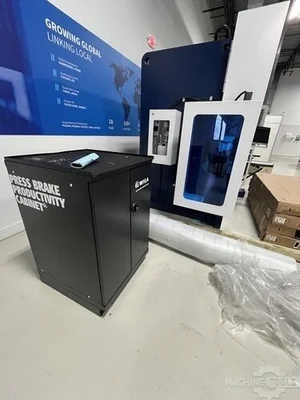

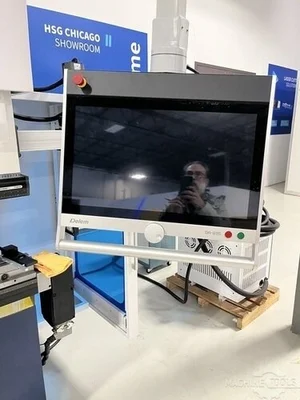

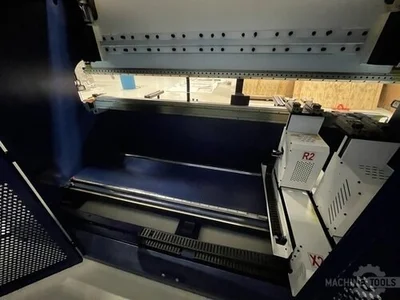

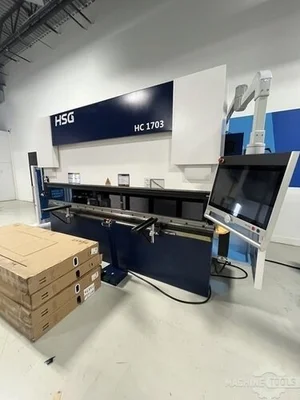

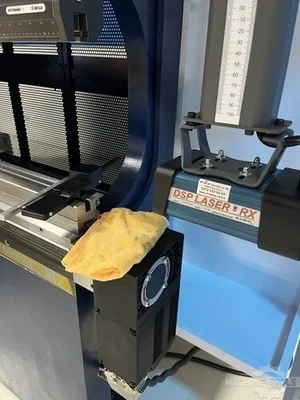

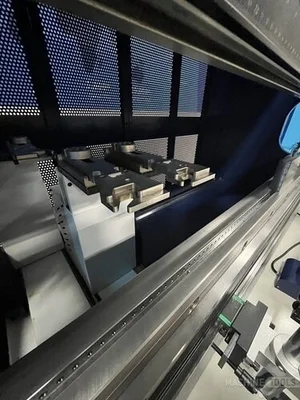

DELEM DA69S Control w/24″ LED Display WILA Hydraulic Clamping WILA Hydraulic Station WILA Tool Cabinet Light Curtains Transformer & Voltage Stabilizer 8+1 Axis Backgauge System
