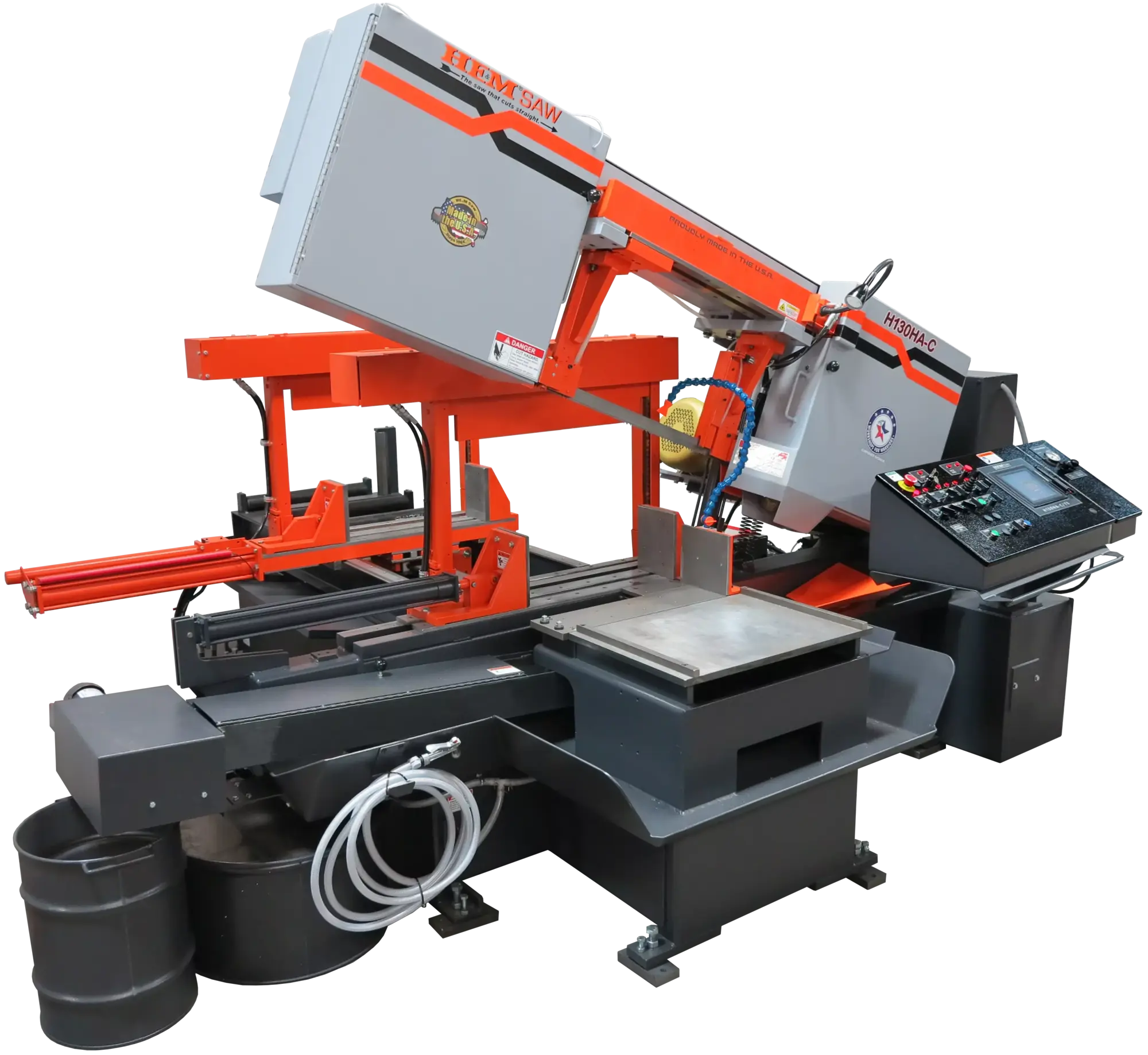

NEW HEM H-130A

California, United States
778Listings|107Followers
Overview
Horizontal Band Saws

The H130A is known for rugged and dependable band sawing. The 10 HP motor powers the 1½” blade and a 2 HP hydraulic motor provides adjustable clamping force, powered guide arm, and powered blade tension. A 48” multi-index servo twin ball-screw bar-feed, Cut Watcher® System, and chip auger are standard features.

Technical Highlights
Main Capacity: 0-19" W x 0-10" H
Bar-feed: 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Blade: 17' 0" L x 1.5" H x .050"
Motor: 10 HP
Hydraulic Motor: 2 HP
Operation: Automatic

Specs
Rect-Cap (H)
10"
254 mm
Rect-Cap (W)
19"
482.6 mm
Rounds-Cap
16"
406.4 mm
Square-Cap
16"
406.4 mm
Power
10 hp
7.5 kW
Type (Auto, Manual, Semi)
Auto
Auto
Blade Width
1.5"
38.1 mm
Blade Length
204"
5,181.6 mm
