High efficiency machining

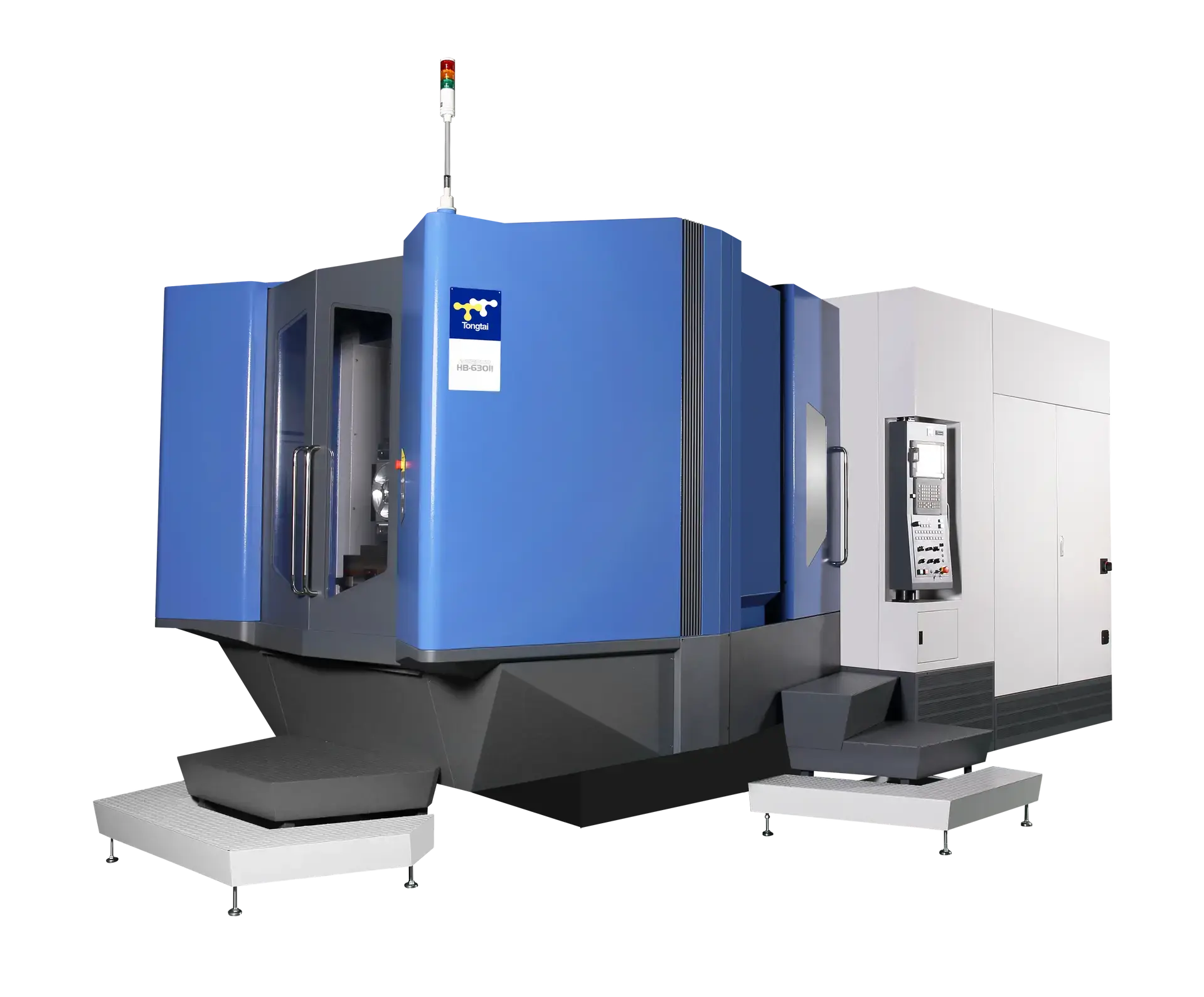

HB-630 has excellent appearance and friendly human-machine interface. It improves
machining efficiency by decreasing non-cutting time and becomes a high
cost-performance rate machine.
High torque & power spindle
10,000 rpm build-in spindle is equipped with high power 25/30 kW and high torque
420 Nm as standard. This spindle is suitable for machining materials of aluminum
alloy, cast iron and steel. The 1,050 Nm high torque gear type spindle is also available
on HB-630 for machining cast iron, steel and tough materials. HB-630 is applied
mainly in the industries of automobile, construction machinery, agriculture machinery
and general parts.
| X | 1,050 mm | 41.339" |
| Y | 850 mm | 33.465" |
| Z | 970 mm | 38.189" |
| Power | 30 kW | 40.2 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Taper | BT50 | BT50 |
| Pallet-W | 630 mm | 24.803" |
| Pallet-L | 630 mm | 24.803" |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
