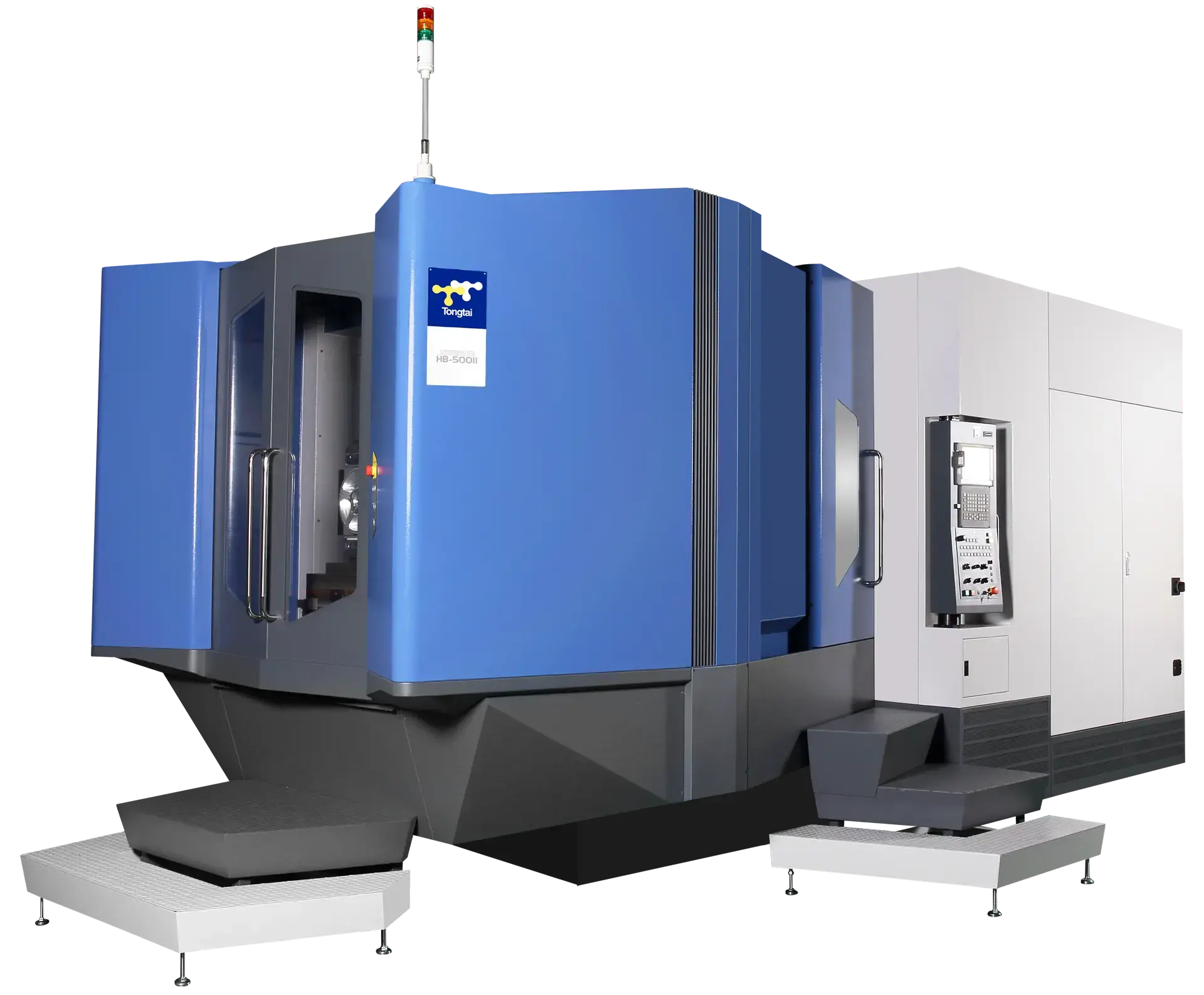

NEW TONGTAI HB-500II

Texas, United States
970Listings|31Followers
Overview
Horizontal Machining Centers

High efficiency machining
HB-5001l has excellent appearance and friendly human-machine interface. It improves machining efficiency by decreasing non-cutting time and
becomes a high cost-performance rate machine.

High torque & power spindle
10,000 rpm build-in spindle is equipped with high power 25/30 kW and
high torque 420 Nm as standard. This spindle is suitable for machining
materials of aluminum alloy, cast iron and steel. HB-5001l is applied mainly
in the industries of automobile, construction machinery, agriculture
machinery and general parts.

Specs
X
800 mm
31.496"
Y
710 mm
27.953"
Z
710 mm
27.953"
Power
22 kW
29.5 hp
RPM
10,000 RPM
10,000 RPM
# ATC
60
60
Taper
BT50
BT50
Pallet-W
500 mm
19.685"
Pallet-L
500 mm
19.685"
# Axis
4
4
Control
CNC (Fanuc)
CNC (Fanuc)
