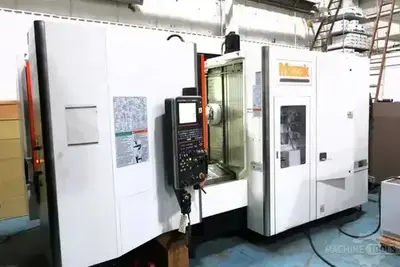

CNC Horizontal Machining Center
| X | 22.05" | 560.07 mm |
| Y | 24.8" | 629.92 mm |
| Z | 25.2" | 640.08 mm |
| Power | 47 hp | 35 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
Request a Quote
Add to Cart
Pallet Size (Millimeters): 400
Pallet Size: 15.74" x 15.74"
X-Axis Travel: 22"
Y-Axis Travel: 25.2"
Z-Axis Travel: 25.2"
Tool Magazine Capacity: 60 ATC
Spindle Speed: 18,000 RPM
Spindle Taper: CAT 40
Control: Mazatrol Matrix Nexus 2
Pallet Indexing: Full 4th Axis
Spindle Motor: 25/23 HP
Chip Removal: Chip Conveyor
Coolant: High Pressure Coolant System
Machine Dimensions: 87" x 207" x 106.8"
Machine Weight: 23,584 Lbs
Coolers for Ball Screw (X/Y/Z-Axis): Enclosed Coolant and Splash Cover
Mazak Standard Color (F Whites/s Black): Safety Cover for 2 Pallet Changer
Spindle Chiller Unit / Absolute Positioning System: Standard Tap Pallet (w/o Edge Locators)
Background Tool Path Check: EIA/ISO Code Input Function
Roller Guides: Work Light
Flood Coolant System
