These ductwork prep machines automatically follow any edge – curved or straight. Use the convenient table slot to turn up a "starting flange" and let it go! A calibrated dial can be set for radii as small as 3-1/4" (or 2" when auto-guide is deactivated). Automatically flange 16 to 26 gauge material at speeds of 18 fpm. A non-releasing type head is suitable for open-end fittings, straight and irregular curves.
Standard with Lockformer quality construction, this machine has an industrial electric motor, and an arc-welded steel stand protected with Lockformer’s top-quality primer and paint finish.
| Max Thickness | 0.0598" | 1.5189 mm |
Brand: Lockformer

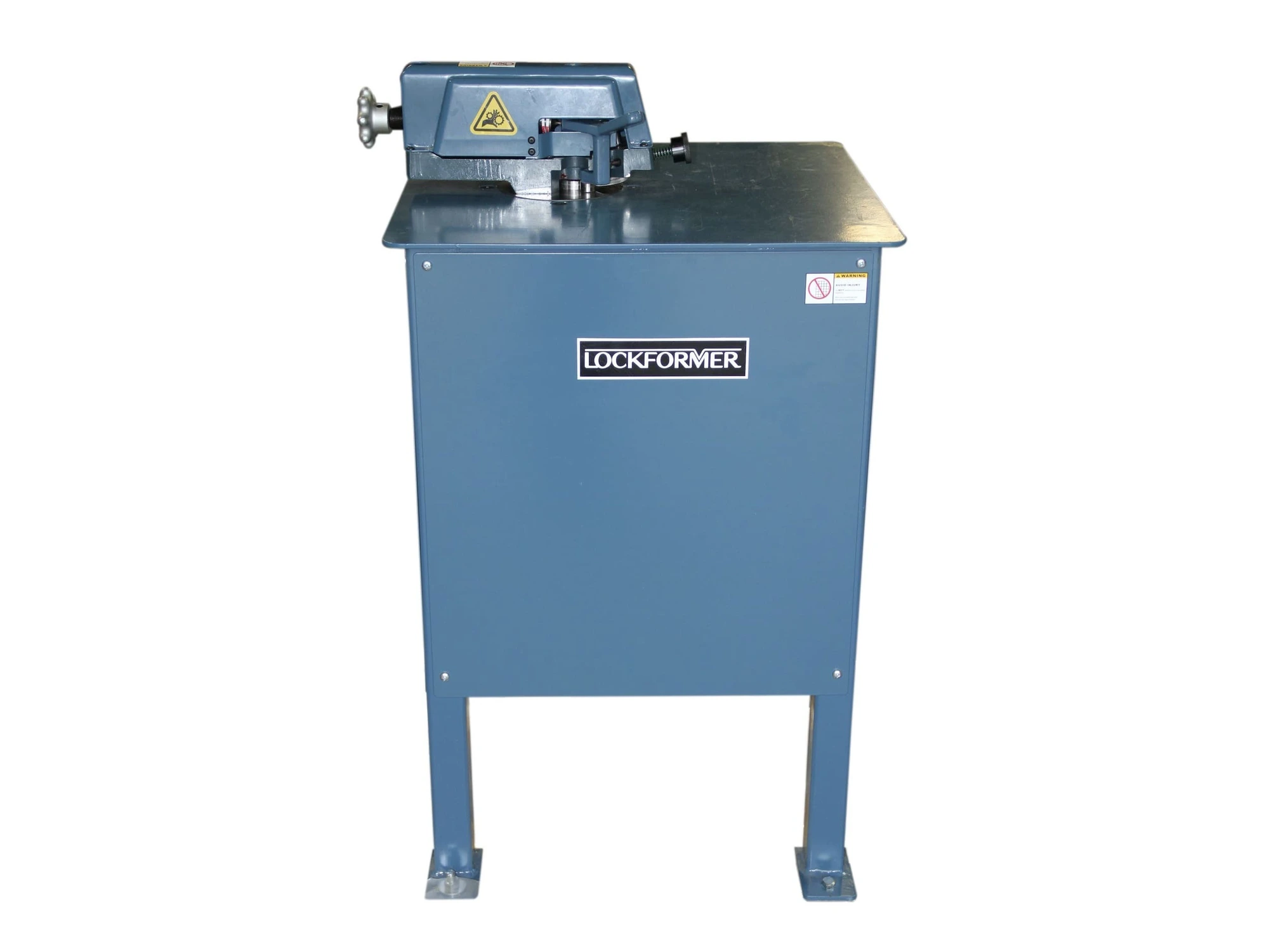

Model: Auto_Glide Flanging Machine Model 16
Type: Flanging Machine
Capacity: 16-26 Gauge
FPM: 18
Radii: as small as 3-1/4" (or 2" when auto-guide is deactivated)
Motor/Voltage: 3/4 hp, 115/230 volts, 60 cycle, single phase, A.C. 1,800 RPM
Dimensions/Weight: Length: 24" x Width: 24" x Passline: 34"
Weight: 225 lbs.
Equipped With:
A non-releasing type head is suitable for open-end fittings, straight and irregular curves.
TERMS:
FOB FACTORY, Cedar Rapids, IA, Includes Manufacturer’s 1-Year Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
