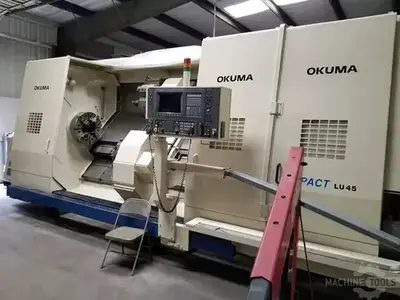

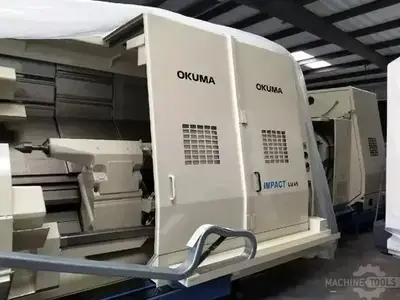

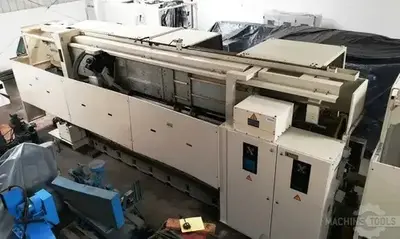

CNC Lathe
| Swing | 35.59" | 903.99 mm |
| Machining Length | 39.34" | 999.24 mm |
| # Axis | 4 | 4 |
| Chuck Size | 19" | 482.6 mm |
| Bar Capacity | 5.12" | 130.05 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.98" | 659.89 mm |
| Tailstock | Yes | Yes |
Request a Quote
Add to Cart
Chuck Size: 24"
Bar Capacity: 10.23"
Swing: 33"
Turning Diameter: 23/18"

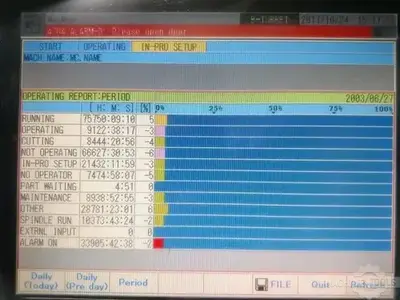

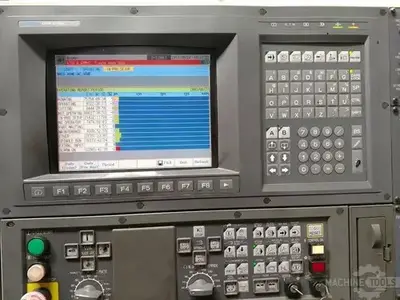

Control: OSP-E100L
Distance Between Centers: 121"
Chip Removal: Chip Conveyor
Z-Axis Travel: 120"
X-Axis Travel: 26"

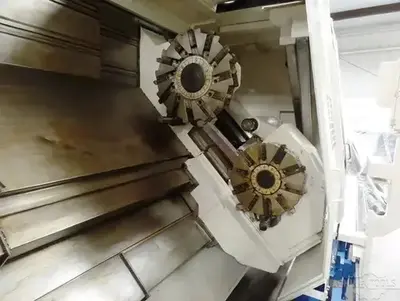

Turret Stations: 12 Stations
Follow Rest: Yes, on the lower turret
Spindle Bore: 10.23"
Spindle Nose: A-2-20
Quill Diameter: 5.12"/MT No. 5
Spindle Speed: 900 RPM
Main Motor: 50 HP/60 HP (Cont./30 Min)
Power Requirement: 220/480/3/60
Programming: Conventional 2-Axis Programming Steps and Language/Conventional 2-Axis Programming Steps and Language/OSP Makes Conversions for Lower Turret/Machining is Executed in the Order of “P-codes” (P1-Pn) as Assigned by the Programmer
Machine Weight: 56,217 Lbs
(2) 24” Noble 4-Jaw F&R with 12.5” Bore: Dual Turret
