CNC Lathe
| Swing | 26.8" | 680.72 mm |
| Machining Length | 24.3" | 617.22 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 15.3" | 388.62 mm |
| Tailstock | Yes | Yes |
Request a Quote
Add to Cart
Chuck Size: 8"
Bar Capacity: 2"
Swing: 26.8"
Turning Diameter: 15.3"
Spindle Speed: 4,500 RPM
Control: MSG-805 Mitsubishi Control
Distance Between Centers: 19.5"

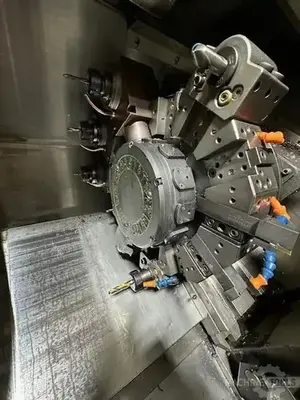

Turret: 12
Live Tooling: C-Axis Live Tooling
Chip Removal: Chip Conveyor
Z-Axis Travel: 19.5"
Milling Speeds: 4,000 RPM
Approx. Machine Dimensions: 92" x 74" x 73"
Approx. Machine Weight: 10,000 lbs
LNS Servo Load S3 Barfeeed: Auto Tool Presetter

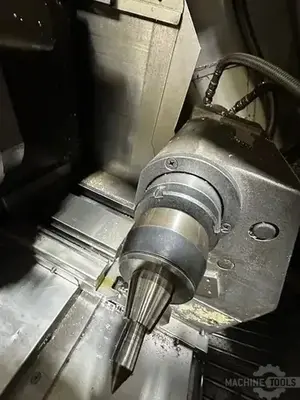

(6) Live Tool Holders Included: Tailstock
Parts Catcher
