Brand – BODOR Model – P4 Type – Laser Cutters Year – 2022 Condition – Used – Good
Sheet-W: 78.74″
Sheet-L: 157.48″
Wattage: 12000 w
IPM: 169 mpm
X: 157.48″
Y: 78.74″
Z: 12.402″
Dimensions: 12000*3700*2300mm
Weight: 11000kg
Control: CNC (Bodor Thinker 3.0)
Laser Power: 12,000 W (BodorPower source) Working Area (X/Y): 4000mm x 2000mm (approx. 157.5″ x 78.7″) Maximum Acceleration: 4.0G Maximum Linkage Speed: 200 m/min Positioning Accuracy: ±0.05mm Repeated Positioning Accuracy: 0.02mm – 0.03mm Table Load Capacity: 2500 kg Shuttle Table Time: 16 seconds Z-Axis Travel: 315mm

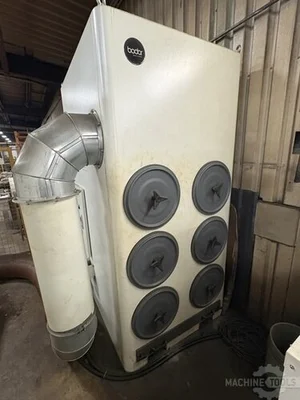

Dust collector 2 spare cutting heads Clean room
