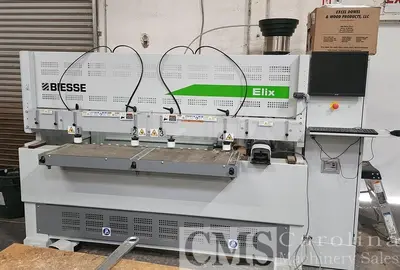

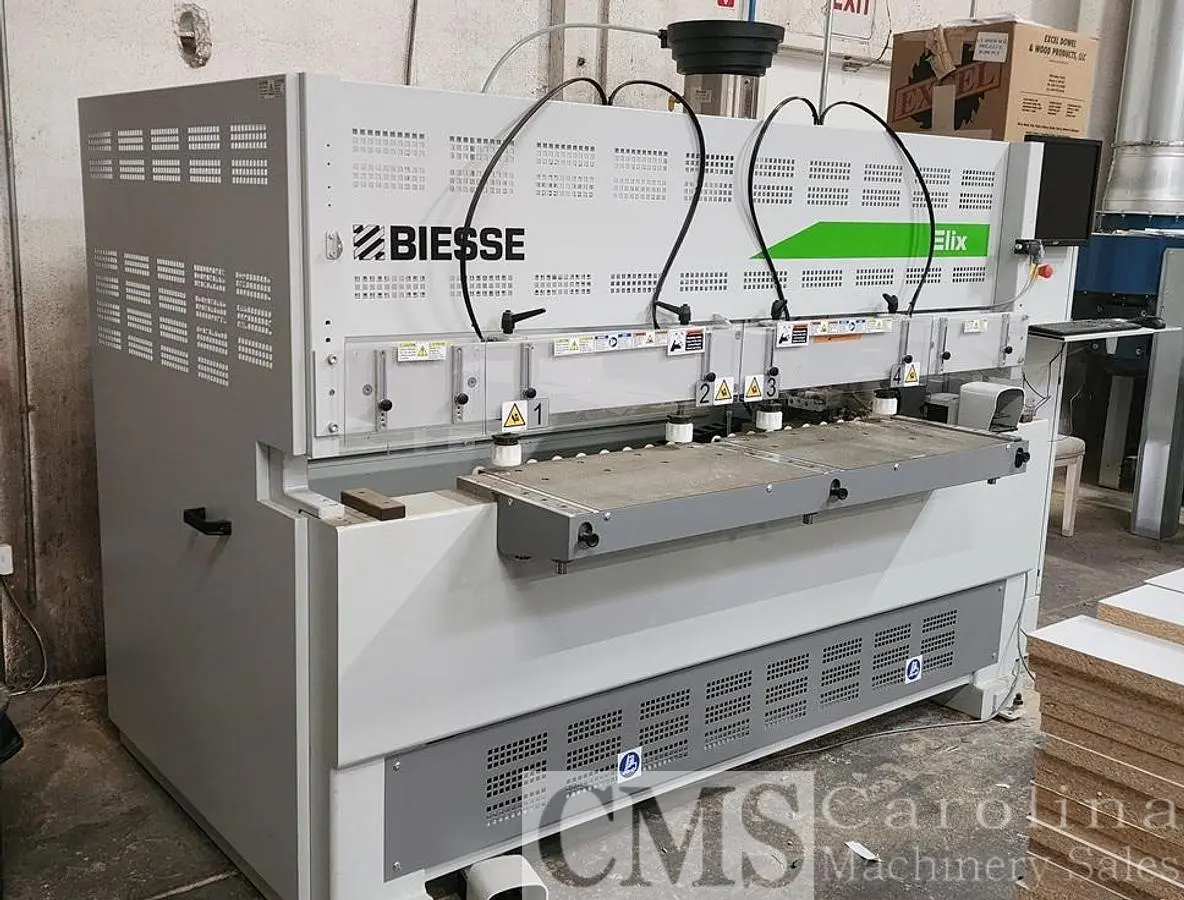

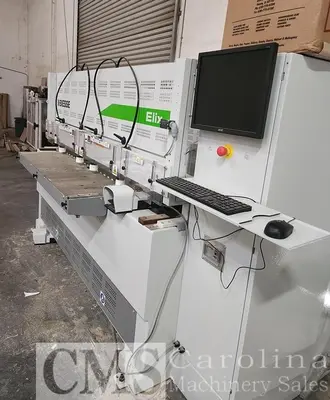

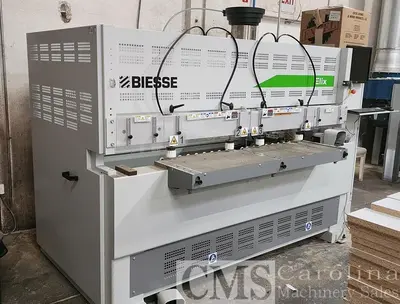

USED 2021 BIESSE ELIX K3 BORE & DOWEL MACHINE

Max. Width: 51.2″
Thickness: 0.4″ – 1.6″
Min. Depth: 4.7″
X Axis:51.2″
Head Movement Speed: 131.2 ft/min
Z Axis: 1.6″
Boring Unit:
Rotation Speed: 6000 rpm
Depth: 1.2″
Max. Bits Diameter: 0.47″
Modified Dowel Insertion Size: .19″ to .24″
Standard Dowel Insertion Unit:
Standard Dowel Dim: 0.31″ x 1.18″
Max. Dowel Projection: 0.55″
Glue System:
Glue Tank Capacity: 2.1 gallons
Max. Glue Density: 900 cps
Equipped With:
– The Smart-Shot Dowel Insertion Unit
– 2 Sensors to Prevent Dowel or Glue Misfire.
– Dowel Unloading System
– Glue Electronic Proportioning
– Glue Injector Sensor
