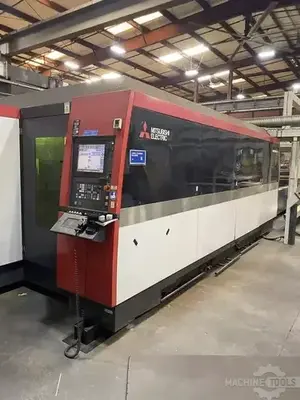

USED 2015 MITSUBISHI ML3015NX-F40
Overview
Description
5' x 10' 4kW CNC Fiber Laser
Specifications
| Wattage | 4000 w | 4,000 W |
|---|---|---|
| X | 126" | 3,200.4 mm |
| Y | 63" | 1,600.2 mm |
| Z | 4.7" | 119.38 mm |
Request a Quote
Add to Cart
Table Width: 5'
Table Length: 10'
Max Wattage: 4,000
X-Axis Travel: 125.98"
Y-Axis Travel: 62.99"
Z-Axis Travel: 4.7"
Control: Mitsubishi
Laser Type: Fiber
Machine Type: Flying Optic
Max. Workpiece Size: 60" X 120.1"
Table Pass Height: 34.6"
Rapid Travel Speed X/Y Single Axis: 4,724 Ipm
Rapid Travel Speed X/Y Simultaneous: 6,680 Ipm
Max. Processing Feedrate: 2,360 Ipm
Positioning Precision: 0.0019/20
Max. Cutting Thickness Mild Steel: 1"
Max. Cutting Thickness Stainless Steel: .50"
Max. Cutting Thickness Aluminum: .50"
Manual Door Access: Drive Type X/Y Axis Rack and Pinion Drive
Drive System Z Axis Precision Ball Screw: Intelligent Ac Servo Drive Motor Type
