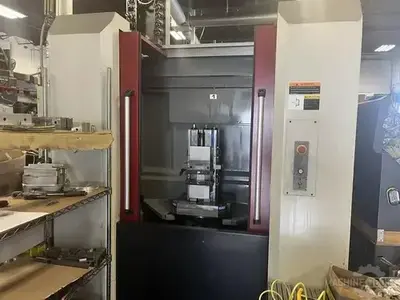

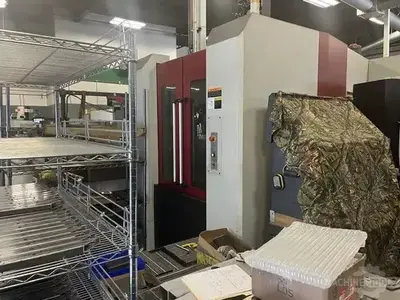

CNC Horizontal Machining Center
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 27" | 685.8 mm |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 3 | 3 |
Request a Quote
Add to Cart
Pallet Size (Millimeters): 400
Pallet Size: 15.75" x 15.75"
X-Axis Travel: 22.05"
Y-Axis Travel: 22.05"
Z-Axis Travel: 27.17"
Tool Magazine Capacity: 60 ATC
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40

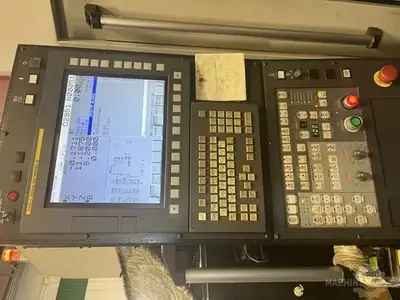

Control: Fanuc 31ib
Pallet Indexing: Full 4th Axis
Chip Removal: Chip Conveyor
Coolant: 1,000 PSI Coolant Through Spindle
Probes
