USED 2013 BRIDGEPORT/HARDINGE GX300

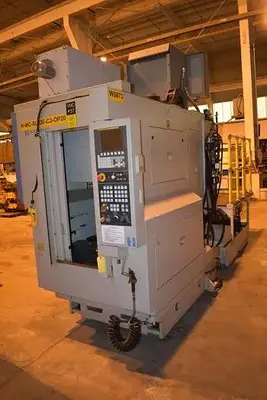

The GX-300 Bridgeport/Hardinge 4-axis CNC vertical machining center is engineered for high-value, complex parts manufacturing. Featuring a compact footprint to maximize floor space utilization, this machine is equipped with a FANUC OIMD CNC control and an RNA-160L Tsudakoma NC rotary table, enabling 4-axis simultaneous operation.

The vertical machining center offers X, Y, and Z-axis travels of 11.8", 15.8", and 16.9" respectively, with rapid traverse rates up to 1181 IPM. It features a robust 20 HP spindle motor, achieving speeds from 0 to 7083 RPM via a CT40 taper. Tool management is handled by a 20-position bi-directional automatic tool changer. The working surface of the table measures 15.8" x 23.6" with a load capacity of 396 lbs. Essential supporting equipment includes thru-spindle coolant and a high-pressure coolant system with a chip conveyor. The overall machine dimensions are 57.09" L x 100.87" D x 93.35" H, with an approximate weight of 11,000 lbs.
