Panel Bending Machine
Request a Quote
Add to Cart
Max Bending Length: 149"
Max Bending Height: 8"

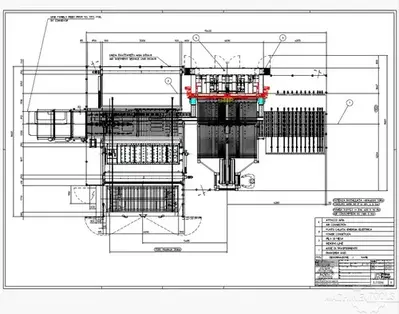

Note: See Photos for Panel Bending Specs
ALT Automatic Loading Device Set Up: ATC Automatic Tool Change TCS Version
Bending Turning Device: CLL for ATC Reversed Bending Sequence
Control Cabinet Cooler: High Speed Servo Motors
HTC Hydraulic Upper Tool Clamping: Last Negative Bend
Lifting Door for Continuous Production: Loading and Unloading System
Lower Tool Mounted on the Frame: Part Centering Device (Includes Folding Doors with Safety Lock)
PCD Connection: PCD8W Single Wagon
Programmable Crowning System of the Upper Tool and Bending Blade: Programmable Positioning Pins
Rigid Welded Frame: See Photos for Included Tooling
Servo Driven Upper Tool with Vertical Movement: Servo Motor Cooling Unit
Suction Cup Loading Lifter: Tilting Unloading Table
Unloading Conveyor for Bent Parts: Upper Bridge Clamp
UPS Control Battery Back Up: Brush Table Tops
