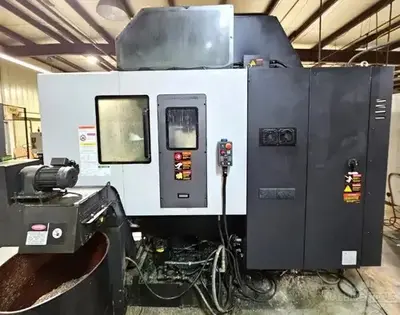

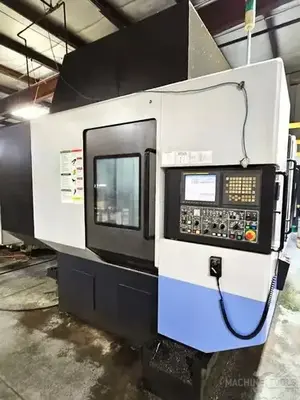

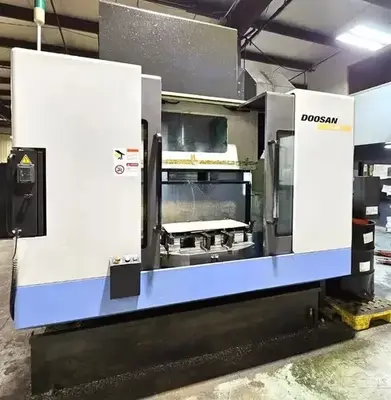

CNC Vertical Machining Center
| X | 29.9" | 759.46 mm |
| Y | 20" | 508 mm |
| Z | 22.4" | 568.96 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT40 | CAT40 |
| # Axis | 3 | 3 |
Request a Quote
Add to Cart
X-Axis Travel: 29.9"
Y-Axis Travel: 20"
Z-Axis Travel: 22.4"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Tool Magazine Capacity: 30 ATC

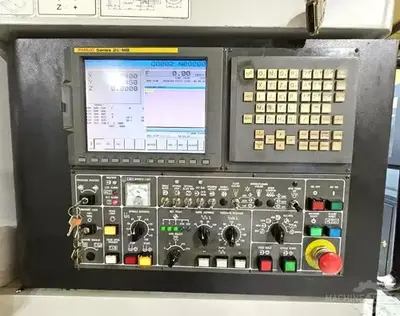

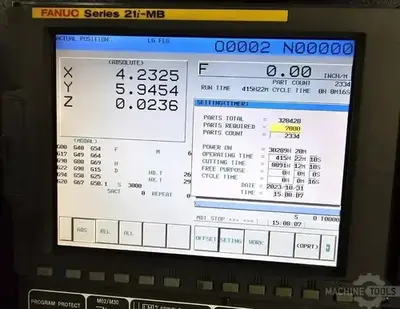

Control: Fanuc 21i-MB
Chip Removal: Side Discharge Chip Coveyor
Coolant: Through Spindle Coolant
Max Workpiece Weight: 660 Lbs

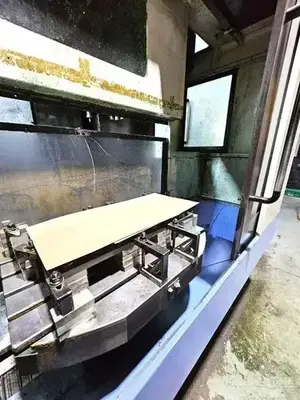

Pallet Changer 180 Degree Rotary Swivel: (2) Pallets
