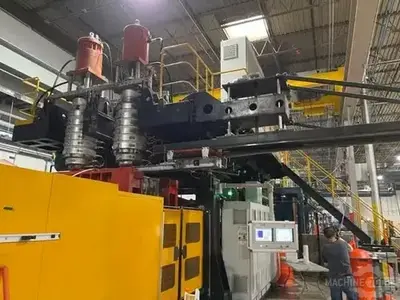

USED 2019 PET-ALL AH 1000L
Overview
Description
Blow Molder
Specifications
Request a Quote
Add to Cart
Type of Blow Molder: Accumulator Style
Number of Heads: 2
Head Center Spacing: 47"
Shot Size Capacity: 30 lb.
Platen Size: 98" W x 59" H
Mold Clamping Force: 359 Tons
Number of Extruders: (2) Two
Screw Size: 125 mm (4.92")
Screw / Barrel Material: Sacm645 Chrome Molybdenum Steel, Nitride, Polish Surface, Sacm645 Nitralloy, w/ Nitrogen Treatment, Hardness HRC
L/D Ratio: 35:1
Horsepower: 177 HP
Materials: HDPE, HMWHDPE
Thickness Controller: 100 Points Moog

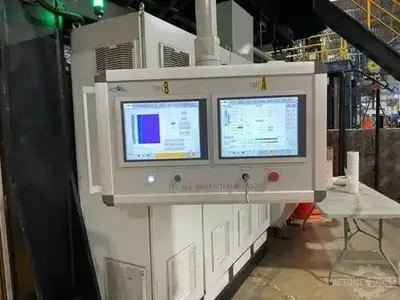

Control: Siemens
Electrical Requirements: 480v - 3 ph - 60
Head Tooling Included: 2 Sets 2”, 2 Sets 4”, 2 Sets 10”, 2 Sets 16”, (Round w/ No Shaping)
Lots Of Safety Features: Under Power for Inspections
Bottom Blow Station
