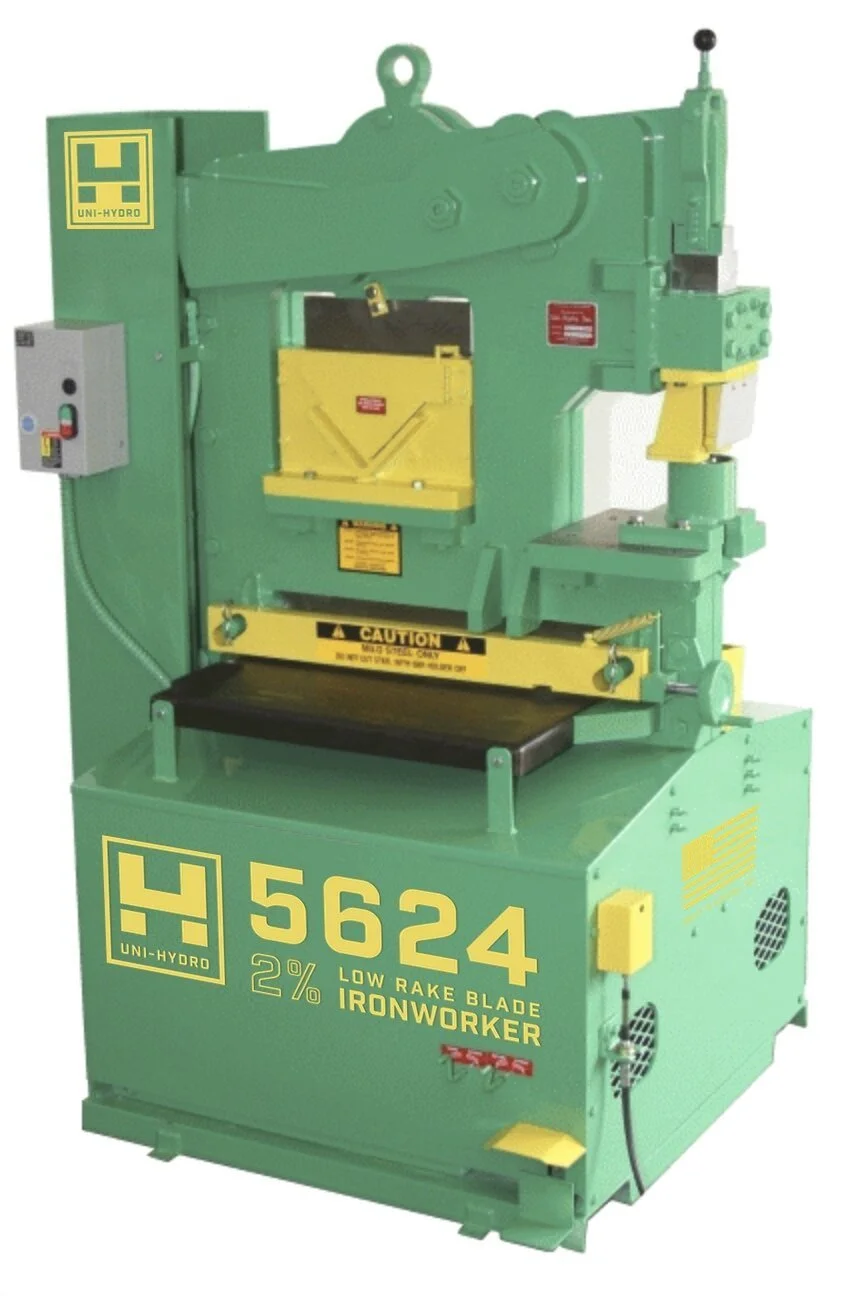

In building the 5624 Chuck Dvorak took up his own challenge to design a 1/2” x 24” flat bar shear that could achieve virtually perfect shearing, with a blade rake as close to zero degrees as possible. The result was the Uni-Hydro Model 5624, featuring a 2 degree low rake blade and the highest quality shear for any hydraulic ironworker that has ever been produced. No other hydraulic ironworker can match the 5624’s capability of shearing 1/2” x 24” on 2 degrees of rake, with such minimal distortion over 24”. This machine will do great in small fab, farm and sheet metal shops.
FEATURES:
- Manual Punch Aligner
- 9″ Open Throat Punch with 56-ton capability
- 24″ Bar Shear with Four Sided Blades, with 2 degrees of rake
- Bar Shear Hold-Down can be Fixed or Adjustable
- Full Up & Down Stroke Control
- Built for Forklift Handling
- Magnetic Starter for Safety & Reliability
- 1 Phase or 3 Phase Motor
| Tonnage | 56 T | 50.802 t |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.375" | 9.525 mm |
| Power | 5 hp | 5 hp |
| Throat | 9" | 228.6 mm |
| Dimensions | 37"W x 46"L x 70"H | 37"W x 46"L x 70"H |
| Weight | 2,700 lbs | 2,700 lbs |
