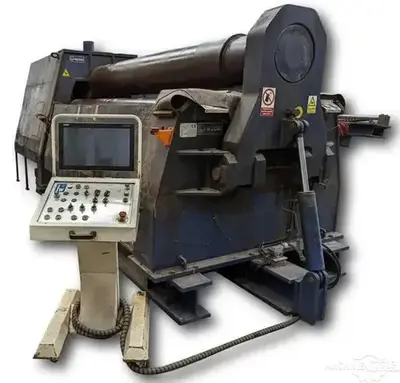

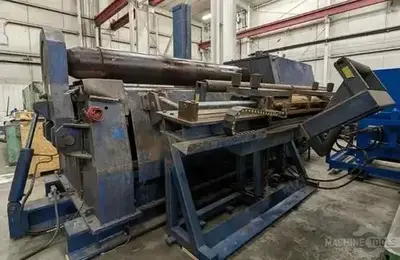

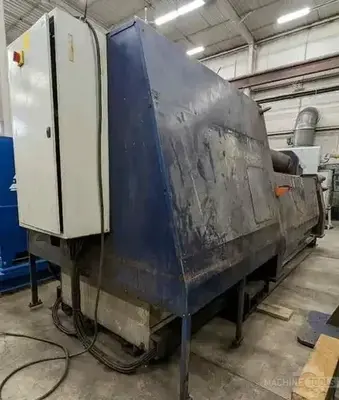

USED 2016 FACCIN 4HEL-3146
Overview
Four Roll Plate Roll
Specs
Request a Quote
Add to Cart
Maximum Plate Width: 120"
Top Roll Diameter: 18.11"
Lower Roll Diameter: 16.93"
Side Rolls Diameter: 13.39"
Bending Force on Top Roll: 441 Ton
Infinitely Variable Rotation Speed: 25 FPM
Rolling Power: 60 HP
Full-Length Capacity At 37.7 KSI: 1.42" Bending Thickness With 90.5" Inside Dia. / 1.18" Pre-Bend Thickness With 90.5" Inside Dia
Full-Length Capacity At 52.2 KSI: 1.22" Bending Thickness With 90.5" Inside Dia. / 0.95" Pre-Bend Thickness With 90.5" Inside Dia
Dimensions: 252" X 85" X 105"
Weight: 59,500 Lbs
4 Axis Clamping for Side Support: 4 Bearings Supporting Each Roll
Air-Oil Exchanger Upgrade: Centralized Pump Lubrication System
Cone Bending with Electronic Control: Designed to Accept Future Upgrades
Dual Linear Slide Sys for Rolls Translation: Electronic Balancing System for Roll Synch
Extra Torque & Special Braking Power System: Extra-Large Double Shaft Drop End
Hardened & Polished Rolls: High Precision and Productivity Package
Linear Slides: Micro-Positioning
Pressure Gauges for Pinch Roll Monitoring: Side Support

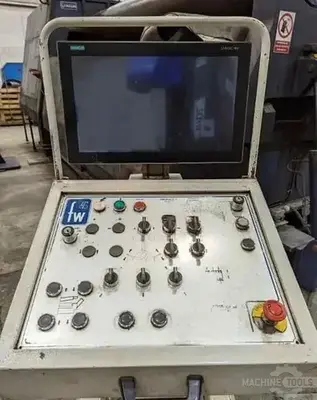

Safety Barrier with Emergency Stop: Siemens Pgs-Ultra CNC
Simultaneous Machine Movements: Top Roll Tilting with Hydraulic Drop End Opening
Ultra-Wide Roll Bearing Housings: Overhead Support
