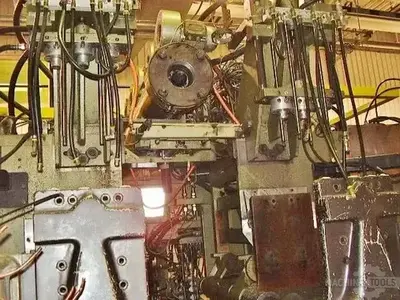

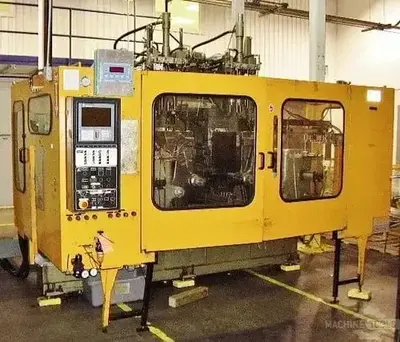

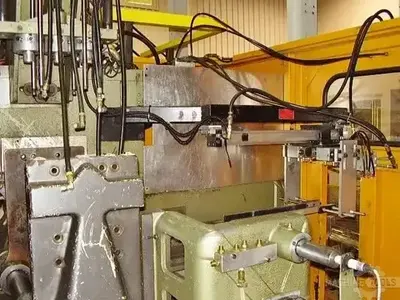

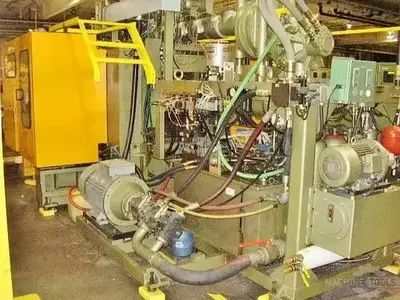

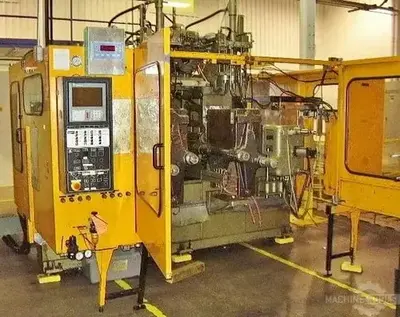

USED 1993 MAGIC MGL-5D

Blow Molder

Request a Quote
Add to Cart
Number Of Stations: 2

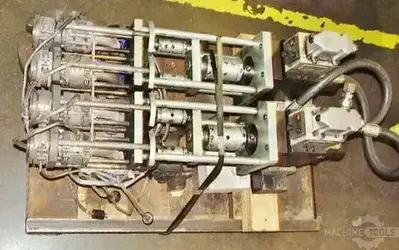

Number of Heads: 4 x 85mm PE (or) 3 x 115mm
Extruder: 90mm
L/D Ratio: 24:1
Extruder Horsepower: 60 HP Hydraulic Motor
Max Mold Size: 360 mm (w) x (2 x 100mm) Stack Height x 400 mm (h)
Max Daylight: 420mm
Opening Stroke: 210mm
Clamping Force: 60 KN
Clamp Hydraulic Drive: 40 HP
Dry Cycling: 1.8 sec
Machine Weight: 27,000 lbs
Note: Includes Loading onto Buyer's Truck
Manuals: Ladder & Platform
