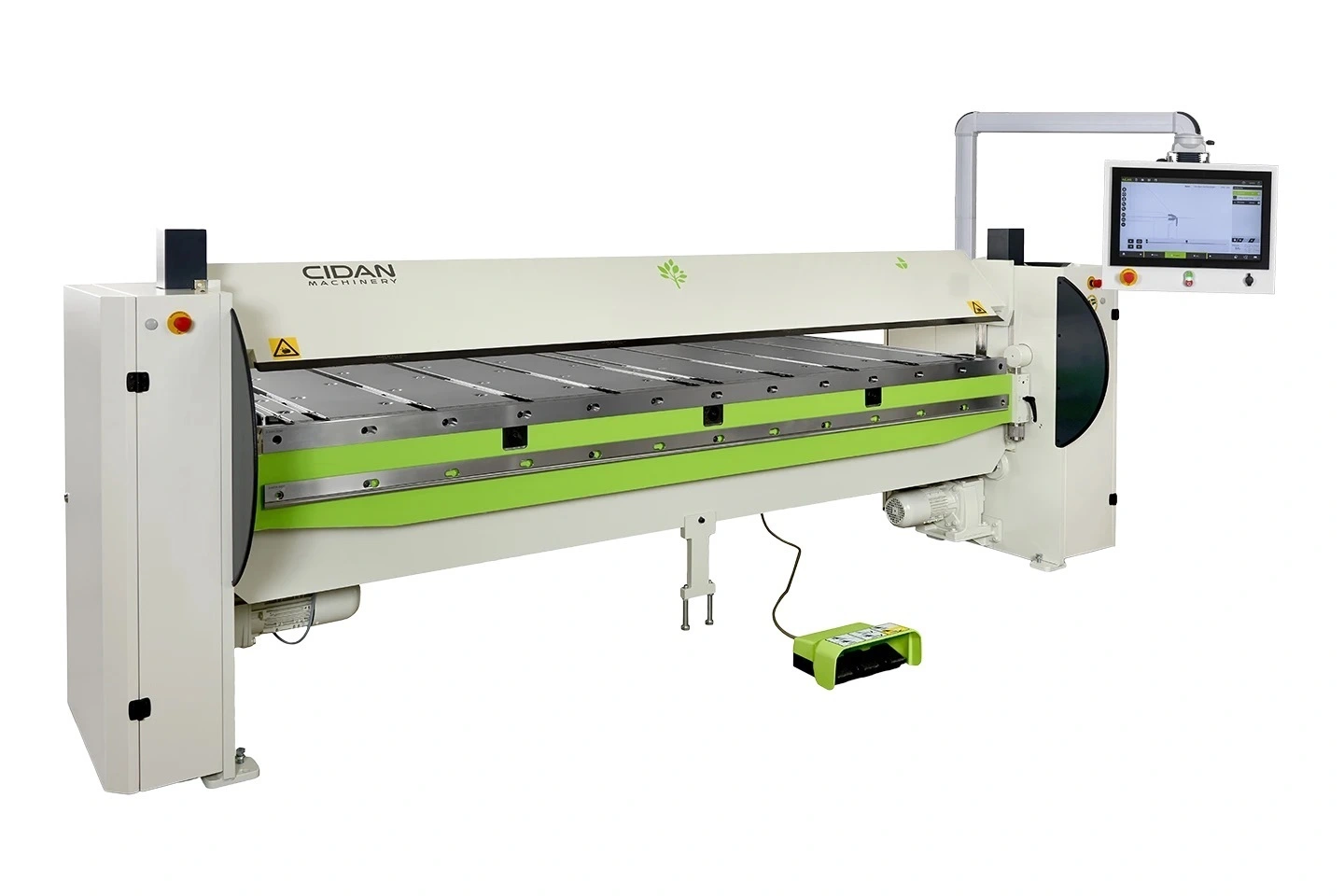

The CIDAN FS Series metal folding machine is easy to program, fast to run, and folds flawlessly. Built in a sturdy, all-welded construction, the FS Series metal folder is made for continuous running under the most demanding conditions. If you’re looking for a reliable machine adapted for folding all types of thinner materials, look no further than the FS Series.
| Max Thickness | 2 mm | 0.0787" |
| Max Thickness (gauge) | 14 gauge | 14 gauge |
| Overall Length | 161" | 4.1 m |
| Dimensions | 203" x 42' X 78" | 203" x 42' X 78" |
| Weight | 9038 | 9038 |
ProLink control, WITH 18.5” touch screen and graphics programming
40″ backgauge with 3 rows of 14 gauging fingers
Folding beam rails .275″ (7mm), .396″(10mm) and .787″ (20mm) equiped with bayonet quick change tooling
Tooling is made from 42CrMo4 steel, and coated with black oxide to prevent rust
Adjustable crowning of folding beam rail
Material thickness sensing on clamping beam
Eccentric clamping beam drive
Speed optimization-when folding beam comes down to 80 degrees, upper beam starts to come up
Solid lower beam, so when hemming you will not leave dimples on the part
2 year parts and labor warranty
