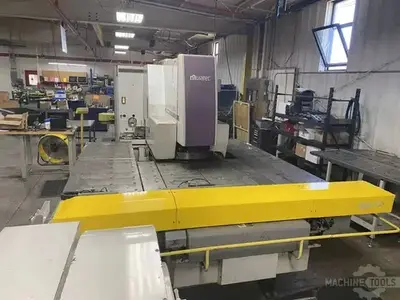

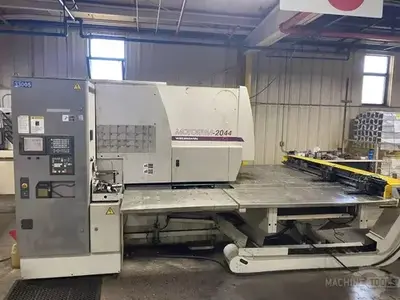

22 Ton Turret Punch
| Tonnage | 22 T | 19.958 t |
| # Turret Stations | 18 station | 18 station |
Request a Quote
Add to Cart
Capacity: 22 Ton
Sheet Width: 49"
Sheet Length: 49"
Turret Stations: 22
Throat Depth: 51.18"
Tooling Style: 114

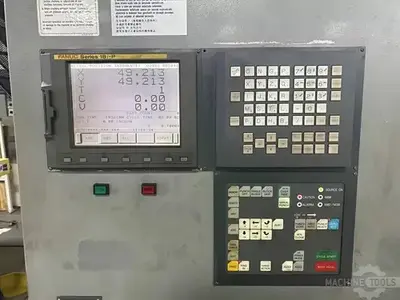

Control: Fanuc 18i-PB
Max Sheet Size (Without Repositioning): 49.21" x 49.21"
Max Sheet Thickness: 1/4"
Max Sheet Weight: 231 Lbs
Hits Rate @ .984" Pitch: 220 HPM
Hits Rate @ .39" Pitch: 600 HPM
Max Hole Diameter: 3.5"
X-Axis Speed: 2,953 IPM
Y-Axis Speed: 3,543 IPM
Approx. Machine Weight: 21,000 Lbs
(2) A/I Stations: Automatic Sheet Repositioning
