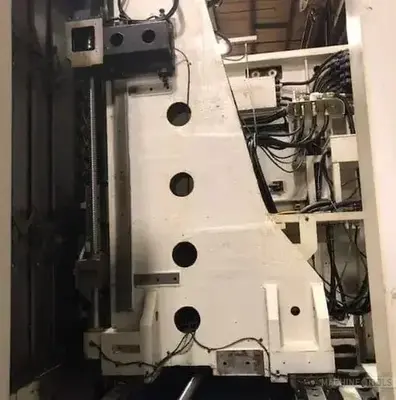

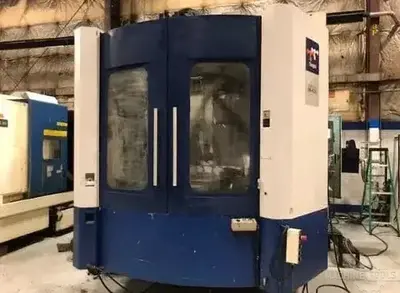

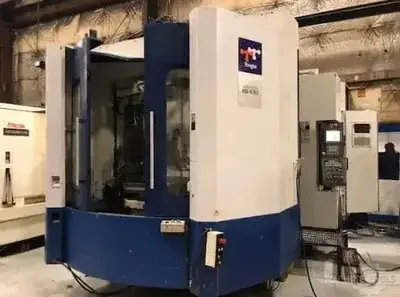

CNC Horizontal Machining Center
| X | 1,050 mm | 41.339" |
| Y | 850 mm | 33.465" |
| Z | 970 mm | 38.189" |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Taper | 7/24 Taper No.50 | 7/24 Taper No.50 |
| Pallet-W | 630 mm | 24.803" |
| Pallet-L | 630 mm | 24.803" |
Request a Quote
Add to Cart
Pallet Size (Millimeters): 630
Pallet Size: 24.8" x 24.8"
X-Axis Travel: 41.3"
Y-Axis Travel: 33.5"
Z-Axis Travel: 38.2"
Tool Magazine Capacity: 60 ATC
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
Control: Fanuc 31IMB
Pallet Indexing: Full 4th Axis
Coolant: Standard Coolant System
Max Pallet Load: 2,646 Lbs
5th & 6th Axis Fanuc Servo Drive Modules and Cabling: Extended Height Sheet Metal (Raising Max Part Height to 47.24″)
Separate Hydraulic Pkg for Clamp System
