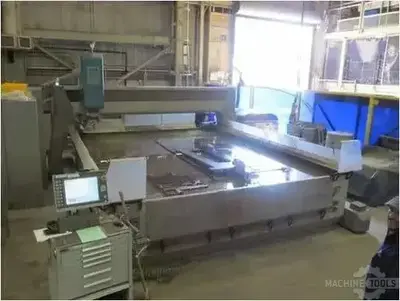

10.1' x 13.1' XD Head CNC Waterjet
| Pump Output | 94,000 PSI | 6,481.1 bar |
| Table Size-W | 9.8' | 2,987 mm |
| Table Size-L | 13.1' | 3,992.9 mm |
Request a Quote
Add to Cart
Table Width: 10.1'
Table Length: 13.1'
Control: Flowmaster
Pump: 100 HP
Max Cutting Pressure: 94,000 PSI
Power Requirement: 460-480/3/60
Rapid Traverse: 1400"/ Min.
Linear Straightness Accuracy: .001" / 3 Ft
Repeatability: .002"
100 Hp HYPER JET 94i-D Intensifier Pump: Solid State Soft Starter Motor Control
500lbs Abrasive Garnet Hopper W/ Low Level Warning: Flowmaster Roll Around PC Based Controller 15" Touch Screen
Full 5 Axis XD Cutting Head 3D Cutting: Fully Programmable 12" Z Axis
Gantry Style High Precision Waterjet: Import DXF/DWG/IGS/CADKEY/CDL/HPL Files
No G-Codes Required Flownest: Paser 4 Cutting Head
