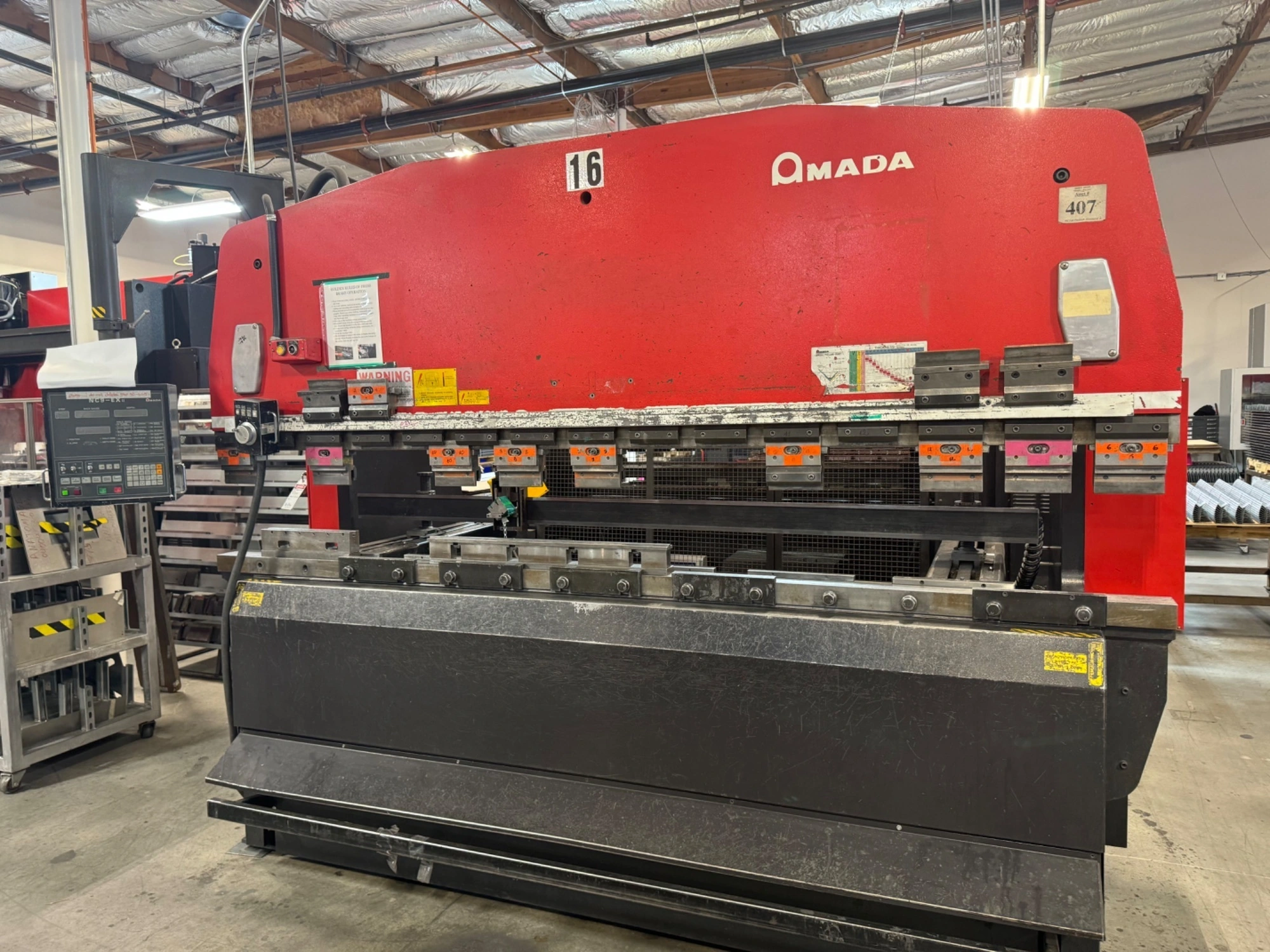

USED 1994 AMADA RG-100
Overview
Description
Amada RG-100, 110 Ton x 122” Hydraulic 3-Axis CNC Press Brake with NC-9EXII Controller (3 AXIS), Backgauge, Full Length Foot Treadle, Flush Floor Design, Finger Assemblies, Remote Hand Wheel
Specifications
| Tonnage | 110 T | 99.79 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 122" | 3.1 m |
| Between Housings | 8' | 2.4 m |
| Stroke | 3.93" | 99.822 mm |
| # Axis | 3 | 3 |
Brand - Amada
Year - 1994
Type - Hydraulic Press brake
Condition - Used
Tonnage - 100 Tons / US 110 Tons
Table length - 122.1"
Max bending length - 118.2"
Between housing - 100.5"
Stroke - 3.94"
Open height - 14.58"
Throat depth - 15.76”
Motor - 10 HP (230/460/3PH)
Machine dimensions 125"L x 65"D x 91”H
Machine weight 13,600 lbs
Equipped With
NC-9EXII Controller (3 AXIS)
Backgauge
Flush Floor Design
Finger Assemblies
Remote Hand Wheel
TERMS:
FOB San Jose. CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
