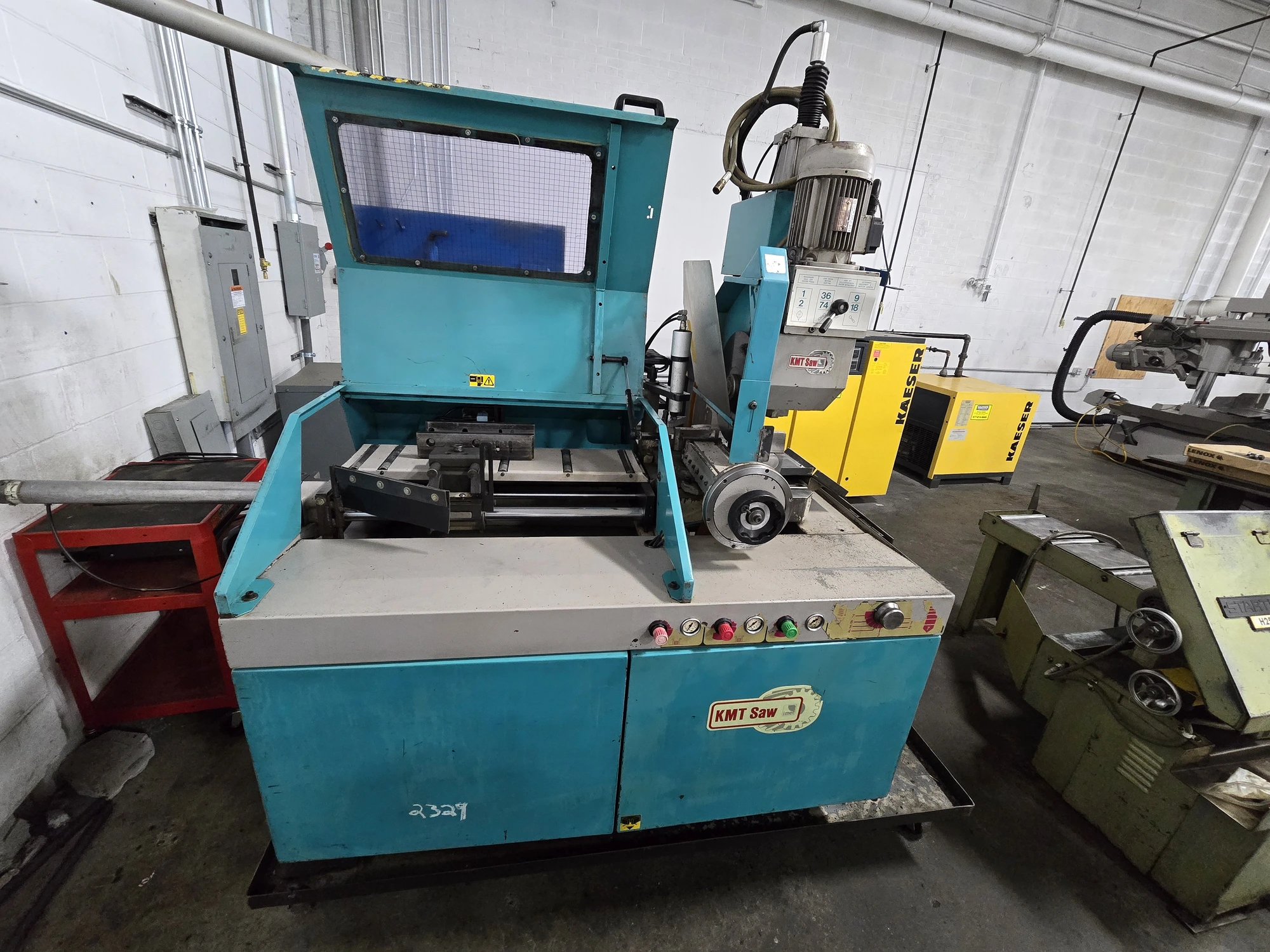

USED KALAMAZOO MACHINE TOOL C 370 A

Optimize your metal cutting with the Kalamazoo C 370 A Non-Ferrous Automatic Cold Saw. Achieve precision cuts with a variable blade speed of 13–89 RPM, cutting up to 4" round and 3.5"x7" rectangular. Powered by a 3HP motor and equipped with a full electronic control system.

The C 370 A is a rugged, heavy-duty vertical column circular sawing machine. Vertical column constructions provides extremely stable saw frame guidance and stability with vibration free sawing. Infinitely variable blade speeds offer flexibility to fine tune the settings for sawing even the most difficult materials. The C 370 A operators control is the easiest to use programmable saw control on the market

Specifications:

Capacity:

Round:

@ 90°: 4″

@ 45° Right: 4″

@ 45° Left: 4″

@ 60° Right: 4″

Square:

@ 90°: 4″

@ 45° Right: 4″

@ 45° Left: 4″

@ 60° Right: 3 1/2″

Rectangular:

@ 90°: 3.5″ x 7″

@ 45° Right: 4 3/4″ x 3 1/2″

@ 45° Left: 4 3/4″ x 3 1/2″

@ 60° Right: 3 1/2″ x 3 1/2″

Blade Speed: 13 – 89 RPM (Variable)

Blade Size: 12 1/2″ – 14 1/2″

Mounting: 40mm Arbor, with 2 Pins, 10mm on 63mm Bolt Circle

Motor: 3HP / 400v / 3ph

Standard Features:

Heavy Duty Drive

Rotary Blade Brush

Power Top Clamp Vise

Full Electronic Control/Information System

Height/Depth Cut Adjustments

Hydraulic Oil

Variable Clamping Pressure

Blade Speed Indicator

Disconnect Switch

Totally Enclosed Transmission

24 Volt Controls

HSS Sawblade

Full Coolant System

Operators Tools

All Safety Guards

Mechanical Specifications:

Dimensions: 98″ x 36″ x 64″ H

Weight: approx. 1,875 lbs.
